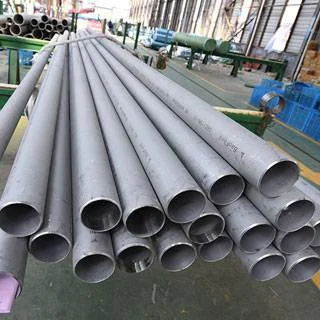

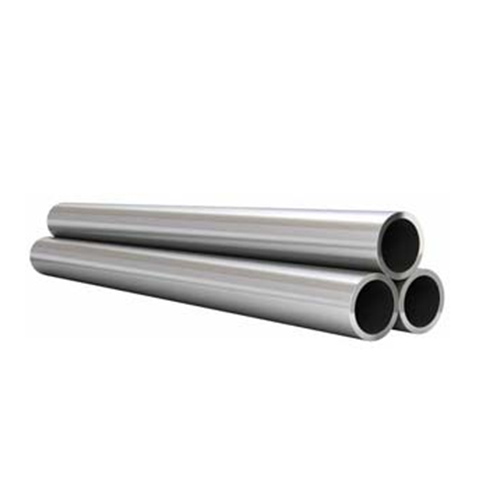

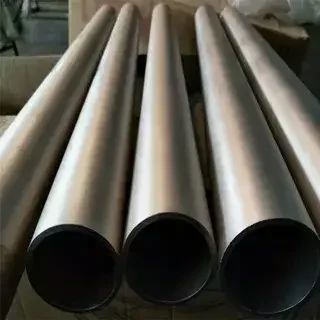

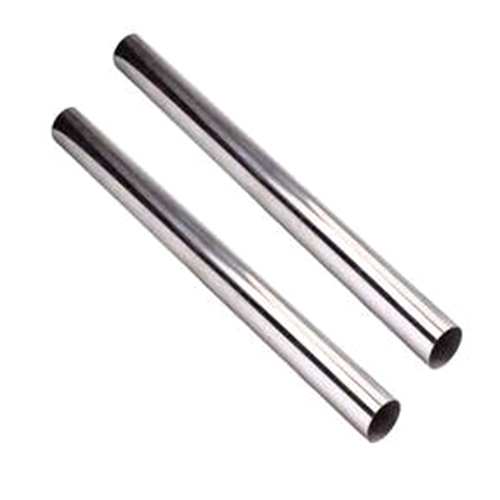

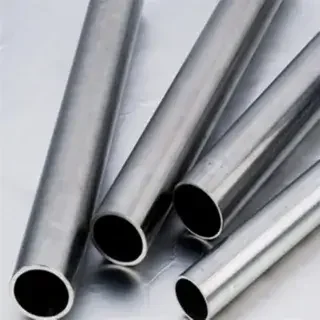

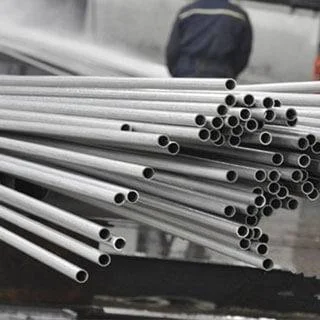

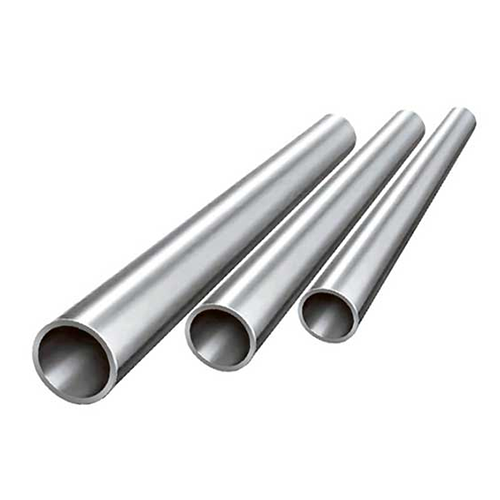

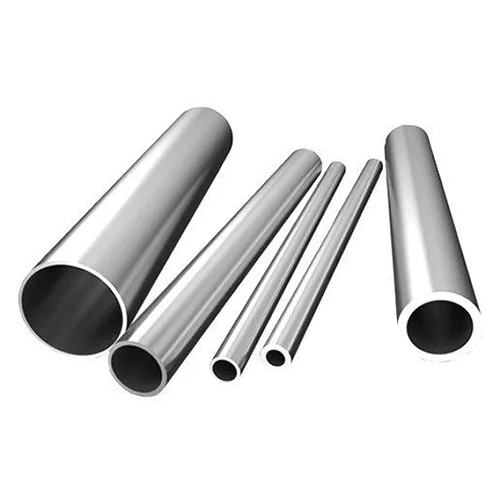

Alloy 20 pipes and tubes are made from the nickel iron chromium alloy UNS N08020, which was developed to resist the corrosive effects of sulfuric acid and other highly corrosive acid solutions which have a tendency to reduce the service life of standard piping. Kalpataru Piping Solution offers seamless or welded construction alloy 20 pipes / tube in half-inch to 24-inch NB, from SCH 20 to XXS constructed to ASTM B729 / ASME SB729. All orders for Alloy 20 pipe and tubes include all chemical composition data along with a mill test certificate, ensuring the alloy content and mechanical properties of the material before it arrives at your location. With these high levels of nickel and chromium, Alloy 20 pipe is a standard specification used throughout chemical processing, pharmaceutical manufacturing and food grade acid duty piping in sulfuric acid, phosphoric acid, nitric acid and chloride bearing process streams.
- Specifications
- Chemical Composition
- Mechanical Properties
- Equivalent Grades
- Schedule Chart
- Weight Chart
- Size Chart
- Pressure Rating Chart
Specification of Alloy 20 Pipes & Tubes
| Category | Details |
| Standard | ASTM B729, ASME SB729 (seamless); ASTM B464, B468 (welded) |
| Size Range | 1/2 inch to 24 inch NB |
| Schedule | SCH 20, 30, STD, 40, 60, XS, 80, 100, 120, 140, 160, XXS |
| Type | Seamless, ERW, EFW, Welded |
| Length | Single random, double random, custom cut |
| Ends | Plain end, beveled end, threaded |
| Form | Pipes, Tubes |
Chemical Composition of Alloy 20 (UNS N08020)
|
Element |
Ni |
Fe |
Cr |
Mo |
Cu |
Nb+Ta |
C |
Mn |
Si |
|
Composition % |
32-38 |
Balance |
19-21 |
2-3 |
3-4 |
8xC min, 1.00 max |
0.07 max |
2.00 max |
1.00 max |
Mechanical Properties of Alloy 20 Pipes & Tubes
|
Property |
Typical Value (Annealed) |
|
Tensile Strength |
80,000 psi (551 MPa) minimum |
|
Yield Strength (0.2% offset) |
35,000 psi (241 MPa) minimum |
|
Elongation |
30 percent minimum |
|
Hardness |
90 HRB maximum |
Equivalent Grades for 20 Alloy Pipe
STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
EN |
JIS |
BS |
GOST |
Alloy 20 |
N08020 |
2.4660 |
Z2NCUD31-20AZ |
NiCr20CuMo |
– |
– |
– |
Schedule Chart of Alloy 20 Pipes & Tubes
|
IPS (Nominal Size) |
Outside Diameter (OD) |
Available Schedules / Wall Thickness Notes |
|
1/8″ |
0.405″ |
SCH 40, 80 |
|
1/4″ |
0.540″ |
SCH 10, 40, 80 |
|
3/8″ |
0.675″ |
SCH 10, 40, 80 |
|
1/2″ |
0.840″ |
SCH 5, 10, 40, 80, 160, XXH |
|
3/4″ |
1.050″ |
SCH 10, 40, 80, 160, XXH |
|
1″ |
1.315″ |
SCH 5, 10, 40, 80, 160, XXH |
|
1-1/4″ |
1.660″ |
SCH 10, 40, 80, 160, XXH |
|
1-1/2″ |
1.900″ |
SCH 10, 40, 80, 160, XXH |
|
2″ |
2.375″ |
SCH 10, 40, 80, 160, XXH |
|
2-1/2″ |
2.875″ |
SCH 10, 40, 80, 160, XXH |
|
3″ |
3.500″ |
SCH 5, 10, 40, 80, 160, XXH |
|
3-1/2″ |
4.000″ |
SCH 10, 40, 80, 160, XXH |
|
4″ |
4.050″ |
SCH 10, 40, 80, 160, XXH |
|
5″ |
5.563″ |
SCH 10, 40, 80, 160, XXH |
|
6″ |
6.625″ |
SCH 5, 10, 40, 80, 120, 160, XXH |
|
8″ |
8.625″ |
SCH 5, 10, 40, 80, 120, 160, XXH |
|
10″ |
10.750″ |
SCH 10, 20, 40, 80 (0.500″), TRUE 80 (0.500″) |
|
12″ |
12.750″ |
SCH 10, 20, SCH 40 (0.375″), TRUE 40 (0.406″), SCH 80 (0.500″) |
|
14″ |
14.000″ |
SCH 10 (0.188″), SCH 40 (0.375″) |
|
16″ |
16.000″ |
SCH 10 (0.188″), SCH 40 (0.375″) |
|
18″ |
18.000″ |
SCH 40 (0.375″) |
Weight Chart of Alloy 20 Pipes & Tubes
|
NPS |
Outside Diameter |
Wall Thickness |
Schedule / Designation |
Weight (kg/m) |
Weight (lb/ft) |
|
1/2″ |
0.840 in (21.3 mm) |
0.109 in (2.77 mm) |
SCH 40 / STD |
1.27 |
0.85 |
|
0.147 in (3.73 mm) |
SCH 80 / XHY |
1.62 |
1.09 |
||
|
3/4″ |
1.050 in (26.7 mm) |
0.113 in (2.87 mm) |
SCH 40 / STD |
1.68 |
1.13 |
|
0.154 in (3.91 mm) |
SCH 80 / XHY |
2.20 |
1.47 |
||
|
1″ |
1.315 in (33.4 mm) |
0.133 in (3.38 mm) |
SCH 40 / STD |
2.50 |
1.68 |
|
0.179 in (4.55 mm) |
SCH 80 / XHY |
3.24 |
2.17 |
||
|
1 1/4″ |
1.660 in (42.2 mm) |
0.140 in (3.56 mm) |
SCH 40 / STD |
3.39 |
2.27 |
|
0.191 in (4.85 mm) |
SCH 80 / XHY |
4.47 |
3.00 |
||
|
1 1/2″ |
1.900 in (48.3 mm) |
0.145 in (3.68 mm) |
SCH 40 / STD |
4.05 |
2.72 |
|
0.200 in (5.08 mm) |
SCH 80 / XHY |
5.41 |
3.64 |
||
|
2″ |
2.375 in (60.3 mm) |
0.154 in (3.91 mm) |
SCH 40 / STD |
5.44 |
3.65 |
|
0.218 in (5.54 mm) |
SCH 80 / XHY |
7.48 |
5.02 |
||
|
2 1/2″ |
2.875 in (73.0 mm) |
0.203 in (5.16 mm) |
SCH 40 / STD |
8.63 |
5.79 |
|
0.276 in (7.01 mm) |
SCH 80 / XHY |
11.41 |
7.66 |
||
|
3″ |
3.500 in (88.9 mm) |
0.216 in (5.49 mm) |
SCH 40 / STD |
11.29 |
7.58 |
|
0.300 in (7.62 mm) |
SCH 80 / XHY |
15.27 |
10.25 |
||
|
4″ |
4.500 in (114.3 mm) |
0.237 in (6.02 mm) |
SCH 40 / STD |
16.07 |
10.79 |
|
0.337 in (8.56 mm) |
SCH 80 / XHY |
22.32 |
14.98 |
||
|
6″ |
6.625 in (168.3 mm) |
0.188 in (4.78 mm) |
SCH 10 |
19.25 |
12.92 |
|
0.203 in (5.16 mm) |
SCH 20 |
20.74 |
13.92 |
||
|
0.219 in (5.56 mm) |
SCH 30 |
22.32 |
14.98 |
||
|
0.250 in (6.35 mm) |
— |
25.35 |
17.00 |
||
|
0.280 in (7.11 mm) |
SCH 40 / STD |
28.26 |
18.97 |
||
|
0.312 in (7.92 mm) |
— |
31.33 |
21.01 |
||
|
0.375 in (9.53 mm) |
— |
37.28 |
25.00 |
||
|
0.432 in (10.97 mm) |
SCH 80 / XHY |
42.56 |
28.57 |
||
|
0.500 in (12.70 mm) |
— |
48.72 |
32.71 |
||
|
8″ |
8.625 in (219.1 mm) |
0.188 in (4.78 mm) |
SCH 10 |
25.23 |
16.94 |
|
0.203 in (5.16 mm) |
— |
27.20 |
18.26 |
||
|
0.219 in (5.56 mm) |
SCH 20 |
29.29 |
19.66 |
||
|
0.250 in (6.35 mm) |
SCH 30 |
33.31 |
22.36 |
||
|
0.277 in (7.04 mm) |
— |
36.79 |
24.70 |
||
|
0.322 in (8.18 mm) |
SCH 40 / STD |
42.55 |
28.55 |
||
|
0.375 in (9.53 mm) |
— |
49.22 |
33.04 |
||
|
0.406 in (10.31 mm) |
SCH 60 |
53.08 |
35.64 |
||
|
0.500 in (12.70 mm) |
SCH 80 / XHY |
64.63 |
43.39 |
||
|
10″ |
10.750 in (273.1 mm) |
0.188 in (4.78 mm) |
SCH 10 |
31.59 |
21.21 |
|
0.219 in (5.56 mm) |
— |
36.69 |
24.63 |
||
|
0.250 in (6.35 mm) |
SCH 20 |
41.76 |
28.00 |
||
|
0.307 in (7.80 mm) |
SCH 30 |
51.00 |
34.24 |
||
|
0.344 in (8.74 mm) |
— |
56.95 |
38.23 |
||
|
0.365 in (9.27 mm) |
SCH 40 / STD |
60.30 |
40.48 |
||
|
0.438 in (11.13 mm) |
SCH 60 |
71.85 |
48.24 |
||
|
0.500 in (12.70 mm) |
XHY |
81.53 |
54.74 |
||
|
0.594 in (15.09 mm) |
SCH 80 |
95.97 |
64.43 |
||
|
12″ |
12.750 in (323.9 mm) |
0.188 in (4.78 mm) |
SCH 10 |
37.57 |
25.22 |
|
0.219 in (5.56 mm) |
— |
43.66 |
29.31 |
||
|
0.250 in (6.35 mm) |
SCH 20 |
49.71 |
33.38 |
||
|
0.281 in (7.14 mm) |
— |
55.74 |
37.42 |
||
|
0.312 in (7.92 mm) |
SCH 30 |
61.73 |
41.45 |
||
|
0.375 in (9.53 mm) |
STD |
73.82 |
49.56 |
||
|
0.406 in (10.31 mm) |
SCH 40 |
79.73 |
53.53 |
||
|
0.500 in (12.70 mm) |
XHY |
97.44 |
65.42 |
||
|
0.562 in (14.28 mm) |
SCH 60 |
108.97 |
73.15 |
||
|
14″ |
14.000 in (355.6 mm) |
0.188 in (4.78 mm) |
SCH 10 |
41.31 |
27.73 |
|
0.219 in (5.56 mm) |
— |
48.01 |
32.23 |
||
|
0.250 in (6.35 mm) |
SCH 20 |
54.68 |
36.71 |
||
|
0.281 in (7.14 mm) |
— |
61.33 |
41.17 |
||
|
0.312 in (7.92 mm) |
SCH 30 |
67.94 |
45.61 |
||
|
0.375 in (9.53 mm) |
STD |
81.28 |
54.57 |
||
|
0.438 in (11.13 mm) |
SCH 40 |
94.45 |
63.44 |
||
|
0.500 in (12.70 mm) |
XHY |
107.38 |
72.09 |
||
|
0.625 in (15.88 mm) |
SCH 60 |
132.98 |
89.28 |
||
|
16″ |
16.000 in (406.4 mm) |
0.188 in (4.78 mm) |
SCH 10 |
47.29 |
31.75 |
|
0.219 in (5.56 mm) |
— |
54.98 |
36.91 |
||
|
0.250 in (6.35 mm) |
SCH 20 |
62.64 |
42.05 |
||
|
0.281 in (7.14 mm) |
— |
70.27 |
47.17 |
||
|
0.312 in (7.92 mm) |
SCH 30 |
77.87 |
52.28 |
||
|
0.344 in (8.74 mm) |
— |
85.68 |
57.52 |
||
|
0.375 in (9.53 mm) |
STD |
93.21 |
62.58 |
||
|
0.438 in (11.13 mm) |
— |
108.43 |
72.80 |
||
|
0.500 in (12.70 mm) |
SCH 40 / XHY |
123.30 |
82.77 |
||
|
18″ |
18.000 in (457.2 mm) |
0.219 in (5.56 mm) |
SCH 10 |
61.95 |
41.59 |
|
0.250 in (6.35 mm) |
SCH 20 |
70.06 |
47.39 |
||
|
0.281 in (7.14 mm) |
— |
79.21 |
53.18 |
||
|
0.312 in (7.92 mm) |
— |
87.79 |
58.94 |
||
|
0.375 in (9.53 mm) |
STD |
105.14 |
70.59 |
||
|
0.438 in (11.13 mm) |
SCH 30 |
122.37 |
82.15 |
||
|
0.500 in (12.70 mm) |
XHY |
139.02 |
93.05 |
||
|
0.562 in (14.28 mm) |
SCH 40 |
155.90 |
104.67 |
||
|
0.625 in (15.88 mm) |
— |
172.75 |
115.98 |
||
|
20″ |
20.000 in (508.0 mm) |
0.250 in (6.35 mm) |
SCH 10 |
78.55 |
52.73 |
|
0.282 in (7.16 mm) |
— |
88.46 |
59.39 |
||
|
0.312 in (7.92 mm) |
SCH 20 |
97.72 |
65.60 |
||
|
0.375 in (9.53 mm) |
STD |
117.08 |
78.60 |
||
|
0.438 in (11.13 mm) |
SCH 30 |
136.03 |
91.51 |
||
|
0.500 in (12.70 mm) |
XHY |
155.11 |
104.13 |
||
|
0.594 in (15.09 mm) |
SCH 40 |
183.04 |
123.11 |
||
|
0.625 in (15.88 mm) |
— |
192.64 |
129.33 |
||
|
0.688 in (17.48 mm) |
— |
211.04 |
141.90 |
||
|
24″ |
24.000 in (609.6 mm) |
0.250 in (6.35 mm) |
SCH 10 |
94.46 |
63.41 |
|
0.281 in (7.14 mm) |
— |
106.03 |
71.02 |
||
|
0.312 in (7.92 mm) |
SCH 20 |
117.57 |
78.93 |
||
|
0.375 in (9.53 mm) |
STD |
140.09 |
94.06 |
||
|
0.438 in (11.13 mm) |
— |
164.02 |
110.02 |
||
|
0.500 in (12.70 mm) |
XHY |
186.69 |
125.49 |
||
|
0.625 in (15.88 mm) |
— |
232.04 |
156.00 |
||
|
0.688 in (17.48 mm) |
SCH 40 |
255.01 |
171.03 |
||
|
0.750 in (19.05 mm) |
— |
277.04 |
186.02 |
||
|
30″ |
30.000 in (762.0 mm) |
0.250 in (6.35 mm) |
SCH 10 |
118.03 |
79.43 |
|
0.281 in (7.14 mm) |
— |
132.85 |
89.19 |
||
|
0.312 in (7.92 mm) |
— |
147.04 |
98.93 |
||
|
0.375 in (9.53 mm) |
STD |
176.07 |
118.65 |
||
|
0.438 in (11.13 mm) |
— |
205.10 |
138.03 |
||
|
0.500 in (12.70 mm) |
SCH 20 / XHY |
234.06 |
157.05 |
||
|
0.625 in (15.88 mm) |
SCH 30 |
292.01 |
196.01 |
||
|
0.688 in (17.48 mm) |
— |
320.08 |
215.04 |
||
|
0.750 in (19.05 mm) |
— |
348.10 |
234.03 |
||
|
36″ |
36.000 in (914.4 mm) |
0.250 in (6.35 mm) |
SCH 10 |
142.02 |
95.45 |
|
0.281 in (7.14 mm) |
— |
159.07 |
107.02 |
||
|
0.312 in (7.92 mm) |
— |
177.01 |
118.92 |
||
|
0.375 in (9.53 mm) |
STD |
215.05 |
142.07 |
||
|
0.438 in (11.13 mm) |
— |
247.08 |
166.04 |
||
|
0.500 in (12.70 mm) |
SCH 20 / XHY |
282.04 |
198.06 |
||
|
0.625 in (15.88 mm) |
— |
351.07 |
236.01 |
||
|
0.688 in (17.48 mm) |
— |
386.05 |
259.05 |
||
|
0.750 in (19.05 mm) |
— |
420.06 |
282.04 |
||
|
42″ |
42.000 in (1066.8 mm) |
0.312 in (7.92 mm) |
— |
206.09 |
138.09 |
|
0.375 in (9.53 mm) |
STD |
248.03 |
166.07 |
||
|
0.500 in (12.70 mm) |
XHY |
333.01 |
221.06 |
||
|
0.750 in (19.05 mm) |
— |
492.02 |
330.04 |
||
|
48″ |
48.000 in (1219.2 mm) |
0.375 in (9.53 mm) |
STD |
284.01 |
190.07 |
|
0.438 in (11.13 mm) |
— |
331.04 |
222.05 |
||
|
0.500 in (12.70 mm) |
XHY |
377.08 |
253.07 |
||
|
0.750 in (19.05 mm) |
— |
563.08 |
378.05 |
||
|
0.875 in (22.23 mm) |
— |
655.10 |
440.04 |
Size Chart of Alloy 20 Pipes & Tubes
|
Wall Thickness (in.) |
Outside Diameters Available (OD) |
|
0.010 |
1/16″, 1/8″, 3/16″ |
|
0.012 |
1/8″ |
|
0.016 |
1/8″, 3/16″ |
|
0.020 |
1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
|
0.028 |
1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
|
0.035 |
1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
|
0.049 |
3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
|
0.065 |
1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
|
0.083 |
1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″, 3″ |
|
0.095 |
1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
|
0.109 |
1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
|
0.120 |
1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
|
0.125 |
3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
|
0.134 |
1″ |
|
0.250 |
3″ |
|
0.375 |
3 1/2″ |
Pressure Rating Chart of Alloy 20 Pipes & Tubes
|
Pipe O.D. (In.) |
.028″ |
.035″ |
.049″ |
.065″ |
.083″ |
.095″ |
.109″ |
.120″ |
|
1/8″ |
7,900 |
10,100 |
— |
— |
— |
— |
— |
— |
|
1/4″ |
3,700 |
4,800 |
7,000 |
9,500 |
— |
— |
— |
— |
|
5/16″ |
— |
3,700 |
5,400 |
7,300 |
— |
— |
— |
— |
|
3/8″ |
— |
3,100 |
4,400 |
6,100 |
— |
— |
— |
— |
|
1/2″ |
— |
2,300 |
3,200 |
4,400 |
— |
— |
— |
— |
|
3/4″ |
— |
— |
2,200 |
3,000 |
4,000 |
4,600 |
— |
— |
|
1″ |
— |
— |
— |
2,200 |
2,900 |
3,400 |
3,900 |
4,300 |
Applications of Alloy 20 Pipes & Tubes
- Chemical Processing
- Pickling Equipment
- Pharmaceutical Manufacturing
- Explosives Production
- SO2 Scrubbers
- Heat Exchangers
- Food and Dye Production
Welding and Fabrication
Alloy 20 is stabilized with niobium, which resists carbide precipitation during welding, so it can be fabricated and field welded without post weld heat treatment in most cases. The recommended filler metal for gas tungsten arc and gas metal arc welding is AWS A5.14 ER320LR.
Testing and Documentation
Every Alloy 20 pipe and tube order ships with a mill test certificate to EN 10204 3.1. PMI testing and third-party inspection are available on request, covering chemical composition, mechanical properties, dimensional checks and hydrostatic testing before dispatch.
Frequently Asked Questions
What is Alloy 20 pipe used for?
Alloy 20 pipe is used wherever sulfuric acid resistance is the deciding factor: chemical processing, pharmaceutical manufacturing, explosives production, SO2 scrubbers, heat exchangers, and food and dye production.
What is the difference between Alloy 20 and 316L stainless steel?
Alloy 20 carries a much higher nickel content (32 to 38 percent versus 10 to 14 percent in 316L), which gives it far stronger resistance to sulfuric acid and chloride stress corrosion cracking. 316L is suited to general corrosion resistance and lower severity acid service.
What standards does Kalpataru's Alloy 20 pipe meet?
Our Alloy 20 pipe is manufactured to ASTM B729 and ASME SB729 for seamless pipe, and ASTM B464 and B468 for welded pipe, with full mill test certification on every order.
What documentation comes with an Alloy 20 pipe order?
Every order ships with a mill test certificate to EN 10204 3.1. PMI testing and third-party inspection are available on request.
Is there a minimum order quantity for Alloy 20 pipes?
We supply both stock sizes and custom cut lengths, so small trial orders and full container loads are both workable. Send your size and quantity for a quote.
Can Alloy 20 pipe be welded on site?
Yes. Alloy 20 is stabilized with niobium, which resists carbide precipitation during welding, so it can be fabricated and field welded without post weld heat treatment in most cases.
What sizes and schedules of Alloy 20 pipe are available?
We stock and manufacture Alloy 20 pipe from 1/2 inch to 24 inch NB, in schedules from SCH 20 through XXS, seamless and welded.
Does Alloy 20 resist chloride stress corrosion cracking?
Yes. The higher nickel content of Alloy 20 gives it high resistance to chloride stress corrosion cracking, a failure mode that regularly affects austenitic stainless steels like 316L.
Ready to order Alloy 20 pipes and tubes or need mill test certificates for an upcoming project?
Get in touch with Kalpataru Piping Solution today and our team will guide you through specification, pricing and delivery.
