Incoloy 800/ 800H/ 800HT Fasteners

Incoloy 800/ 800h/ 800ht werkstoff nr. 1.4876 / 1.4958 / 1.4859 Fasteners Manufacturer & Exporter.

ASTM B358 Incoloy 800 Fasteners Manufacturer, Exporter & Suppliers in India

ASME SB163 / SB358 / SB407 Incoloy UNS N08800/10/11 Fasteners Suppliers.

Introduction

Incoloy 800 / 800H / 800HT Fastenerskalpataru Piping is one of the leading Manufacturer, Supplier and Exporter of incoloy 800 Fasteners in india. Incoloy 800 Fasteners is a solid solution nickel chromium heat resisting alloy which gives outstanding performance at temperatures up to about 1200 Degree Celsius. incoloy UNS N06800 Fasteners also has good aqueous corrosion resistance due to the high nickel content in combination with chromium. WNR 2.4851 Fasteners have high strength and toughness and thus are retained during extended service at high temperature. incoloy 800 Fastener has outstanding resistance to high temperature oxidation. It resists oxidation and spalling at temperatures as high as 1260°C. The protective oxide coating resists scaling even under severe conditions, and the alloy 800 bolt also has good resistance to carburisation and nitridation. Its resistance to sulphur is poor and it should not be used in atmospheres containing sulphur, particularly reducing sulphur. incoloy 800 Bolt is qualified for use in pressure vessels . It is not pre qualified in AS1210. The incoloy Alloy 800 Fastener is available in the various forms including incoloy 800 eye bolt, incoloy 800 wing bolts, incoloy 800 U bolts, incoloy 800 flat head screws, incoloy 800 machine screws, incoloy 800 hex cap screws, incoloy 800 socket head cap screws, incoloy 800 hex nuts & incoloy 800 lock nuts etc. incoloy 800 studs and nuts has good high temperature strength and retains its ductility after long service exposure, with good corrosion resistance under oxidizing conditions. High tensile strength make incoloy 800 fasteners perfect for marine use. The most common type of incoloy 800 fastener, a incoloy 800 hex head bolt is designed to be tightened with a standard spanner or ratchet and socket. Our incoloy 800 metric nuts are designed to be used in conjunction with the equivalent sized metric incoloy 800 bolts, incoloy 800 screws and incoloy 800 washers. Hitesh Steel is a leading distributor of incoloy 800 aircraft fastening hardware for commercial and military aerospace applications. We offer a wide variety of high-quality aircraft hardware and parts in Alloy 800, that feature everything from Alloy 800 bolts to rivets to every small piece in-between. We widely offer high quality alloy 800 screws, incoloy 800 Full thread stud, incoloy 800 exhaust bolts, incoloy 800 turbo bolts, incoloy 800 Aerospace Bolts, incoloy 800 Stud Bolts, Alloy 800 Round Head Bolts, incoloy 800 Hex Cap Screw, incoloy 800 flat head cap screw, incoloy Alloy 800 socket head cap screw, incoloy 800 Spring Washer, incoloy 800 Flat Washer, incoloy 800 Nuts, incoloy 800 Heavy Hex Nuts, rivets, anchors, inserts, studs, threaded bars and hose clamps in India. Kalpataru Piping is offer incoloy 800 fasteners in any size, shapes, dimension etc as per customer requirement.

Grade Specification

Standard Incoloy 800 Incoloy 800H Incoloy 800HT
UNS N08800 N08810 N08811
WERKSTOFF NR. 1.4876 1.4958 / 1.4876 1.4859 / 1.4876
AFNOR Z8NC32-21 Z8NC33-21
JIS NCF 800 NCF 800H NCF 800HT
GOST ЭИ670 ЭИ670 ЭИ670
OR XH32T XH32T XH32T
EN X10NiCrAlTi32-20 X5NiCrAlTi31-20 X8NiCrAlTi32-21
BS NA 15 NA 15(H) NA 15(HT)

Specification:

Grades : Incoloy 800 – UNS N08800, Incoloy 800H / HT – UNS N08810/N08811
Standards : DIN, ASTM, BS and all International Standards
Specifications : ASTM B 160 / ASME SB 160
Size : M10 TO M100
Length : UPTO 1 METERS

Chemical Properties:

Incoloy 800 Ni Fe Cr Cu Ti Al C Mn S Si
30.0-35.0 39.5 min 19.0-23.0 .75 max .15-.60 .15-.60 .1 max 1.5 max .015 max 1.0 max
Incoloy 800H Ni Fe Cr Cu Ti Al C Mn S Si
30.0-35.0 39.5 min 19.0-23.0 .75 max .15-.60 .15-.60 .05-.10 max 1.5 max .015 max 1.0 max
Incoloy 800HT Ni Fe Cr Cu Ti Al C Mn S Si
30.0-35.0 39.5 min 19.0-23.0 .75 max .25-.60 .85-1.20 .06-.10 max 1.5 max .015 max 1.0 max

Mechanical Properties:

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Incoloy 800 7.94 g/cm3 1350-1400 ℃ 500 205 30 – 35 %
Incoloy 800H 7.94 g/cm3 1350-1400℃ 500 200 30 – 35 %
Incoloy 800HT 7.94 g/cm3 1350-1400℃ 500 200 30 – 35 %

Types Of Incoloy 800/800H/800HT Fasteners:

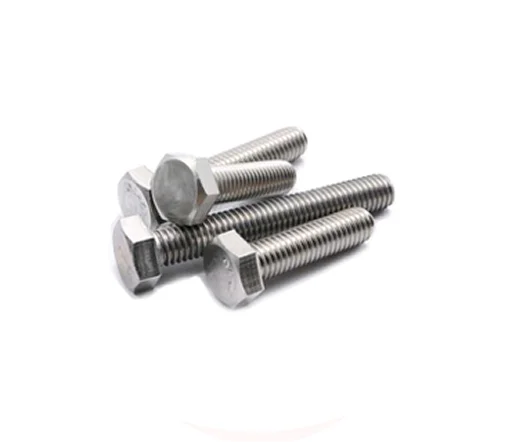

  • Inconel 800 Bolts
  • Inconel 800 Nuts

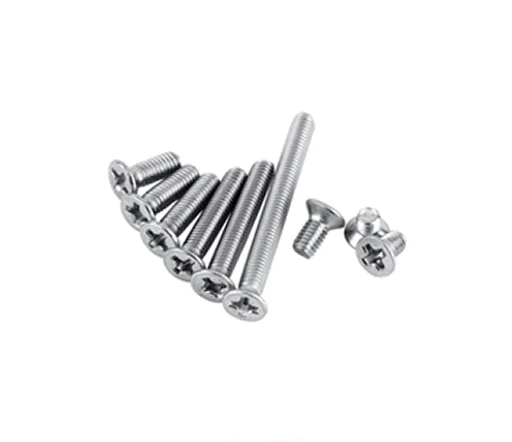

  • Inconel 800 Screws
  • Inconel 800 Sockets
  • Inconel 800 Studs
  • Inconel 800 Screw
  • Inconel 800 Hex Set Screw
  • Inconel 800 Socket Screw
  • Inconel 800 Cap Screw
  • Inconel 800 Pan Head Screw
  • Inconel 800 Machine Screw
  • Inconel 800 Socket Head Cap Screw
  • Inconel 800 Allen Cap screw
  • Inconel 800 Wing Screw

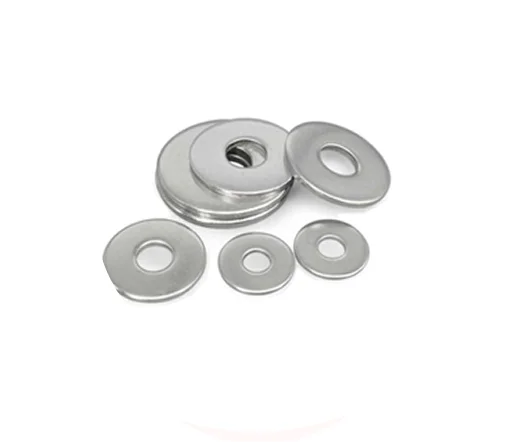

  • Inconel 800 Washers
  • Inconel 800 Spring Washers
  • Inconel 800 Studs
  • Inconel 800 Marine Anchors

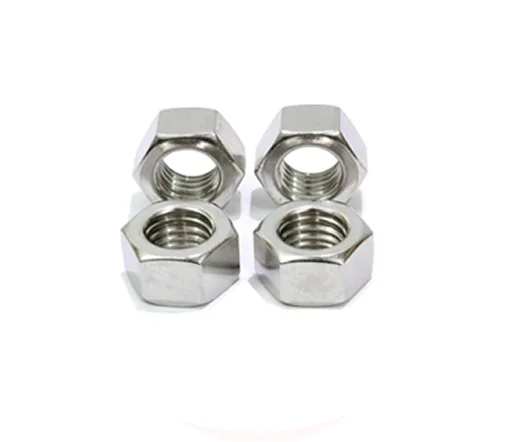

  • Inconel 800 Hexagon Nut
  • Inconel 800 Hex Nut
  • Inconel 800 Hex Coupling Nut
  • Inconel 800 Hex Domed Cap Nuts
  • Inconel 800 Square Nut

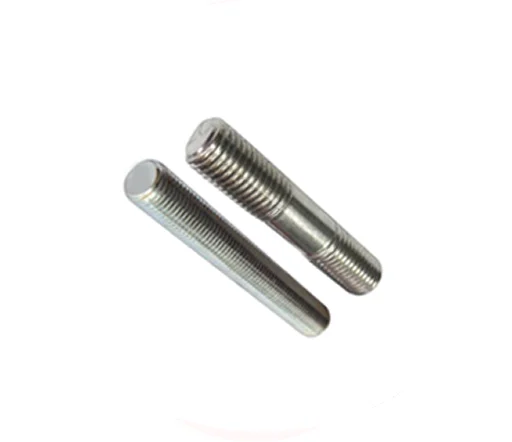

  • Inconel 800 Stud Bolts
  • Inconel 800 Hex Head Bolts

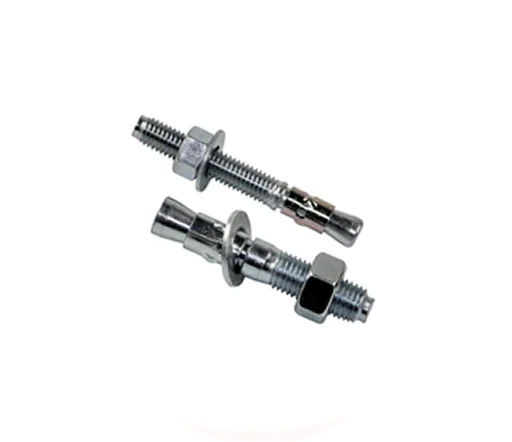

  • Inconel 800 Socket Hexagon Head Screw Anchor Bolt
  • Inconel 800 U- Bolts
  • Inconel 800 J Bolts
  • Inconel 800 Mushroom Head Square Neck Bolts
  • Inconel 800 T-Head Bolts
  • Inconel 800 Wing Screw
  • Inconel 800 Eye Bolt
  • Inconel 800 Foundation Bolts
  • Inconel 800 Structural Bolts
  • Inconel 800 Nut
  • Inconel 800 Anchors
