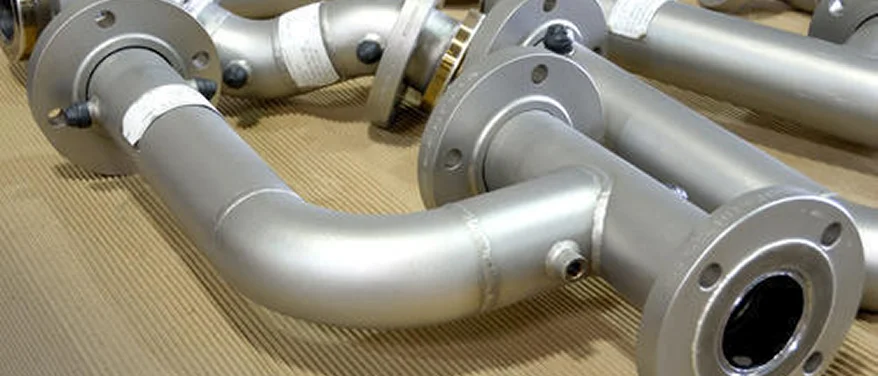

Inconel 625 Pipe Spools & Piping Spool Fabricator – UNS N06625
Inconel 625 Pipe Spools, Inconel Piping Spool and UNS N06625 Pipe Spool Fabricator, Manufacturer, Supplier and Exporter in India.
Table of Content
- Inconel 625 Pipe Spools Overview
- Inconel 625 Pipe Spools Specifications
- Types of Inconel 625 Pipe Spool
- Inconel 625 Spool Components & Fabrication Scope
- Inconel 625 Pipe Spools Equivalent Grades
- Inconel 625 Pipe Spool Fittings Chemical Composition (UNS N06625)
- Inconel 625 Pipe Spools Mechanical & Physical Properties
- Inconel 625 Pipe Spool Testing & Documentation
- Inconel 625 Pipe Spool Applications
- Inconel 625 Pipe Spools FAQ
Inconel 625 Pipe Spools Overview
Inconel 625 pipe spools and inconel piping spool assemblies are prefabricated corrosion-resistant piping units supplied by Kalpataru Piping for offshore, chemical and refinery installations. They are fabricated in UNS N06625 to ASTM B444 / ASME SB444 for the pipe components, making each alloy 625 spool fully traceable from raw material to finished assembly. Inconel 625 spool fabrication involves cutting, bevelling, welding and fitment of pipe, fittings and flanges to isometric drawings. Each uns n06625 pipe spool is dispatched ex-Mumbai within 3 to 6 weeks from order confirmation.
All spools include ndt testing (RT, UT, PT), hydro test, radiography reports and EN 10204 3.1 MTC. Primary spool components are Inconel 625 Pipes & Tubes and Inconel 625 Buttweld Fittings. Browse our full Inconel Products hub. Call 022-66337137 for a quote.
Inconel 625 Pipe Spools Specifications
| Pipe Standard | ASTM B444 / ASME SB444 (seamless and welded) |
| Fittings Standard | ASTM B366 / ASME SB366 |
| Flanges Standard | ASTM B564 / ASME SB564 |
| Fabrication Code | ASME B31.3 Process Piping |
| Grade | Inconel 625 (UNS N06625, W.Nr. 2.4856) |
| Size Range | 1/2 inch NB to 24 inch NB |
| Schedule | SCH 5S, SCH 10S, SCH 20, SCH 40S, SCH 80S, SCH 160 |
| Flange Rating | 150# to 2500# ANSI / ASME B16.5 |
| End Connections | BW, SW, Threaded, Flanged, Plain End |
Tip: Use the Kalpataru Piping Pipe & Tube Weight Calculator (https://kalpatarupiping.com/pipe-tube-weight-calculator/) to estimate spool pipe weights before enquiry.
Get an Inconel 625 Pipe Spool Quote Today
Need inconel 625 pipe spools or inconel piping spool fabricated to your isometric drawings? Kalpataru Piping delivers uns n06625 pipe spool assemblies with NDT, hydro test and EN 10204 3.1 MTC.
Request a Quote →Types of Inconel 625 Pipe Spool

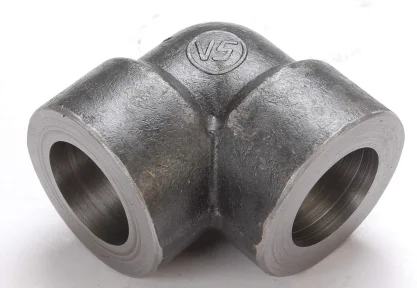

Socket Weld Elbow
Threaded Elbow
Inconel 625 Pipe Spools Overview
Inconel 625 pipe spools and inconel piping spool assemblies are prefabricated corrosion-resistant piping units supplied by Kalpataru Piping for offshore, chemical and refinery installations. They are fabricated in UNS N06625 to ASTM B444 / ASME SB444 for the pipe components, making each alloy 625 spool fully traceable from raw material to finished assembly. Inconel 625 spool fabrication involves cutting, bevelling, welding and fitment of pipe, fittings and flanges to isometric drawings. Each uns n06625 pipe spool is dispatched ex-Mumbai within 3 to 6 weeks from order confirmation.
All spools include ndt testing (RT, UT, PT), hydro test, radiography reports and EN 10204 3.1 MTC. Primary spool components are Inconel 625 Pipes & Tubes and Inconel 625 Buttweld Fittings. Browse our full Inconel Products hub. Call 022-66337137 for a quote.
Inconel 625 Pipe Spools Specifications
| Pipe Standard | ASTM B444 / ASME SB444 (seamless and welded) |
| Fittings Standard | ASTM B366 / ASME SB366 |
| Flanges Standard | ASTM B564 / ASME SB564 |
| Fabrication Code | ASME B31.3 Process Piping |
| Grade | Inconel 625 (UNS N06625, W.Nr. 2.4856) |
| Size Range | 1/2 inch NB to 24 inch NB |
| Schedule | SCH 5S, SCH 10S, SCH 20, SCH 40S, SCH 80S, SCH 160 |
| Flange Rating | 150# to 2500# ANSI / ASME B16.5 |
| End Connections | BW, SW, Threaded, Flanged, Plain End |
Tip: Use the Kalpataru Piping Pipe & Tube Weight Calculator (https://kalpatarupiping.com/pipe-tube-weight-calculator/) to estimate spool pipe weights before enquiry.
Inconel 625 Spool Components & Fabrication Scope
Each Inconel 625 piping spool is fabricated using ASTM B444 seamless pipe, ASTM B366 buttweld fittings and ASTM B564 flanges, all in UNS N06625. Spools are supplied with full weld maps and dimensional reports as part of our standard inconel 625 spool fabrication scope.
| Spool Component | Applicable Standard | Product Page |
| ASTM B444 Seamless / Welded Pipe | ASTM B444 / ASME SB444 | Inconel 625 Pipes & Tubes |
| ASTM B366 Buttweld Fittings | ASTM B366 / ASME SB366 | Inconel 625 Buttweld Fittings |
| ASTM B564 Flanges | ASTM B564 / ASME SB564 | Inconel 625 Flanges |
| ASTM B564 Forged Fittings (Olets) | ASTM B366 / MSS SP-97 | Inconel 625 Forged Fittings |
| Long Radius Bends | ASTM B444 / ASME B16.9 | Inconel 625 Long Radius Bends |
Fabrication scope includes: cutting to length, end preparation, fit-up, GTAW / GMAW root and fill passes, post-weld heat treatment where specified, NDE and pressure testing. All uns n06625 piping spool units are tagged to ISO drawing number, spool number and heat batch for field traceability.
Inconel 625 Pipe Spools Equivalent Grades
| Standard | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ChN75MBTYu | NC22DNB4M | NiCr22Mo9Nb |
Inconel 625 Pipe Spool Fittings Chemical Composition (UNS N06625)
| Element | Ni | Cr | Mo | Nb+Ta | Fe | C | Mn | Si | Al | Ti | Co | P | S |
| Inconel 625 | 58.0 min | 20.0 to 23.0 | 8.0 to 10.0 | 3.15 to 4.15 | 5.0 max | 0.10 max | 0.50 max | 0.50 max | 0.40 max | 0.40 max | 1.0 max | 0.015 max | 0.015 max |
Inconel 625 Pipe Spools Mechanical & Physical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| 8.4 g/cm3 | 1350 C (2460 F) | 930 MPa (135,000 psi) | 517 MPa (75,000 psi) | 42.5 % |
Inconel 625 Pipe Spool Testing & Documentation
All Inconel 625 pipe spools undergo NDT testing (RT, UT, PT, MT), hydro pressure testing and dimensional inspection before dispatch. Our standard inconel piping spool documentation package covers all inconel 625 spool ndt testing reports and inconel 625 spool hydro test certificates.
- Radiographic Testing (RT): 100% or spot RT on butt welds per ASME B31.3 / project specification.
- Ultrasonic Testing (UT): weld and base material UT to ASME Section V.
- Dye Penetrant Testing (PT): socket welds, fillet welds and branch connections.
- Hydrostatic Pressure Test: 1.5x design pressure per ASME B31.3 with hold time records.
- Dimensional Inspection: spool dimensions checked to isometric tolerance, reported on MIR.
- EN 10204 3.1 MTC: full material traceability from raw material mill certificate to finished spool tag.
- Third-Party Inspection (TPI): client-nominated agency inspection available at our Mumbai fabrication facility.
Inconel 625 Pipe Spool Applications
Inconel 625 spool offshore platforms are a primary end-use, where uns n06625 spool fabrication india offers procurement teams shorter lead times versus overseas fabricators. Inconel piping spool chemical plant installations in flue gas desulfurisation, acid handling and seawater lift systems benefit from the alloy’s resistance to pitting, crevice corrosion and stress-corrosion cracking up to 700 C. Additional applications include subsea wellheads, heat exchangers, power generation and naval vessels. For individual components see Inconel 625 Pipes & Tubes, Inconel 625 Buttweld Fittings and Inconel 625 Flanges
Inconel 625 Pipe Spools FAQ
What is an Inconel 625 pipe spool?
What testing is included with Inconel 625 pipe spools?
All Inconel 625 piping spools from Kalpataru Piping include: NDT testing (RT, UT, dye penetrant PT), hydro pressure testing, dimensional inspection report, weld map and EN 10204 3.1 MTC. Third-party inspection (TPI) by client-nominated agency is also available.
What standards apply to Inconel 625 pipe spool fabrication?
Inconel 625 pipe spools are fabricated to ASME B31.3 (Process Piping), with pipe to ASTM B444 / ASME SB444, fittings to ASTM B366 / ASME SB366, and flanges to ASTM B564 / ASME SB564, all in UNS N06625 / W.Nr. 2.4856.
Order Inconel 625 Pipe Spools from Kalpataru Piping
Kalpataru Piping fabricates inconel 625 pipe spools and inconel piping spools (UNS N06625, ASTM B444 / ASME SB444) with NDT, hydro test, weld maps and EN 10204 3.1 MTC, exported to 50+ countries.
