Monel Products – Manufacturer and Exporter from Mumbai
Supplier of Monel Pipes and Tubes, Monel 400, Wholesaler of Monel Products, Monel k500 Grades Products, Manufacturer of Monel Products in India.
Monel Round Bar Suppliers, Monel Metal Exporter, Monel 400 Valves Suppliers, Trader of Monel Products, Monel Material Stockist In Mumbai, India.

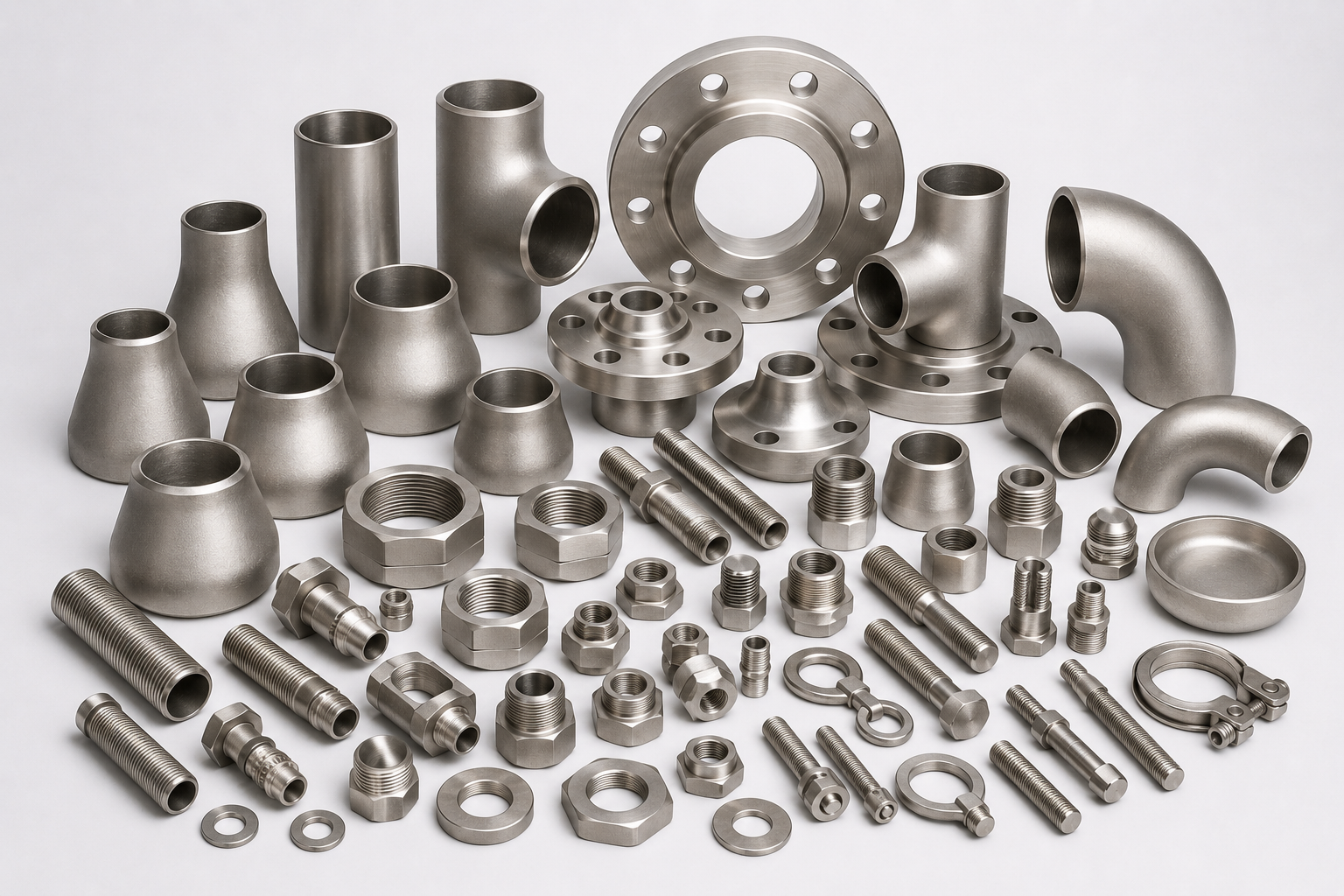

Kalpataru Piping Solutions is a Manufacturer and Supplier of Grade 400 and K500 Products which include Monel Pipes, Tubes, Flanges, Bars, Sheets, Fittings, and Wires. Kalpataru Piping Solutions supply their products to various International Countries USA, UK, UAE, and Many European Countries in the list.
About Monel and its Uses
Monel is a group of nickel alloys, primarily composed of nickel (up to 67%) and copper, with small amounts of iron, manganese, carbon, and silicon. Monel alloys are known for their high strength and corrosion resistance, making them ideal for use in harsh environments such as marine applications, chemical processing, and aerospace industries.
Monel products are used in a wide range of industries, including oil and gas, chemical processing, marine engineering, and aerospace. Grade 400 and K500 Monel alloys are particularly suitable for applications in seawater environments due to their excellent resistance to corrosion and erosion.
Properties of Monel
A single-phase, a solid-solution binary alloy called monel has excellent mechanical characteristics even at temperatures below zero Fahrenheit. The Poisson ratio of monel alloy 400 is 0.32, and its specific gravity is 8.80. Between 1300 and 1350 °C, it can dissolve. The table below displays the Monel Alloy 400 material’s characteristics at room temperature.
| Form | Condition | Tensile Strength (ksi) | Yield Strength (ksi) | % Elongation | Brinell hardness | Rockwell B Hardness | Tensile Strength (Mpa) | Yield Strength (Mpa) |
| Rod and Bar | Annealed | 75-90 | 25-50 | 60-35 | 110-149 | 60-80 | 517-620 | 172-345 |
| Rod and Bar |
Hot-Finished (except Hexagons over 2 1/8 inches and Angles) |
80-110 | 40-100 | 60-30 | 140-241 | 75-100 | 552-758 | 276-690 |
| Rod and Bar |
Hot-Finished Hexagons over 2 1/8 inches and Angles |
75-100 | 30-55 | 50-30 | 130-184 | 72-90 | 517-690 | 207-379 |
| Rod and Bar | Cold-Drawn, Stress-Relieved | 84-120 | 55-100 | 40-22 | 160-225 | 85-20C | 579-827 | 379-690 |
| Plate | Hot Rolled | 75-95 | 40-75 | 45-30 | 125-215 | 70-96 | 517-655 | 276-517 |
| Plate | Hot Rolled, Annealed | 70-85 | 28-50 | 50-35 | 110-140 | 60-76 | 482-586 | 193-345 |
| Sheet | Annealed | 70-85 | 30-45 | 45-35 | 65-80 | 482-586 | 207-310 | |
| Sheet | Cold Rolled, hard | 100-120 | 90-110 | 15-02 | Min. 93 | 690-827 | 621-758 | |
| Cold Rolled Strip | Annealed | 70-85 | 25-45 | 55-35 | Max. 68 | 482-586 | 172-310 | |
| Cold Rolled Strip | Spring Temper | 100-140 | 90-130 | 15-02 | Min. 98 | 690-965 | 621-896 | |
| Seamless pipe and tube | Cold Drawn, Annealed | 70-85 | 25-45 | 50-35 | Max 75 | 482-586 | 172-310 | |
| Seamless pipe and tube | Cold Drawn, Stress Relieved | 100-140 | 55-100 | 35-15 | 85-100 | 586-827 | 379-690 | |
| Cold Drawn Wire | Annealed | 70-95 | 30-55 | 45-25 | 482-655 |
At room temperature, the mechanical properties of Monel 400 are:
Machinability – Monel is extremely difficult to machine because it becomes harder as it is handled. Working with Monel can be done using the same techniques as working with iron.
Welding – Gas arc, gas-metal arc, metal arc, and submerged arc welding are the finest methods for joining Monel.
Forging – Only under specific circumstances is monel forgeable.
Hot Working – The usual hot working temperature range for monel alloy is between 648 and 1176 °C (1200 and 2150 °F). Prior to starting heated labor, the ideal temperature must be selected.
Grades of Monel
|
Monel Grade/Trade Name |
ASTM/AISI Alloy Type |
UNS No. |
%Ni |
%Cu |
%Fe |
%Mn |
%Al |
%Ti |
%Si |
|
Monel 400 |
B 127/ B 164 |
N04400 |
Min. 63 |
28-34 |
Max 2.5 |
Max 2.0 |
|
|
Max 0.5 |
|
Monel 401 |
|
N04401 |
Min. 63 |
28-34 |
Max 2.5 |
Max 2.0 |
|
|
Max 0.5 |
|
Monel 404 |
|
N04404 |
52-57 |
Remaining |
Max 0.5 |
Max 0.1 |
Max 0.05 |
|
Max 0.1 |
|
Monel 405 |
B 164 |
N04405 |
Min. 63 |
28-34 |
Max 2.5 |
Max 2.0 |
|
|
Max 0.5 |
|
Monel K500 |
B 865 |
N05500 |
Min. 63 |
27-33 |
Max 2.0 |
Max 1.5 |
2.3-3.15 |
0.35-0.85 |
Kalpataru Piping Solutions offers competitive pricing for its Monel products. They have a transparent pricing policy and provide upfront pricing information to their customers. They also offer discounts on bulk orders, making it cost-effective for customers to purchase Monel products from Us.
