What is the difference between Incoloy 800, 800H, and 800HT pipes?

The base grade is Incoloy 800 (UNS N08800). Incoloy 800H (UNS N08810) controls the carbon content (0.05-0.10) and the grain size larger (ASTM No. 5 or larger) to enhance the creep and rupture strength at temperatures above 600 °C. Incoloy 800HT (UNS N08811) contains further limits on the amount of aluminum and titanium, which enhances further creep resistance to 1100°C. Incoloy 800H and 800HT seamless pipes are preferred when used as a petrochemical furnace.

Are Incoloy 825 pipes suitable for sulfuric acid service?

Yes, the Incoloy 825 pipes (ASTM B423 / UNS N08825) are designed for sulfuric acid and phosphoric acid pipes. The supplement of copper (1.5-3.0%), molybdenum (2.5-3.5%) offers outstanding protection against the corrosive acids. Incoloy 825 non-seamless pipes are very common in chemical processing plants, acid plants, and pickling.

Do you stock Incoloy pipes in Mumbai for immediate delivery?

Yes, we have in stock ready Incoloy 800, 800H, and 825 seamless pipes in regular sizes between 1/2" and 8" NB in schedules 10, 40, and 80 as major producer of Incoloy pipes in Mumbai. The local needs will be covered with the same-day delivery of the products, and the national needs will be covered with 2-3 days delivery to all parts of India, as our warehouse is located in Mumbai.

What is the maximum operating temperature for Incoloy 800HT seamless pipes?

Incoloy 800HT pipes (UNS N08811) are produced to be used continuously in oxygen-bearing environments up to temperatures of 1100 °C (2000 °F). They maintain high tensile and creep-rupture strength, which makes them suitable in petrochemical cracking furnaces, in heat treatment retorts, and nuclear superheaters, where long-term high-temperature service is important.

What is the minimum order quantity for Incoloy pipes?

In the case of our stock items (Incoloy 800 and 825 seamless pipes in standard sizes), there is no lower order quantity - you can buy even a 6-meter length of the pipe. In case of non-standard sizes or a special grade, the MOQ normally begins at 500-1000 kgs depending on the specification. Get in touch with us due to the particular requirements.

Are your Incoloy 825 pipes NACE MR0175 compliant for sour service?

Yes, we have Incoloy 825 seamless pipes (ASTM B423) that is completely compliant with the NACE MR0175 / ISO 15156 requirements of sour service applications in the Oil and Gas industry. Our certificates are NACE compliance certificates with the material test reports. The pipes can be used in H2S environment, sour gas wells and offshore platforms.

What is the price of Incoloy 800 and 825 pipes in India?

The prices of Incoloy pipes depend on the grade (800/825), size, wall thickness, type of manufacturing (seamless/welded), and the number. Since we are a direct manufacturer in Mumbai, we present good rates. Incoloy 800 seamless pipes are now priced around 850-1200 per kg and Incoloy 825 pipes are priced around 950-1350 per kg based on specifications. Get in touch with us with your specific need, and we will present you the exact quotation on the updated Incoloy pipe price list.

Do you provide Mill Test Certificates (MTC) with EN 10204 3.1 for Incoloy pipes?

Yes, all our Incoloy pipes are supplied with original Mill Test Certificate (MTC) as per EN 10204 3.1 with chemical composition, mechanical property, details of heat treatment and heat number traceability. EN 10204 3.2 third-party witnessed certificates are also available on demand. Other papers are PMI test reports, NABL approved lab reports and material certificates.

Can you supply Incoloy pipes in custom lengths and non-standard sizes?

Yes, we are increasing custom Incoloy seamless pipes of non-standard size, special wall thickness, and cut lengths on a customer specification basis. We are able to make Incoloy 800 and 825 pipes in odd sizes such as 33mm OD, 48mm OD, or individual wall thickness not found in standard schedules. Custom manufacturing Lead time ranges are 4-6 weeks depending on complexity.

What is the difference between seamless and welded Incoloy pipes?

Incoloy seamless pipes are produced using solid round billets by hot extrusion or rotary piercing and therefore have an even wall thickness and no weld line. They have better pressure ratings and are chosen in applications that are very demanding. Incoloy welded (ERW) pipes are produced by rolling strips/plates of Incoloy, which are welded, which may be used in moderate pressure applications and come in larger sizes at a lower price. We are supplying both of these in ASTM B407 and B423.

Which industries use Incoloy 800 and 825 pipes?

Incoloy 800/800H/800HT pipes are widely applied in petrochemical refineries (furnace tubes, cracking units), power stations (superheaters, reheaters), nuclear plants (steam generators), and heat treatment equipment. Incoloy 825 pipes are used in chemical processing (sulfuric acid plant, phosphoric acid production), oil and gas (sour service, offshore platform, FGD system), and pharmaceutical production.

Do you export Incoloy pipes outside India?

Yes, we are a recorded Incoloy pipes exporter based in India with a long history in exporting to UAE, Saudi Arabia, Kuwait, Oman, Qatar, the USA, UK, Germany, Singapore, Malaysia, and 50+ countries. We also have entire export documentation such as commercial invoice, packing list, mill test certificates, certificate of origin, fumigation certificate, and third-party inspection reports as requested by the customers.

Home › Incoloy Products › Incoloy Pipes & Tubes

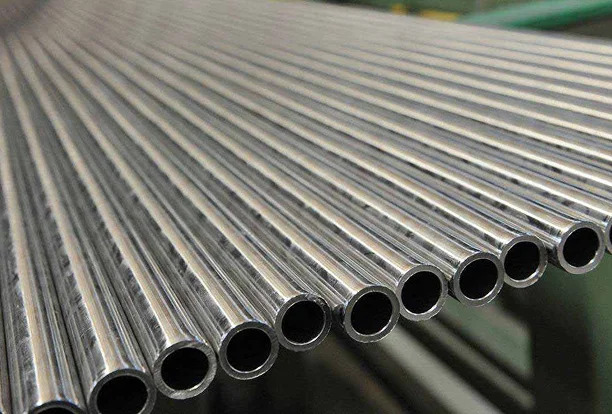

Incoloy Pipes and Tubes Supplier

Incoloy Pipes and Tubes Supplier Overview
Incoloy Pipes and Tubes Available Grades
Incoloy Pipes and Tubes Specifications
Incoloy Pipes Equivalent Grades
Incoloy Pipes and Tubes Chemical Composition
Incoloy Pipes Mechanical Properties
Industrial Applications of Incoloy Pipes and Tubes
Why Choose Kalpataru Piping for Incoloy Pipes and Tubes
Frequently Asked Questions

Kalpataru Piping is one of the major suppliers and exporters of Incoloy pipes and tubes in all major grades such as Incoloy 800, Incoloy 800H, Incoloy 800HT and d Incoloy 825 Pipes and Tubes. Our seamless and welded pipes are manufactured to ASTM B423, ASTM B407 and ASME SB423 standards and are used in various worldwide oil and gas, chemical processing, power generation and marine applications. Each grade also contains a high nickel content that provides excellent corrosion resistance in oxidizing and reducing environments to suit the toughest of service conditions. We carry a stock of all the common sizes and schedules. View our detailed specifications for each grade or check out our full range of Incoloy Products. Call us today and we’ll offer you competitive prices and swift delivery worldwide.

Incoloy Pipes and Tubes Available Grades

Grade	UNS No.	Grade-Specific Page	CTA Anchor Text
Incoloy 825	UNS N08825	/incoloy-825-seamless-pipes-tubes-supplier-exporters/	View Incoloy 825 Pipe Specifications
Incoloy 800	UNS N08800	/incoloy-800-800h-800ht-pipes-and-tubes/	Explore Incoloy 800 Pipe Sizes
Incoloy 800H	UNS N08810	/incoloy-800-800h-800ht-pipes-and-tubes/	Explore Incoloy 800H Pipe Sizes
Incoloy 800HT	UNS N08811	/incoloy-800-800h-800ht-pipes-and-tubes/	Explore Incoloy 800HT Pipe Sizes

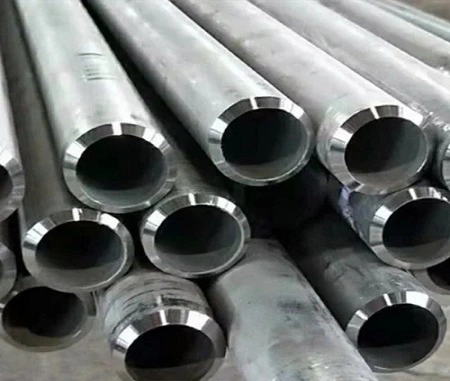

Incoloy 800 / 800H / 800HT Seamless Pipes

ASTM B407 / UNS N08800, N08810, N08811 – High-strength nickel-iron-chromium alloy with excellent resistance to oxidation, carburization and high-temperature corrosion up to 1100°C. Widely used in petrochemical furnace tubes, heat treatment equipment and nuclear applications.

View Specifications →

Incoloy 825 Seamless Pipes and Welded Tubes

Incoloy 825 Seamless Pipes & Welded Tubes

ASTM B423 / ASTM B705 / UNS N08825 – Nickel-iron-chromium alloy with molybdenum and copper additions. Provides superior resistance to sulfuric and phosphoric acids, stress-corrosion cracking and pitting. Fully compliant with NACE MR0175 for sour oil & gas service.

View Details →

Incoloy Pipes and Tubes Specifications

Parameter	Details
ASTM Standards (Seamless)	ASTM B423 (825) \| ASTM B407 (800, 800H, 800HT)
ASTM Standards (Welded)	ASTM B704, ASTM B705 (825) \| ASTM B514 (800 series)
ASME Standards	ASME SB423, ASME SB407, ASME SB514, ASME SB704
Pipe Size (NPS)	1/8 inch to 24 inch
Outer Diameter	6.35 mm to 609.60 mm
Wall Thickness	0.5 mm to 25 mm
Pipe Schedule	SCH 5 to SCH 160, XXS
Length	Single Random (SRL), Double Random (DRL), Fixed and Cut to Length
End Finish	Plain End (PE), Beveled End (BE), Threaded End (TE)
Surface Condition	Annealed and Pickled, Bright Annealed, Polished (2B, No.4, Mirror)

Looking for a Specific Size or Schedule? We stock Incoloy pipes from 6.35 mm to 609.60 mm OD across SCH 5 to XXS in all four grades. Get a tailored quote within 24 hours.

[Request a Quote]

Incoloy Pipes Equivalent Grades

Parameter	Details
ASTM Standards (Seamless)	ASTM B423 (825) \| ASTM B407 (800, 800H, 800HT)
ASTM Standards (Welded)	ASTM B704, ASTM B705 (825) \| ASTM B514 (800 series)
ASME Standards	ASME SB423, ASME SB407, ASME SB514, ASME SB704
Pipe Size (NPS)

Our Incoloy pipes are manufactured to comply with major international standards including ASTM, ASME, DIN, and JIS. Below is the cross-reference table for common grades.

Common Name	UNS (USA)	WERKSTOFF NR. (Germany)	DIN Designation	JIS (Japan)	BS (UK)
Incoloy 800	N08800	1.4876	X10NiCrAlTi32-20	NCF 800	NA 15
Incoloy 800H	N08810	1.4958	X5NiCrAlTi31-20	NCF 800H	NA 15H
Incoloy 800HT	N08811	1.4959	X8NiCrAlTi32-21	NCF 800HT	–
Incoloy 825	N08825	2.4858	NiCr21Mo	NCF 825	NA 16

Incoloy Pipes and Tubes Chemical Composition

The chemical makeup determines the performance of these superalloys. Incoloy 825, for instance, has higher Molybdenum and Copper content for acid resistance.

Grade	Ni	Cr	Fe	C	Mn	S	Si	Mo	Cu	Al	Ti
Incoloy 800	30.0-35.0	19.0-23.0	39.5 min	0.10 max	1.5 max	0.015 max	1.0 max	–	0.75 max	0.15-0.60	0.15-0.60
Incoloy 800H	30.0-35.0	19.0-23.0	39.5 min	0.05-0.10	1.5 max	0.015 max	1.0 max	–	0.75 max	0.15-0.60	0.15-0.60
Incoloy 825	38.0-46.0	19.5-23.5	22.0 min	0.05 max	1.0 max	0.03 max	0.5 max	2.5-3.5	1.5-3.0	0.2 max	0.6-1.2

Incoloy Pipes Mechanical Properties

We ensure all our pipes meet the minimum mechanical requirements specified by ASTM B407 and B423.

Grade	Tensile Strength (min)	Yield Strength (0.2% Offset)	Elongation in 2″	Hardness (Brinell)
Incoloy 800 (Annealed)	75 ksi (520 MPa)	30 ksi (205 MPa)	30%	138 avg
Incoloy 800H (Solution Annealed)	65 ksi (450 MPa)	25 ksi (170 MPa)	30%	126 avg
Incoloy 825 (Annealed)	85 ksi (586 MPa)	35 ksi (241 MPa)	30%	135-165

Industrial Applications of Incoloy Pipes and Tubes

Incoloy pipes and tubes are specified across industries where standard stainless steel fails due to heat, pressure, or chemical aggression.

Oil and Gas Processing	Chemical Processing Plants	Heat Exchangers	Pollution Control
Marine and Offshore	Flue Gas Desulfurization	Acid Production	Pharmaceutical Equipment
Nuclear Waste Processing	Seawater Desalination	Pickling Equipment	Fertilizer Production

Why Choose Kalpataru Piping for Incoloy Pipes and Tubes

ISO-certified supplier stocking all four Incoloy pipe grades in over 600 sizes ready for immediate dispatch worldwide.
ASTM B423, ASTM B407, and ASME SB423 compliance verified with third-party inspection from TUV, SGS, Bureau Veritas, and Lloyd’s Register.
Mill Test Certificates to EN 10204 3.1 and 3.2 with full material traceability supplied with every order.
In-house hydrostatic testing, eddy current testing, radiography, and ultrasonic testing available on all Incoloy pipe grades.
Over 25 years of export experience serving the UAE, USA, UK, Germany, Saudi Arabia, Singapore, and 40 plus countries.
Competitive pricing on alloy 825 pipe, incoloy 825 pipe enquiries, and all Incoloy 800 series with fast sample and custom fabrication support.

Explore our complete Incoloy Products range including Incoloy 825 Flanges and Incoloy 825 Fittings, or return to this page at any time: Incoloy Pipes and Tubes.

FREQUENTLY ASKED QUESTIONS (FAQ)

What is Incoloy pipe?

Incoloy pipes are high-nickel alloy pipes used in high-temp and corrosive service. Key grades are 800, 800H, 800HT, and 825, each suited to specific temperature and corrosion conditions.

What is the difference between Incoloy 825 and Incoloy 800 pipe?

Incoloy 825 pipe excels in corrosive acid environments. Incoloy 800 pipe is preferred for high-temperature oxidizing service up to 816 deg C. Both are ASTM-compliant.

What ASTM standard covers Incoloy 825 seamless pipe?

Incoloy 825 seamless pipes and tubes are covered under ASTM B423 and ASME SB423. Incoloy 800 series pipes are covered under ASTM B407. View Incoloy 825 Pipes Specifications.

Do you supply Incoloy 800H and 800HT pipes?

Yes. We supply Incoloy 800H (N08810) and 800HT (N08811) seamless and welded pipes to ASTM B407 in a full range of sizes and schedules. Explore Incoloy 800H Pipe Sizes.

What sizes are available for Incoloy pipes and tubes?

Incoloy pipes are available from 6.35 mm to 609.60 mm OD in SCH 5 to XXS. Custom sizes are available on request for all four grades.

Is Incoloy 825 the same as incoloy 825 pipe?

No. Incoloy 825 (N08825) and Incoloy are distinct alloy families. Incoloy 825 is a common misterm. The correct product is Incoloy 825 pipe to ASTM B423.

Ready to Source Incoloy Pipes and Tubes? Whether you need Incoloy 825 pipe for acid service or Incoloy 800H for high-temperature applications, Kalpataru Piping delivers ASTM-certified material to 40+ countries with full mill traceability.
