Kalpataru Piping is a prominent manufacturer, supplier, exporter and stockist of superior quality Hastelloy C276 Flanges. The Hastelloy C276 Welded Flange is a nickel-molybdenum-chromium alloy with added tungsten. It is highly resistant to corrosion by a wide variety of aggressive chemicals and is particularly resistant to pitting and crevice corrosion. Hastelloy C276 Socket Weld Flanges are extensively used in a range of industries. Due to the excellent corrosion resistance, the Hastelloy UNS N10276 Weld Neck Flange is also easily fabricated. Kalpataru Piping produces these Hastelloy UNS N10276 Flanges from superior quality materials. Hastelloy C276 Flanges have applications in a vast range of industries, including petroleum, chemical, construction, engineering, gas and shipbuilding, to name a few. Kalpataru Piping supplies these Hastelloy C276 Flanges in a variety of types including seamless, welded, fabricated, slip-on, blind, weld neck, socket weld, screwed, lapped, etc. View our entire collection and the entire Hastelloy Flange range.
Kalpataru Piping has a well-equipped manufacturing unit and equipped with latest machinery to manufacture high quality Hastelloy C276 Flanges. Our extensive stock facilitates prompt shipments. Our skilled experts manufacture superior-quality flanges to match customer-specific specifications, using state-of-the-art techniques and machinery. Our Hastelloy C276 Flange products are highly resistant to creep-rupture and stress-rupture, and are offered at competitive prices in the international market. We employ the best quality materials for optimal performance with minimal maintenance. Our experienced supervision ensures compliance with international quality standards during the manufacturing process.
What is a Hastelloy C276 Flange?
Hastelloy C276 Flanges are manufactured from a special nickel-chromium-molybdenum alloy. The alloy is made from 50.99 percent nickel, 14.5 percent chromium, 15 percent molybdenum, and other components such as carbon, manganese, silicon, sulfur, cobalt, iron and phosphorus. The flanges have a melting point of 1370 degrees Celsius, making them suitable for higher temperatures. The Hastelloy C276 Flanges are highly durable and are made by forging from a single raw material to ensure their integrity. They have different sizes, standards and specifications, such as the UNS N10276 SORF Flange and ASTM B564 specification, with ANSI, ASME, EN and DIN standards.
The ASTM B564 Hastelloy C276 Pipe Flanges are available in a variety of pressure classes – 150 to 2500 and PN6 to PN64 – depending on design requirements. These all-purpose flanges are used in offshore oil drilling, power generation, petrochemicals, gas processing, specialty chemicals, and more. The Hastelloy Alloy C276 Blind Flanges are applied to temporarily or permanently seal pipeline systems and are also used in pharmaceuticals, petrochemicals, seawater equipment, heat exchangers and condensers. The ASME SB564 Alloy C276 Plate Flange caters to these industries. Kalpataru Piping also produces the widely used alloy c276 forged flanges that comply with stringent procurement standards of EPC and OEMs worldwide.
Request a Quote: Contact Kalpataru Piping at export@kalpatarupiping.com or call 022-66337137 for competitive pricing and fast delivery on all Hastelloy C276 flange types and classes.
Hastelloy C276 Flange Types: WN, SO, Blind, LJ, LWN, SW, Threaded, Reducing
Flange buyers typically specify requirements by type and pressure class. Kalpataru Piping supplies Hastelloy C276 flanges in all eight standard types per ANSI B16.5 and ASME B16.47. The table below provides a detailed overview of each type available as a Hastelloy C276 flange supplier. All types are available in Class 150, Class 300, Class 600, Class 900, Class 1500, and Class 2500 with raised face (RF) or ring type joint (RTJ) facings. Complementary Hastelloy C276 fittings such as buttweld and forged fittings are available at kalpatarupiping.com/hastelloy-c276-astm-b622-buttweld-fittings-supplier-exporters/ and kalpatarupiping.com/hastelloy-c276-astm-b622-forged-fittings-supplier-exporters/.
| Flange Type | Description | Common Applications |

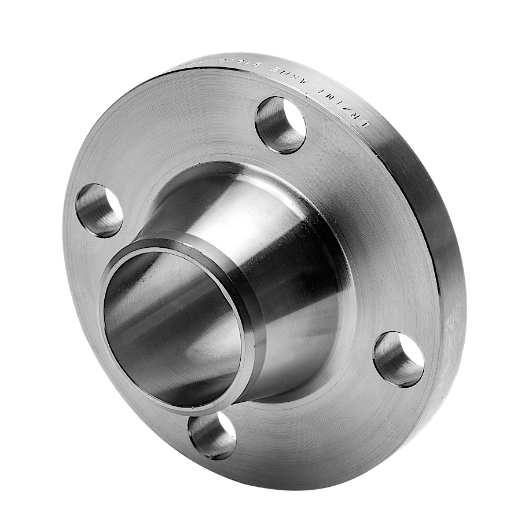

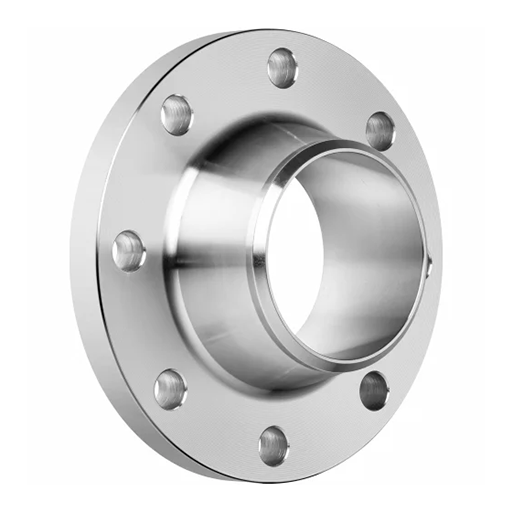

| Weld Neck (WN) | Features a long tapered hub welded to the pipe end. The gradual transition reduces stress concentration and is ideal for high pressure and cyclic loading. Conforms to ANSI B16.5 and ASME SB564. Also referred to as Hastelloy C276 Weld Neck Flange or WNRF Flange. | Offshore oil and gas, high pressure steam lines, refineries, power generation |

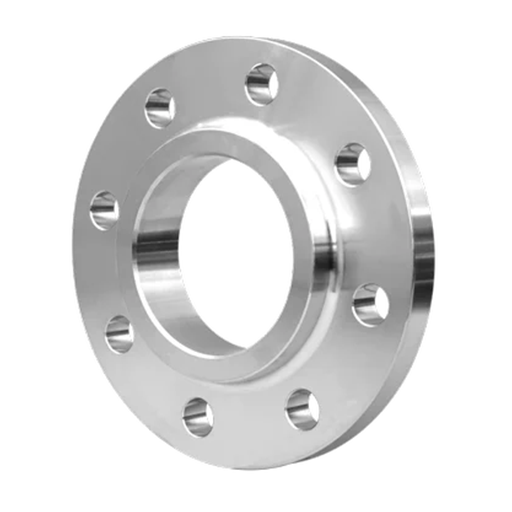

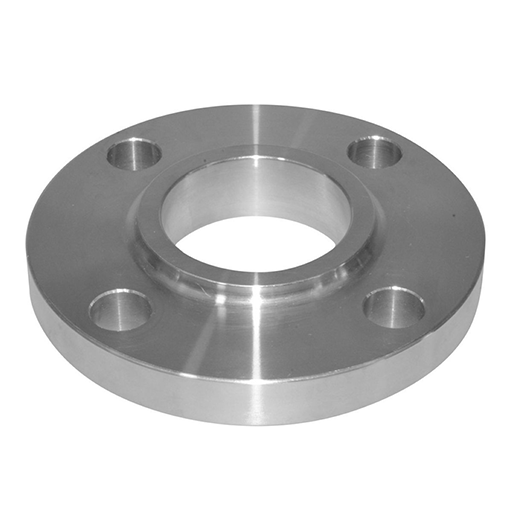

| Slip On (SO) | Slides over the pipe and is fillet welded on both the inside and outside. Simpler to install than weld neck flanges and suitable for moderate pressure service. Commonly specified as Hastelloy C276 Slip On Flange per ANSI B16.5. | Chemical processing, low pressure pipelines, general industrial piping |

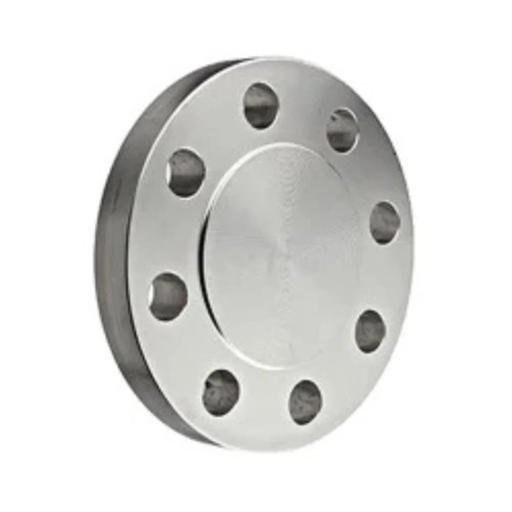

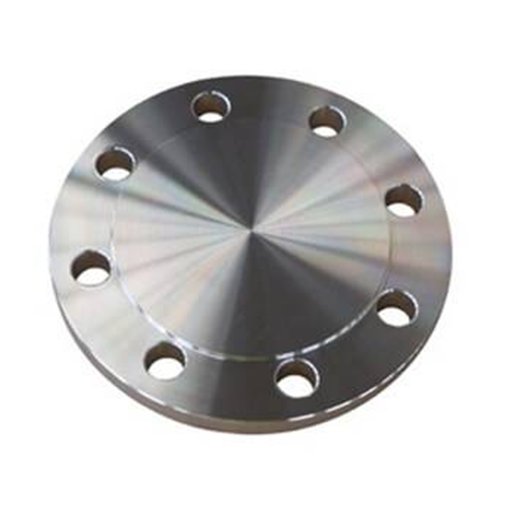

| Blind (BL) | Has no bore and is used to close the end of a pipeline, nozzle, or valve. The UNS N10276 Blind Flange can also be used for pressure testing. Available in Class 150 through 2500. | Pipeline isolation, pressure testing, vessel manholes, pump inlets |

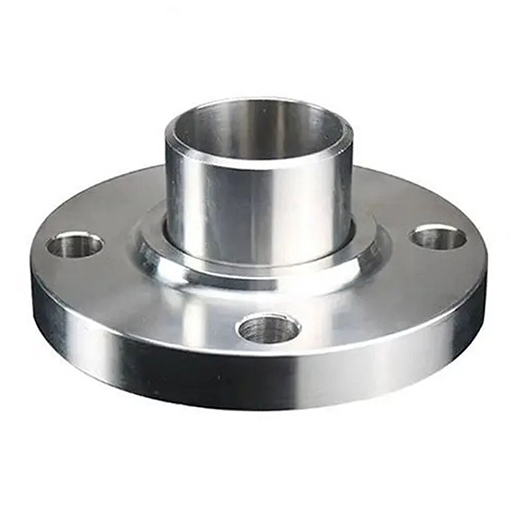

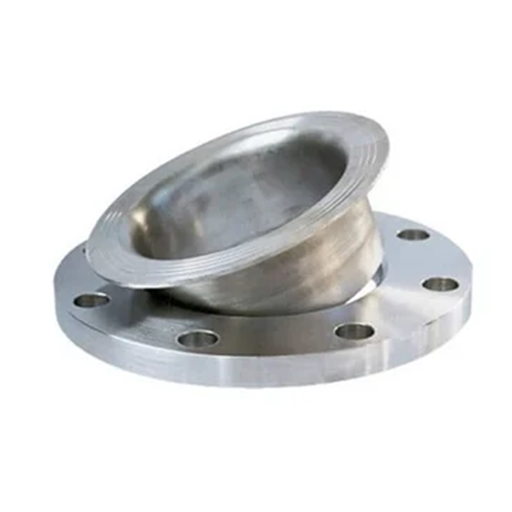

| Lap Joint (LJ) | Used in combination with a stub end fitting. The flange slides over the pipe and backs up the stub end. The alloy C276 forged flange lap joint type is well suited for systems requiring frequent dismantling for inspection. | Systems requiring periodic disassembly, piping connected to rotating equipment |

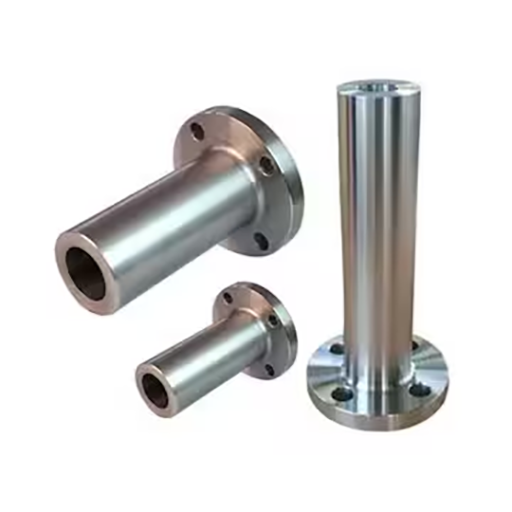

| Long Weld Neck (LWN) | An extended neck version of the weld neck flange, commonly used on pressure vessels, columns, and heat exchanger nozzles. The long hub acts as a nozzle itself. | Pressure vessels, columns, heat exchangers, reactor nozzles |

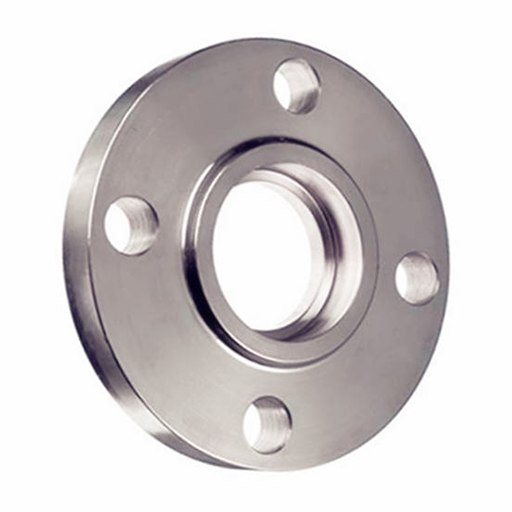

| Socket Weld (SW) | The pipe is inserted into the socket and secured with a fillet weld. Used for small bore, high pressure piping. Provides a smooth bore for improved flow characteristics. | Small diameter lines (NPS 2 and below), hydraulic systems, instrument connections |

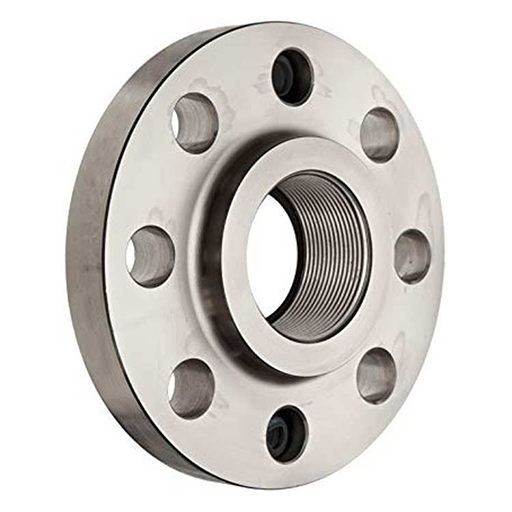

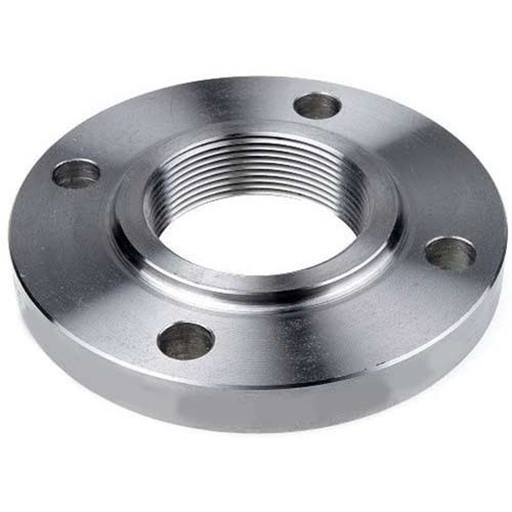

| Threaded (Screwed) | Screwed onto the pipe without welding. Convenient where welding is not practical or permitted due to fire hazard. Available in ASTM B564 N10276 for corrosive service. | Low pressure non-critical services, instrumentation, temporary connections |

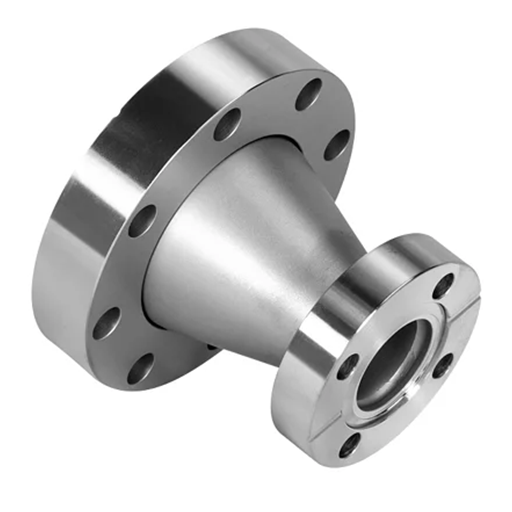

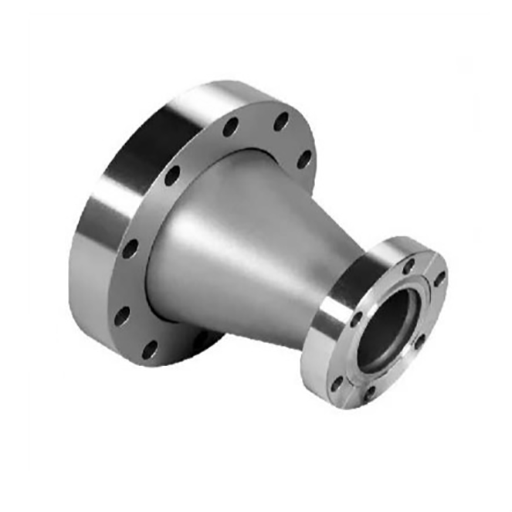

| Reducing Flange | Connects pipes of two different nominal pipe sizes in the same system. One face carries a smaller bore. Eliminates the need for a separate reducer fitting. | Pipe size transitions in process piping, connecting equipment with different inlet and outlet sizes |
Specification of Hastelloy C276 Flanges
| Field | Details |
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A and B, B16.48, EN |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500, Class 2500 |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar / PN6, PN10, PN16, PN25, PN40, PN64 |
| JIS | 5K, 10K, 16K, 20K, 30K, 40K, 63K |
| UNI | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar |
| EN | 6Bar, 10Bar, 16Bar, 25Bar, 40Bar |
| Most Common Types | Threaded / Screwed / Forged / Plate |
| Production Technique | Forged, Heat treated and machined |

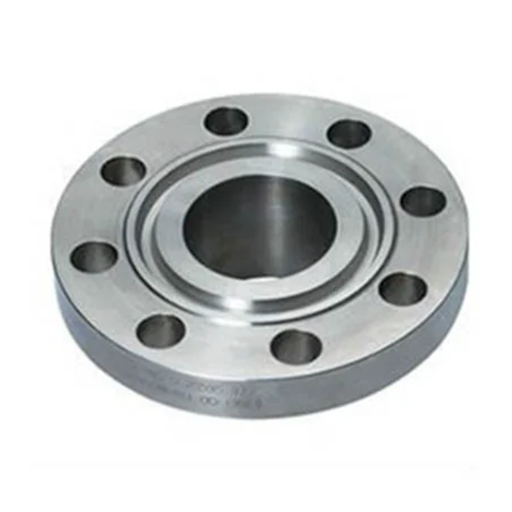

| Shapes and Types | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF), Raised Face (RF), Large Tongue and Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, Ultrasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, Electric bevelling machine |
Hastelloy C276 Pipe Flanges: Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min | 14.50-16.50 | 4.00-7.00 | 15.00-17.00 | 0.04 max |
C276 Blind Flanges Mechanical Strength
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 C (2500 F) | Psi 1,15,000 / MPa 790 | Psi 52,000 / MPa 355 | 40% |
Equivalent Material Grade of Alloy C276 Flange
| Standard | Werkstoff Nr. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | KhN65MVU | NiMo16Cr15W | NW 0276 |
Size Chart of UNS N10276 SORF Flange
| Product | Size Range |
| Nickel C276 Flange | 1/2″ (15 NB) to 48″ (1200NB) |
| ASME SB564 Alloy C276 Slip On Flange | 1/2″ NB to 12″ NB |
| ASTM B564 UNS N10276 Blind Flange | 1/2″ NB to 24″ NB |
Hastelloy C276 Lap Joint Flange Pressure Chart (ANSI/ASME B16.34)
All pressure values are in PSI (pounds per square inch).
| Temperature (F) | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |

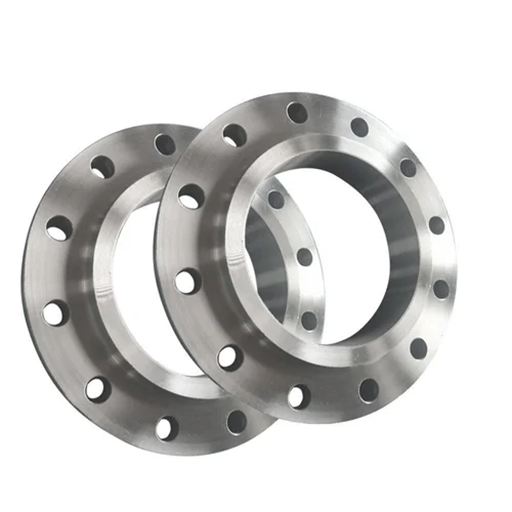

ANSI B16.5 Hastelloy C276 Flange Dimensions: Class 150 to Class 2500
The table below lists the flange outside diameter (OD) in millimetres for Hastelloy C276 flanges manufactured per ANSI B16.5. Procurement engineers can use this table to cross-check dimensional requirements across Class 150, Class 300, Class 600, Class 900, Class 1500, and Class 2500. For ASME B16.47 large diameter flanges (NPS 26 and above), contact Kalpataru Piping directly. The ASTM B564 N10276 material is available in all listed sizes.
| NPS (Inches) | Class 150 OD (mm) | Class 300 OD (mm) | Class 600 OD (mm) | Class 900 OD (mm) | Class 1500 OD (mm) | Class 2500 OD (mm) |
| 1/2 | 89 | 95 | 95 | 121 | 121 | 149 |
| 3/4 | 98 | 117 | 117 | 130 | 130 | 171 |
| 1 | 108 | 124 | 124 | 149 | 149 | 191 |
| 1 1/4 | 117 | 133 | 133 | 159 | 159 | 216 |
| 1 1/2 | 127 | 156 | 156 | 168 | 168 | 229 |
| 2 | 152 | 165 | 165 | 191 | 191 | 254 |
| 2 1/2 | 178 | 190 | 190 | 216 | 216 | 279 |
| 3 | 190 | 210 | 210 | 241 | 241 | 305 |
| 4 | 229 | 254 | 273 | 292 | 292 | 375 |
| 6 | 279 | 318 | 356 | 381 | 394 | 451 |
| 8 | 343 | 381 | 419 | 470 | 470 | 584 |
| 10 | 406 | 444 | 508 | 546 | 584 | 686 |
| 12 | 483 | 521 | 559 | 610 | 641 | 813 |
| 14 | 533 | 584 | 603 | 641 | 673 | 889 |
| 16 | 597 | 648 | 686 | 705 | 762 | 991 |
| 18 | 635 | 711 | 743 | 775 | 832 | 1067 |
| 20 | 698 | 775 | 813 | 857 | 914 | 1168 |
| 24 | 813 | 914 | 940 | 1029 | 1067 | 1346 |
Note: Dimensions are outside diameter (OD) of flange in mm per ANSI B16.5. Bolt circle, number of bolts, bolt size, and raised face diameter vary by class and NPS. Contact Kalpataru Piping for full dimensional drawings for any specific size and class combination.
Weight of Hastelloy C276 ASME SB564 Flanges
|
Standard |
Class |
Diameter (mm) |
Bolt Circle Dia (mm) |
No. of Bolts |
Bolt Size |
Dia of Bolt Hole (mm) |
|
AS4087 Flanges |
PN14 Flanges |
95 |
67 |
4 |
M12 |
14 |
|
AS 2129 Flange |
Table C Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table D Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table E Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table F Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table H Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
Table J Flanges |
114 |
83 |
4 |
16 |
17 |
|
ANSI B16.5 Flanges |
ANSI 150 Flanges |
89 |
60 |
4 |
13 |
16 |
|
|
ANSI 300 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 600 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 900 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ANSI 1500 Flanges |
121 |
83 |
4 |
19 |
22 |
|
ISO 7005 (DIN) Flange |
PN6 Flanges |
80 |
55 |
4 |
M10 |
11 |
|
|
PN10 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN16 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN20 Flanges |
90 |
60.5 |
4 |
M14 |
16 |
|
|
PN25 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN40 Flanges |
95 |
65 |
4 |
M12 |
14 |
ASTM B564 Hastelloy C276 Pipe Flanges: Dimensional Tolerance
|
Hastelloy C276 Flanges |
Tolerance Table |
||
|
Dim |
Description |
Tolerance |
|
|
A |
O.D. (Outside Diameter) |
When O.D. is 24″ or less: +/-1/16″ (1.6 mm). When O.D. is over 24″: +/-1/8″ (3.2 mm) |
|
|
D |
Inside Diameter (I.D.) |
10″ and smaller: +/-1/32″ (0.8 mm). 12″ thru 18″: +1/8″ (3.2 mm). 20″ and larger: -1/16″ (1.6 mm) |
|
|
B |
Diameter of contact face |
1/16″ raised face: +/-1/32″ (0.8 mm). 1/4″ RF, T/G, male and female: +/-1/64″ (0.4 mm) |
|
|
J |
Diameter of hub at base |
24″ or smaller: +/-1/16″ (1.6 mm). Over 24″: +/-1/8″ (3.2 mm) |
|
|
H |
Diameter of hub at welding |
5″ and smaller: +3/32″ (2.4 mm), -1/32″ (0.8 mm). 6″ and larger: +5/32″ (4.0 mm), -1/32″ (0.8 mm) |
|
|
P |
Drilling |
Bolt Circle: +/-1/16″ (1.6 mm). Bolt hole spacing: +/-1/32″ (0.8 mm) |
|
|
|
Eccentricity |
2.5″ and smaller: +/-1/32″ (0.8 mm) max. 3″ and larger: +/-1/16″ (1.6 mm) max |
|
|
C |
Thickness |
18″ and smaller: +/-1/8″ (3.2 mm), -0″. 20″ and larger: +/-3/16″ (4.8 mm), -0″ |
|
|
K |
Length of hub |
10″ and smaller: +/-1/16″ (1.6 mm). 12″ and larger: +/-1/8″ (3.2 mm) |
|
Hastelloy C276 Flanges Thickness Chart (Wall Thickness in inches)
|
NPS |
O.D. |
Sch 10 |
Sch 20 |
Sch 30 |
STD Wall |
Sch 40 |
Sch 60 |
EXT Hvy |
Sch 80 |
Sch 100 |
Sch 120 |
Sch 140 |
Sch 160 |
XX Hvy |
|
1/2 |
0.84 |
0.083 |
… |
… |
0.109 |
0.109 |
… |
0.147 |
0.147 |
… |
… |
… |
0.188 |
0.294 |
|
3/4 |
1.05 |
0.083 |
… |
… |
0.113 |
0.113 |
… |
0.154 |
0.154 |
… |
… |
… |
0.219 |
0.308 |
|
1 |
1.315 |
0.109 |
… |
… |
0.133 |
0.133 |
… |
0.179 |
0.179 |
… |
… |
… |
0.25 |
0.358 |
|
1 1/4 |
1.66 |
0.109 |
… |
… |
0.140 |
0.140 |
… |
0.191 |
0.191 |
… |
… |
… |
0.25 |
0.382 |
|
1 1/2 |
1.9 |
0.109 |
… |
… |
0.145 |
0.145 |
… |
0.200 |
0.200 |
… |
… |
… |
0.281 |
0.400 |
|
2 |
2.375 |
0.109 |
… |
… |
0.154 |
0.154 |
… |
0.218 |
0.218 |
… |
… |
… |
0.344 |
0.436 |
|
2 1/2 |
2.875 |
0.120 |
… |
… |
0.203 |
0.203 |
… |
0.276 |
0.276 |
… |
… |
… |
0.375 |
0.552 |
|
3 |
3.5 |
0.120 |
… |
… |
0.216 |
0.216 |
… |
0.300 |
0.300 |
… |
… |
… |
0.438 |
0.600 |
|
3 1/2 |
4 |
0.120 |
… |
… |
0.226 |
0.226 |
… |
0.318 |
0.318 |
… |
… |
… |
… |
0.636 |
|
4 |
4.5 |
0.120 |
… |
… |
0.237 |
0.237 |
… |
0.337 |
0.337 |
… |
0.438 |
… |
0.531 |
0.674 |
|
5 |
5.563 |
0.134 |
… |
… |
0.258 |
0.258 |
… |
0.375 |
0.375 |
… |
0.500 |
… |
0.625 |
0.750 |
|
6 |
6.625 |
0.134 |
… |
… |
0.280 |
0.280 |
… |
0.432 |
0.432 |
… |
0.562 |
… |
0.719 |
0.864 |
|
8 |
8.625 |
0.148 |
0.250 |
0.277 |
0.322 |
0.322 |
0.406 |
0.500 |
0.500 |
0.594 |
0.719 |
0.812 |
0.906 |
0.875 |
|
10 |
10.75 |
0.165 |
0.250 |
0.307 |
0.365 |
0.365 |
0.500 |
0.500 |
0.594 |
0.719 |
0.844 |
1.000 |
1.125 |
1.000 |
|
12 |
12.75 |
0.180 |
0.250 |
0.330 |
0.375 |
0.406 |
0.562 |
0.500 |
0.688 |
0.844 |
1.000 |
1.125 |
1.312 |
1.000 |
|
14 |
14 |
0.250 |
0.312 |
0.375 |
0.375 |
0.438 |
0.594 |
0.500 |
0.750 |
0.938 |
1.094 |
1.250 |
1.406 |
… |
|
16 |
16 |
0.250 |
0.312 |
0.375 |
0.375 |
0.500 |
0.656 |
0.500 |
0.844 |
1.031 |
1.219 |
1.438 |
1.594 |
… |
|
18 |
18 |
0.250 |
0.312 |
0.438 |
0.375 |
0.562 |
0.750 |
0.500 |
0.938 |
1.156 |
1.375 |
1.562 |
1.781 |
… |
|
20 |
20 |
0.250 |
0.375 |
0.500 |
0.375 |
0.594 |
0.812 |
0.500 |
1.031 |
1.281 |
1.500 |
1.750 |
1.969 |
… |
|
22 |
22 |
0.250 |
… |
… |
0.375 |
… |
… |
0.500 |
… |
… |
… |
… |
… |
… |
|
24 |
24 |
0.250 |
0.375 |
0.562 |
0.375 |
0.688 |
0.969 |
0.500 |
1.219 |
1.531 |
1.812 |
2.062 |
2.344 |
… |
|
26 |
26 |
… |
… |
… |
0.375 |
… |
… |
0.500 |
… |
… |
… |
… |
… |
… |
|
30 |
30 |
0.312 |
0.500 |
0.625 |
0.375 |
… |
… |
0.500 |
… |
… |
… |
… |
… |
… |
|
36 |
36 |
0.312 |
0.500 |
0.625 |
0.375 |
0.750 |
… |
0.500 |
… |
… |
… |
… |
… |
… |
|
40 |
40 |
… |
… |
… |
0.375 |
… |
… |
0.500 |
… |
… |
… |
… |
… |
… |
|
42 |
42 |
… |
… |
… |
0.375 |
… |
… |
0.500 |
… |
… |
… |
… |
… |
… |
|
48 |
48 |
… |
… |
… |
0.375 |
… |
… |
0.500 |
… |
… |
… |
… |
… |
… |
Types of Hastelloy C276 Flanges
Approvals, Certifications, and Quality Assurance
Kalpataru Piping holds internationally recognised certifications and approvals that demonstrate our commitment to quality and compliance. Every Hastelloy C276 flange supplied by us comes with full material documentation, test certificates, and traceability as listed below. These certifications are a key reason why EPC contractors, OEMs, and procurement teams from over 50 countries choose Kalpataru Piping as their preferred Hastelloy C276 flange supplier.
| Certification / Approval | Details |
| ISO 9001:2015 | Quality Management System Certification for design, manufacture, and supply of piping components |
| PED 97/23/EC | Pressure Equipment Directive compliance for flanges supplied to European markets |
| ARAMCO Approved | Listed vendor for supply to Saudi Aramco projects and affiliated downstream operations |
| IBR (Indian Boiler Regulation) | Compliance for pressure parts used in Indian boiler and pressure vessel applications |
| NACE MR0175 / ISO 15156 | Sour service compliance; Hastelloy C276 meets requirements for use in H2S environments |
| Third Party Inspection | Available through SGS, Bureau Veritas (BV), TUV, Lloyds, and DNV on request |
| Mill Test Certificates | EN 10204 3.1 and 3.2 material test reports supplied with every consignment |
| NABL Accredited Lab | In-house testing carried out in NABL accredited laboratory |
All Hastelloy C276 flanges supplied by Kalpataru Piping carry heat-number-traced mill test certificates. Chemical analysis, tensile testing, hardness testing, and hydrostatic testing are conducted at our in-house NABL accredited laboratory. Third party inspection by major international agencies is available on demand. Our quality processes conform to ISO 9001:2015 and are audited annually.
Marking and Packing of Hastelloy C276 Flanges
Kalpataru Piping packs Hastelloy C276 Flanges properly and carefully to ensure there is no damage during transit. We pack Hastelloy C276 Flanges in wooden boxes and supply them worldwide. Each flange is individually marked with the material grade, heat number, size, pressure class, and applicable standard for full traceability.
Why Choose Kalpataru Piping for Hastelloy C276 Flanges?
- Huge stock of Hastelloy C276 Flanges ready for immediate despatch
- Large production capacity for standard and custom Hastelloy C276 Flanges
- Kalpataru Piping offers the highest quality Hastelloy C276 Flanges at competitive prices
- Customised sizes available based on client requirements for any class or type
- Full documentation including EN 10204 3.1 and 3.2 mill test certificates
- Global export capability to Middle East, Europe, USA, South East Asia, and Africa
- ISO 9001:2015 certified quality management system
Kalpataru Piping offers high-quality Hastelloy C276 Flanges with test certificates. Third party inspection is also available.
Related Hastelloy C276 Products by Kalpataru Piping
Explore the complete Hastelloy C276 product range available from Kalpataru Piping. All products listed below are stocked in Mumbai, India and exported globally:
| Product | Page Link / URL |
| Hastelloy C276 Seamless Pipes and Tubes | kalpatarupiping.com/hastelloy-c276-astm-b622-seamless-pipes-tube-supplier-exporters/ |
| Hastelloy C276 Forged Fittings | kalpatarupiping.com/hastelloy-c276-astm-b622-forged-fittings-supplier-exporters/ |
| Hastelloy C276 Buttweld Fittings | kalpatarupiping.com/hastelloy-c276-astm-b622-buttweld-fittings-supplier-exporters/ |
| Hastelloy Flanges Hub (All Grades) | kalpatarupiping.com/hastelloy-flanges/ |
| Hastelloy C276 Product Hub | kalpatarupiping.com/hastelloy-c276/ |
| Hastelloy C276 Plates and Sheets | kalpatarupiping.com/hastelloy-c276-astm-b622-plates-sheets-supplier-exporters/ |
| Hastelloy C276 Round Bars and Wires | kalpatarupiping.com/hastelloy-c276-astm-b622-round-bars-wires-supplier-exporters/ |
| Hastelloy C276 Fasteners | kalpatarupiping.com/hastelloy-c276-astm-b622-fasteners-supplier-exporters/ |
| Hastelloy C276 Instrumentation Valves | kalpatarupiping.com/hastelloy-c276-astm-b622-instrumentation-valves-supplier-exporters/ |
| Hastelloy C276 Pipe Spools | kalpatarupiping.com/hastelloy-c276-astm-b622-pipe-spools-supplier-exporters/ |
| Hastelloy C276 Compression Tube Fittings | kalpatarupiping.com/hastelloy-c276-astm-b622-compression-tube-fittings-supplier-exporters/ |
| Hastelloy C276 Filler Wire | kalpatarupiping.com/hastelloy-c276-astm-b622-filler-wire-supplier-exporters/ |
Frequently Asked Questions: Hastelloy C276 Flanges
What is the specification of Hastelloy C276 flanges?
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
What types of flanges are available in Hastelloy C276 from Kalpataru Piping?
Kalpataru Piping offers Hastelloy C276 flanges in all standard types such as Weld Neck (WN), Slip On (SO), Blind (BL), Lap Joint (LJ), Long Weld Neck (LWN), Socket Weld (SW), Threaded, and Reducing. They are all available to ANSI B16.5, ASME B16.47 Series A and B and DIN.
Which pressure classes are ANSI B16.5 Hastelloy C276 flanges available in?
ANSI B16.5 Hastelloy C276 flanges are available in pressure classes 150, 300, 400, 600, 900, 1500, and 2500. DIN flanges are available in PN6 to PN64. JIS flanges are available in 5K, 10K, 16K, 20K, 30K, 40K, and 63K pressure ratings.
Hastelloy C276 ASTM B564 N10276 flanges are used in many applications including:
Hastelloy C276 flanges are applied in offshore oil and gas drilling, petrochemical and refining, pharmaceuticals, chemical processing (particularly oxidising acids), desalination and seawater, flue gas desulphurisation, pulp and paper, and power generation. Hastelloy C276’s excellent resistance to pitting and crevice corrosion makes it an ideal choice for corrosive environments.
What sizes do Kalpataru Piping supply of Hastelloy C276 flanges?
Hastelloy C276 flanges are available from Kalpataru Piping in sizes from 1/2 inch NB (15 NB) to 48 inch NB (1200 NB). Slip On flanges can be provided up to 12 inch NB and Blind flanges up to 24 inch NB. Special sizes available upon request.
Does Kalpataru Piping supply material test certificates for Hastelloy C276 flanges?
Yes. Kalpataru Piping offers complete material traceability reports including mill test certificates as per EN 10204 3.1 and 3.2. Reports on chemical composition, mechanical tests and heat number traceability are also provided. SGS, Bureau Veritas, TUV or Lloyds third party inspection is also available if required.
What's the difference between Hastelloy C276 flanges and stainless steel flanges?
Hastelloy C276 (UNS N10276) flanges are comprised of about 51 percent nickel, 15-17 percent molybdenum, and 14.5-16.5 percent chromium. This provides greater resistance to pitting, crevice and stress corrosion cracking than 316L stainless steel. The Hastelloy C276 forged flange can be used from cryogenic to 1370 degrees Celsius, much higher than standard austenitic stainless steels.
Enquire Now for Hastelloy C276 Flanges
Fill the enquiry form at kalpatarupiping.com/contact-us/ or call 022-66337137 or email export@kalpatarupiping.com
