Super Duplex Steel UNS S32760 Buttweld Fittings
ANSI B16.9, ANSI B16.28, MSS SP-43, or MSS SP-79 Super Duplex 2507 Butt weld Pipe Fitting, Super Duplex Steel ASTM A815 Fittings, Werkstoff No 1.4410 Super Duplex Buttweld Pipe Fittings, Manufacturer Of ASTM A815 Super Duplex Steel UNS S32750 Buttweld Fittings in India.
Table of Content
- Super Duplex Steel UNS S32760 Buttweld Fittings Supplier
- Specifications of Super Duplex Steel UNS S32760 Buttweld Fittings
- Super Duplex Steel UNS S32760 Buttweld Fittings Chemical Composition
- Mechanical Properties of Super Duplex Steel UNS S32760 Buttweld Fittings
- Super Duplex Steel Uns S32760 Buttweld Pipe Fittings Dimension
- Duplex Steel UNS S32760 Buttweld Pipe Fittings Weight Chart
- Super Duplex Steel UNS S32760 Buttweld Fittings Applications
- Types of Super Duplex Steel Buttweld Pipe Fittings
Super Duplex Steel S32760 Pipe Fittings are highly sought after in industries such as oil & gas, marine, construction, and aerospace due to their exceptional properties. They offer high tensile strength of up to 1100 MPa and excellent weldability, ensuring reliable performance in various applications. These fittings also maintain good impact strength at low temperatures as low as -50°C and exhibit superior corrosion resistance, making them suitable for harsh environments. Additionally, their high thermal conductivity makes them ideal for heat transfer applications, such as heat exchangers. Despite their hardness, Super Duplex S32760 Pipe Fittings are also known for their good machinability, allowing them to be easily shaped into the desired sizes and forms.
Super Duplex Pipe Fittings, including seamless fittings, welded tees, and long stub ends. As stockists, we provide ANSI B16.9 S32760 Welded Tees, ANSI B16.9 S32760 Pipe Reducers, and Super Duplex Steel S32760 Pipe Elbows. Our inventory also includes UNS S32760 Buttweld Reducers and Super Duplex S32760 Buttweld Reducing Crosses. As manufacturers, we produce WERKSTOFF NO 1.4410 Long Stub Ends and UNS S32760 Buttweld Fittings. We are also suppliers of ASME SA815 S32760 Seamless Tees, ASTM A815 S32760 Buttweld Pipe Fittings, and ASME SA815 S32760 Buttweld Seamless Bends, along with Super Duplex S32760 Equal Crosses. Our extensive range of Super Duplex Pipe Fittings ensures we meet diverse needs across various industries.
Super Duplex Steel UNS S32760 Buttweld Fittings Supplier
Kalpataru Piping Solution is supplier of Super Duplex Steel UNS S32760 Buttweld Fittings are high-performance components crafted from Super Duplex Stainless Steel UNS S32760. Known for its dual-phase structure, this grade combines both austenitic and ferritic phases to deliver exceptional strength and corrosion resistance. These fittings offer impressive tensile strength, resistance to pitting, crevice corrosion, and stress corrosion cracking, making them suitable for high-pressure and high-temperature applications. They are commonly used in industries such as oil and gas, marine, chemical processing, and construction, where durability and reliability in aggressive environments are crucial. Available in various types, including elbows, tees, reducers, and caps, these fittings are designed to connect and join pipes effectively in demanding operational conditions.Super Duplex UNS S32760 Pipe Fittings are valued for their exceptional strength, corrosion resistance, and durability, making them suitable for a wide range of applications across various industries.
Specifications of Super Duplex Steel UNS S32760 Buttweld Fittings
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex S2760 | S32760 | 1.4410 |
Super Duplex Steel UNS S32760 Buttweld Fittings Chemical Composition
UNS S32760 |
C |
N |
P |
Si |
Mn |
Mo |
Ni |
Cr |
S |
Other |
0.030 |
0.24/0.32 |
0.035 |
0.80 |
1.20 |
3.0/5.0 |
6.00/8.00 |
24.0/26.0 |
0.020 |
Cu:0.50 |
Mechanical Properties of Super Duplex Steel UNS S32760 Buttweld Fittings
| UNS | Grade |
Proof Stress 0.2% (MPa) |
Tensile Strength (MPa) |
Elongation A5(%) |
Hardness Max | |
| HB | HRB | |||||
| S32760 | 2507 | 550 | 795 | 15 | 310 | 32* |
Super Duplex Steel Uns S32760 Buttweld Pipe Fittings Dimension
| Nominal Pipe Size |
Outside Diameter |
Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) |
Center to End (inch) |
Center to End (inch) |
Lap Diameter (inch) |
Long Length (inch) |
Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Duplex Steel UNS S32760 Buttweld Pipe Fittings Weight Chart
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Super Duplex Steel UNS S32760 Buttweld Fittings Applications
- Construction
- Bridges
- Petrochemical Industry
- Ship Building
- Engineering
- General Structural Purposes
- Offshore and Onshore Services
- Power Generation Industries
- Food Processing Industries
- Oil & Gas Industries
- Sugar Industries
Types of Super Duplex Steel Buttweld Pipe Fittings
Long and Short Radius Elbows

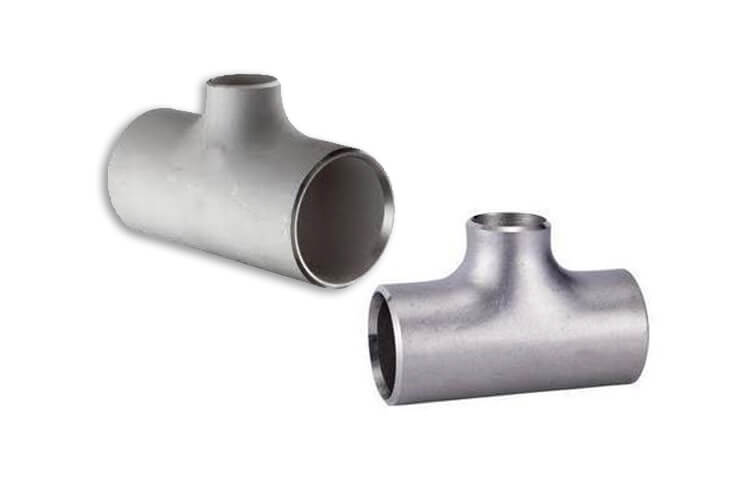

Equal and Unequal Tees
Concentric and Eccentric Reducer

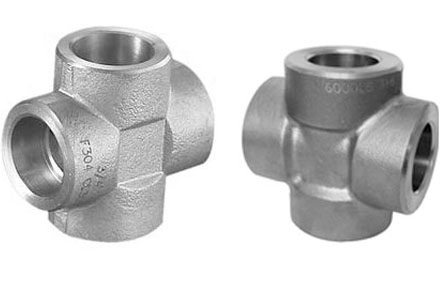

Equal and Unequal Cross

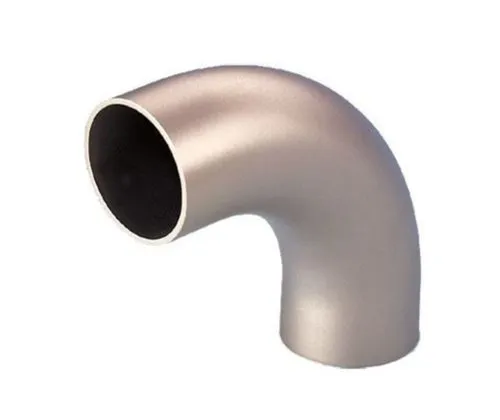

Bends
Short and Long Stub Ends
Pipe End Caps

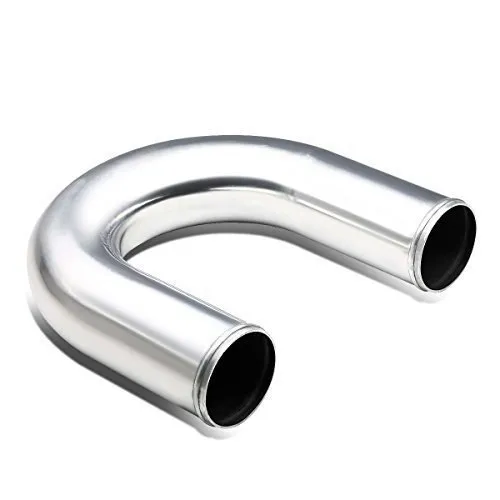

Piggable Bends

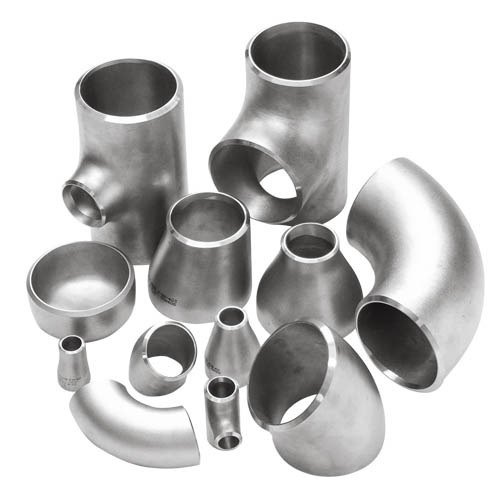

Seamless Buttweld Pipe Fittings

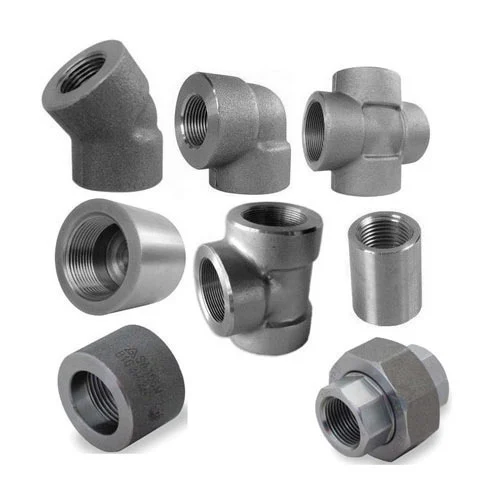

Welded Buttweld Pipe Fittings

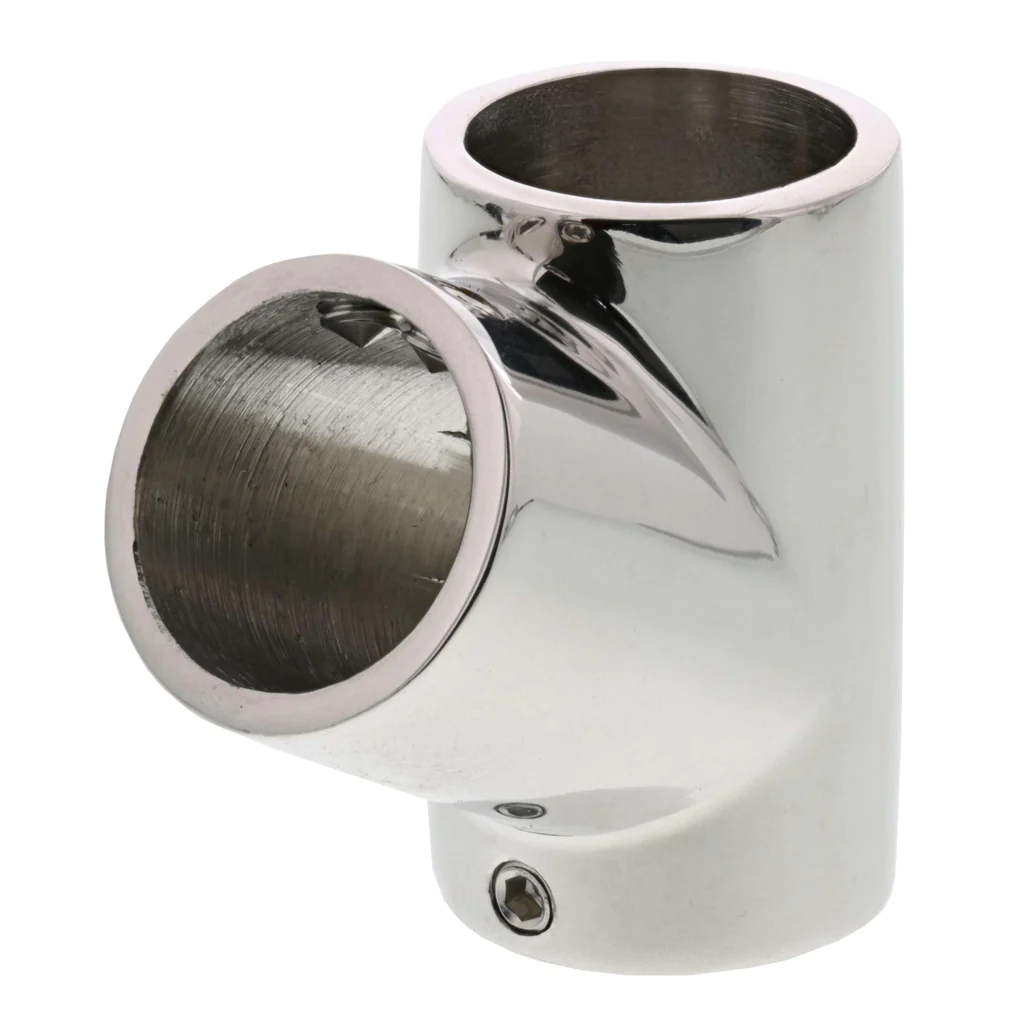

Split Tees
