Monel Wire Mesh
ASTM B164 Certified Monel 400 & K500 Wire Mesh — Custom Sizes, Ready Stock, Fast Dispatch Across India & Export Markets
ISO Certified | ASTM B164 & ASME SB164 Compliant | Mill Test Certificates Provided | Pan-India Delivery + Global Export
Table of Content
- What Is Monel Wire Mesh?
- Technical Specifications of Monel Wire Mesh
- Monel Wire Mesh Sizes & Open Area Chart
- Chemical Composition
- Monel Wire Mesh Mechanical Properties
- Equivalent International Grades of Monel Wire Mesh
- Types of Monel Wire Mesh We Manufacture
- Monel Wire Mesh Applications & Industries
- Comparison Tables of Monel Wire Mesh
- Manufacturing Process & Quality Control
- Certifications & Standards
- Monel Wire Mesh Price in India
- Related Products
Monel Wire Mesh Manufacturer, Supplier & Stockist in India
Kalpataru Piping is a reputable supplier, stockist and manufacturer of Monel wire mesh which is used for industries where ordinary alloys are unable to withstand corrosion, exposure to salt and extreme heat. Our nickel-copper alloy wire mesh (Minimum 63% Ni) is not only acid resistant, alkali resistant, seawater resistant and has outstanding mechanical performance, but is also easy to be welded and has no magnetic property. Our wire mesh is manufactured to ASTM B164, ASME SB164, and ANSI/AWCI standards and is offered in a variety of weave patterns, ranging from 2 mesh to 400 mesh, widths and lengths are customizable to suit any filtration, screening or structural application. From marine engineering and chemical processing, dearating heaters, and hydrocarbon or petroleum uses, Kalpataru Piping offers certified quality, competitive prices, and dependable stocking at every turn, backed by unmistakable chemical and mechanical test reports to document every batch.
Get a free sample or instant quotation today and see the reason why fabricators, EPC, contractors and filtration OEMs throughout India rely on Kalpataru Piping for the requirements of Monel wire mesh.
What Is Monel Wire Mesh?
Monel wire mesh is a woven or welded screen made from Monel alloy — a nickel-copper alloy first developed for its natural resistance to seawater and corrosive chemical environments. Unlike standard stainless steel wire mesh, Monel wire mesh retains its strength and surface integrity in reducing environments such as hydrochloric and sulfuric acid, making it the material of choice for engineers who cannot risk mesh failure in aggressive media.
Two grades dominate industrial use: Monel 400 Wire Mesh (UNS N04400), the general-purpose corrosion-resistant grade, and Monel K500 Wire Mesh (UNS N05500), an age-hardened variant with added aluminium and titanium for significantly higher tensile strength. Kalpataru Piping stocks and manufactures both grades in woven, welded, twill, dutch, plain weave, and hexagonal wire mesh formats.
Technical Specifications of Monel Wire Mesh
| Specification | Details |
| Applicable Standards | ASTM B164, ASME SB164, ANSI/AWCI-01-1992, ASTM E2016-11 |
| Grades | Monel 400 (UNS N04400), Monel K500 (UNS N05500) |
| Weave Types | Plain weave, twill weave, dutch weave, twilled dutch weave, five heddle weave, herringbone weave, welded, hexagonal, wire rope mesh |
| Mesh Count Range | 2 mesh to 400 mesh per linear inch |
| Wire Diameter Range | 0.025 mm to 1.80 mm (0.00098″ – 0.071″) |
| Width | Up to 2 meters (custom widths available) |
| Roll Length | Standard 30 m; cut lengths from 0.125″ to 72″ available |
| Crimp Styles | Lock crimp, flat top, intercrimp, double crimp |
| Surface Finish | Mill finish; PTFE coating available on request |
| HTS / HS Code | 7508.10.0000 |
Monel Wire Mesh Sizes & Open Area Chart
A selection of commonly stocked mesh counts and their corresponding wire diameter and opening size. Full custom sizing from 2 mesh to 400 mesh is available on request.
| Mesh Count | Wire Diameter (mm) | Wire Diameter (in) | Opening (mm) |
|---|---|---|---|
| 10 mesh | 0.508 | 0.020 | 2.032 |
| 20 mesh | 0.315 | 0.0124 | 0.955 |
| 40 mesh | 0.193 | 0.0076 | 0.442 |
| 60 mesh | 0.173 | 0.0068 | 0.250 |
| 100 mesh | 0.112 | 0.0044 | 0.152 |
| 150 mesh | 0.061 | 0.0024 | 0.108 |
| 200 mesh | 0.051 | 0.002 | 0.076 |
| 300 mesh | 0.031 | 0.0012 | 0.054 |
| 400 mesh | 0.025 | 0.00098 | 0.0385 |
Chemical Composition
Monel 400 (UNS N04400)
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 63.00 min |
| Copper (Cu) | 28.00 – 34.00 |
| Iron (Fe) | 2.50 max |
| Manganese (Mn) | 2.00 max |
| Carbon (C) | 0.30 max |
| Silicon (Si) | 0.50 max |
| Sulphur (S) | 0.024 max |
Monel K500 (UNS N05500)
|
Element |
Composition (%) |
|---|---|
|
Nickel (Ni) |
63.00 min |
|
Copper (Cu) |
27.00 – 33.00 |
|
Aluminium (Al) |
2.30 – 3.15 |
|
Titanium (Ti) |
0.35 – 0.85 |
|
Iron (Fe) |
2.00 max |
|
Manganese (Mn) |
1.50 max |
|
Carbon (C) |
0.25 max |
|
Silicon (Si) |
0.50 max |
|
Sulphur (S) |
0.010 max |
Monel Wire Mesh Mechanical Properties
| Property | Monel 400 | Monel K500 |
|---|---|---|
| Density | 8.80 g/cm³ | 8.44 g/cm³ |
| Melting Point | 1300 – 1350°C (2372 – 2462°F) | 1300 – 1350°C (2372 – 2462°F) |
| Tensile Strength | 80,000 – 90,000 psi (550 – 620 MPa) | 160,000 – 175,000 psi (1100 – 1200 MPa) |
| Yield Strength (0.2% offset) | 35,000 psi (240 MPa) | 115,000 psi (790 MPa) |
| Elongation at Break | 40% | 20% |
| Thermal Conductivity | ≈ 22.0 W/m·K (20°C) | ≈ 17.5 W/m·K (20°C) |
Equivalent International Grades of Monel Wire Mesh
|
Standard |
UNS |
W.Nr. |
AFNOR |
EN |
JIS |
BS |
|---|---|---|---|---|---|---|
|
Monel 400 |
N04400 |
2.4360 |
NU-30M |
NiCu30Fe |
NW4400 |
NA13 |
|
Monel K500 |
N05500 |
2.4375 |
— |
— |
— |
— |
Types of Monel Wire Mesh We Manufacture

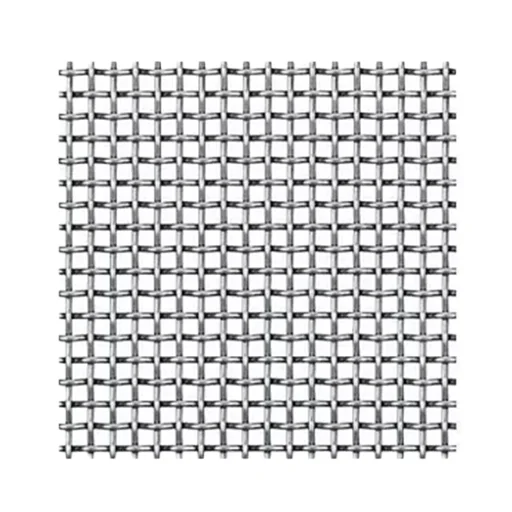

Monel Woven Wire Mesh

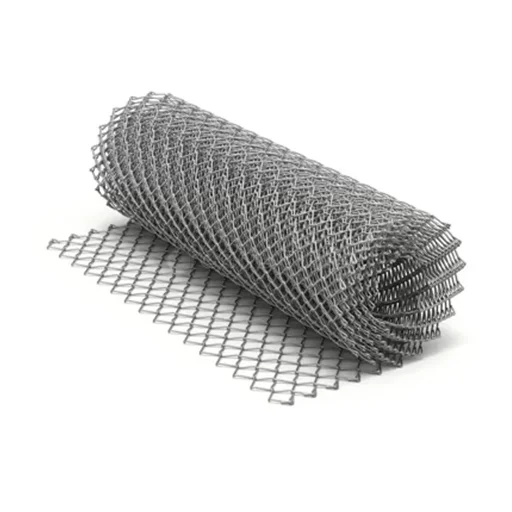

Monel Fencing Wire Mesh

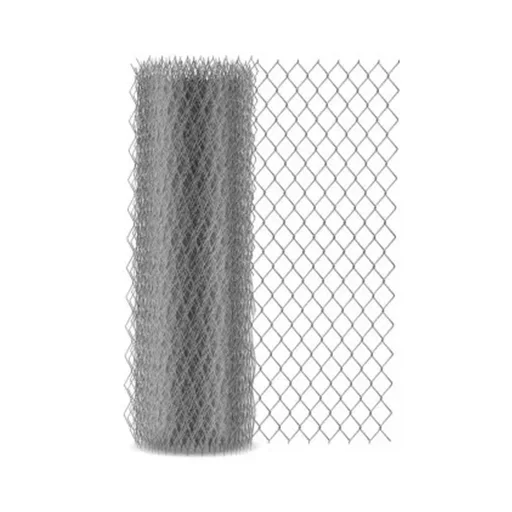

Monel Hexagonal Wire Mesh

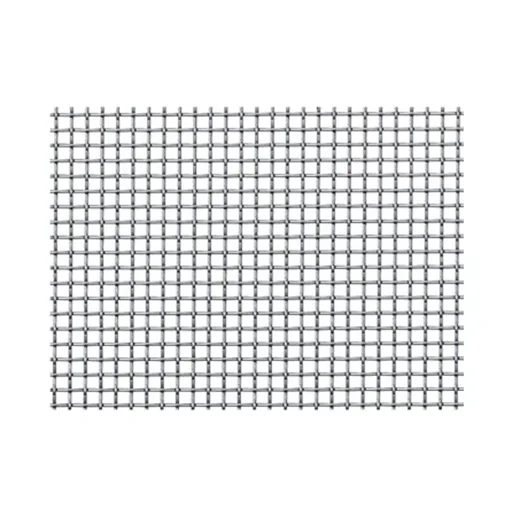

Monel Netting Wire Mesh
Monel Welded Wire Mesh
Monel Woven Wire Mesh
Monel Wire Mesh Applications & Industries
- Marine & offshore engineering — seawater filters, desalination screens, marine hardware
- Chemical & petrochemical processing — acid handling, catalyst support grids, chlorinated solvent filtration
- Oil & gas industry — vessel internals, outlet collectors, hydrocarbon processing equipment, distillation of petroleum crude
- Industrial heat exchangers, condensers, and evaporators
- Dearating heaters — removal of oxygen and dissolved gases from boiler feedwater
- Aerospace & defense — non-magnetic instrumentation components
- Automotive industry and fluid piping systems
- Pulp & paper, dairy & food processing, and textile machinery
- Power plants and energy industries
- Water and industrial waste treatment projects
Comparison Tables of Monel Wire Mesh
Monel 400 vs Monel K500 Wire Mesh
|
Parameter |
Monel 400 |
Monel K500 |
|---|---|---|
|
Best for |
General corrosion resistance, general-purpose filtration |
High-strength applications needing corrosion resistance + hardness |
|
Relative Strength |
Moderate |
Significantly higher (age-hardened) |
|
Typical Use Case |
Seawater filters, chemical processing screens |
Pump shafts, fasteners, high-stress marine hardware mesh |
|
Cost |
Lower |
Higher |
Monel Wire Mesh vs Other Alloy Wire Mesh
|
Parameter |
Monel Wire Mesh |
Inconel Wire Mesh |
Stainless Steel (SS316) Wire Mesh |
|---|---|---|---|
|
Primary Strength |
Corrosion resistance in reducing acids & seawater |
High-temperature strength & oxidation resistance |
General corrosion resistance, cost-effective |
|
Max Operating Temp. |
≈ 700°C |
≈ 1000°C+ |
≈ 870°C |
|
Best Environment |
Marine, acidic, reducing conditions |
High-heat, oxidizing conditions |
Mild-to-moderate corrosive environments |
|
Relative Cost |
High |
Higher |
Lower |
Manufacturing Process & Quality Control
- Raw material sourcing — Monel wire procured from approved, traceable mills with mandatory mill certificates
- Wire drawing & diameter control — precision drawn to the specified gauge before weaving
- Weaving/welding — plain, twill, dutch, five-heddle, welded, or hexagonal construction on calibrated looms
- Dimensional & opening inspection — mesh count, wire diameter, and open area verified against ASTM B164/ANSI AWCI tolerances
- Chemical & mechanical testing — composition verification and tensile/yield testing per batch
- Surface finishing — mill finish as standard; PTFE coating on request
- Packing & dispatch — moisture-protected roll packing suitable for domestic transit and export shipping
Certifications & Standards
- ISO 9001-aligned quality management process
- Manufactured to ASTM B164 / ASME SB164
- Mesh dimensional compliance with ANSI/AWCI-01-1992 and ASTM E2016-11
- Mill Test Certificates (MTC) / Test Certificates as per EN 10204 3.1 provided on request
- HTS/HS Code 7508.10.0000 for export documentation
Monel Wire Mesh Price in India
The Monel Wire Mesh price in India depends on the alloy grade, wire diameter, mesh count, width, length, weave type, quantity, and surface finish. Market conditions for nickel and copper can also affect the final cost. Kalpataru Piping supplies Monel Wire Mesh in customized specifications for industrial applications. Contact us with your required mesh size and quantity to receive the latest price and a project-specific quotation.
