Ready stock of Copper Aluminium Bimetal Sheets, AI-Cu Bimetal Strips, and Bimetallic Plates. Leading Bimetal Sheet Manufacturer, Supplier, and Exporter with fast delivery. Offering high quality BI Metal Sheets in customized sizes at the best prices.
Bimetal sheets are manufactured materials, consisting of bonding two metals into one composite layer, which cannot be separated. The most popular is the copper-aluminium bimetal sheet, in which pure aluminium is the base and copper is roll-bonded on it. It is totally a mechanical form of bonding, no electroplating or adhesives or alloying, and the end result is a strong, durable, and uniform structure of a bimetallic sheet. The two metals are diffused in the same process during manufacturing in a rolling-bonding process, which provides a permanent joint. These bi-metal sheets are composite sheets that incorporate the great electrical conductivity, the thermal conductivity of copper and the properties of aluminium, which are lightweight, corrosion-resistant and economical. Since the two metals do not expand equally with temperature there are bimetallic sheets that can be bent when there is a change in temperature hence permitting bimetallic sheets to be used in temperature-sensitive instruments. Copper-aluminium bimetal sheets are made to global standards, as they provide uniform mechanical strength, conductivity, as well as corrosion protection. The roll-bonded construction ensures that the building does not weaken under different temperatures, hence it is applicable in harsh conditions.
Applications of Bimetal Sheets
The bimetal slatting sheets are suited to heavy welded products which do not re-annal and are used in battery connections, chemical processing, aerospace applications, food processing, and in the production of synthetic fibres. Their high corrosion resistance is appropriate to be use under acidic environments, sulfuric acid, hydrochloric acid, anhydrous hydrofluoric acid, non-aerated organic acid, and in high-temperature conditions to dry chlorine gas and hydrogen chloride, as in the production of vinyl chloride monomers. Copper-aluminium bimetal sheets find extensive application in industries in electrical components such as circuit breakers, busbars, auto and aerospace parts, which utilize it as a lightweight material with good heat transfer, and cookware, including roofing and cladding.
Bimetallic Sheets Suppliers & Manufacturers
Kalpataru Piping Solutions is a reliable manufacturer and supplier of Bi-Metal Sheets, Copper Aluminium Bimetall Sheets, Bimetallic Plates, and AI-Cu Bimetall Strips, and is based in India. Our product range is extensive, and we are in the business of producing bimetallic products which have been designed using an improved roll-bonding process; whereby two dissimilar metals are usually copper and aluminium permanently bonded to achieve high conductivity, strength and corrosion resistance. Our bimetal sheets are done in various sizes, thicknesses and tailored to meet the requirements of industries. They are known to be dimensionally accurate, have high bonding strength and remain stable in performance.
Check the latest Bi Metal Sheet, Bimetallic Wear Plate at the best price. Contact us to get the Copper Aluminum Bimetal sheets detailed price list.

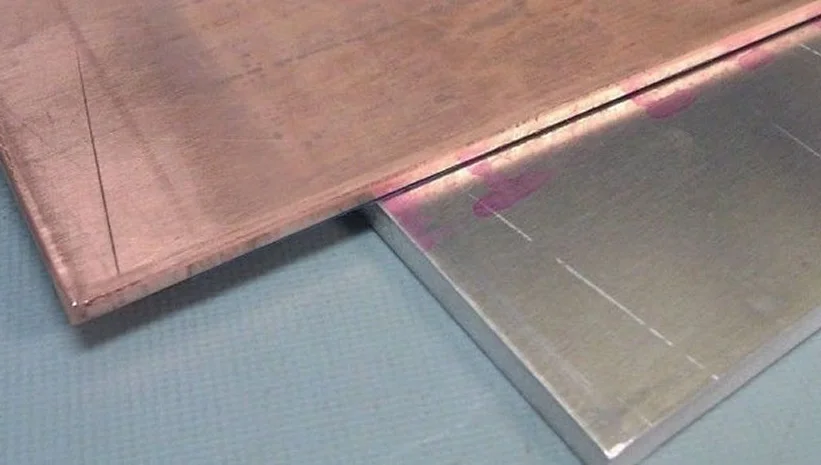

Bimetal Sheets
Bimetalic Wear Plate

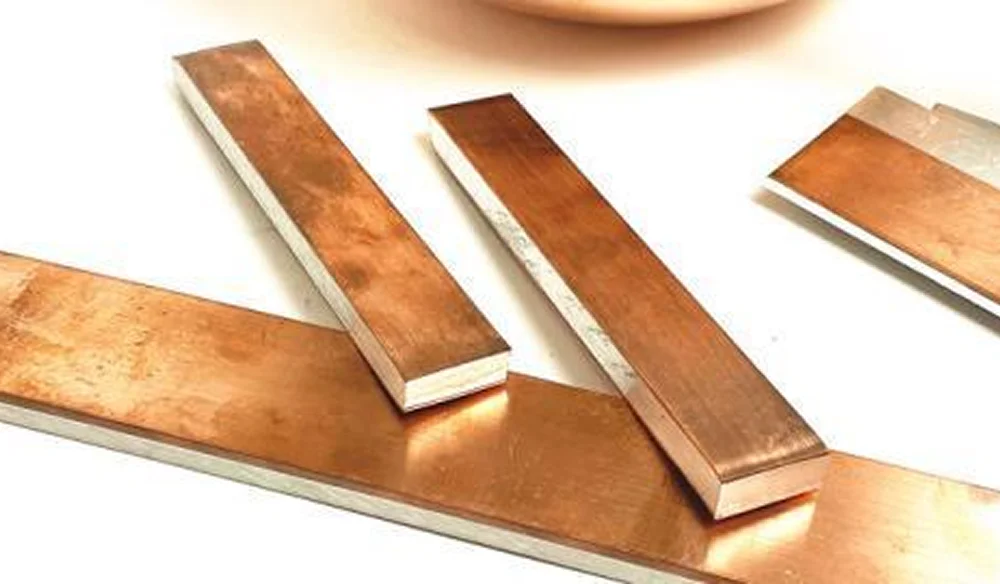

Copper Aluminum Bimetal Strips
Kalpataru Piping Solutions specializes in selling a wide variety of Bi-Metal Sheets, Copper Aluminium Bimetal Sheets, Bimetallic plates, and AI-Cu Bimetal strips at very competitive prices. The products are well tested in quality and safely packed in wooden or steel boxes to avoid damage when transporting the product. You might need bimetallic sheets, wear plates or copper-aluminium bimetal strips, in any case, we assure you of the latest delivery and at the finest price.
Contact us today to get the latest price list for Copper Aluminium Bimetal Strips and Bimetal Sheets tailored to your project needs.
Bimetallic Sheets Specifications
These requirements define standard thickness, grade, hardness and sizes of our bimetallic sheets, so that they are highly strong, durable, and meet Global manufacturing standards such as AISI, ASTM, DIN, and GB.
| Thickness | 1.5mm – 2.0mm |
| Material Grade | 80/20 (aluminium + copper) |
| Hardness | 60 HRC |
| Length | 2920 mm |
| Width | 1460 mm |
| Standrad | AISI,ASTM,DIN,GB |
Copper Aluminium Bimetal Sheets Technical Parameters
This segment identifies the central bonding structure of our Cu-Al and Al-Steel blocks, the distribution of the thickness of the base and cover layers, so as to achieve an excellent conductivity and mechanical strength.
| Bimetal Sheets | Base layer thickness(mm) | Cover layer thickness(mm) |
| Cu-Al block | Cu δ38~40 | Al δ10~12 |
| Al-Steel block | Steel δ38~40 | Alδ10~12 |
Chemical Composition of Bimetal Sheets
The following are the levels of purity of copper and aluminium in our bimetal sheets. These chemical values ensure high conductivity, stability, and stability in both electrical and industrial applications.
| Material Grade | Copper T2, Aluminum 1060 |
| Copper purity | 99.9%min |
| Aluminum purity | 99.6%min |
| Ratio for Aluminum : Copper (Volume) | 80% : 20% |
| Ratio for Aluminum : Copper (Weight) | 55% : 45% |
| Density(g/cm3) | 3.8 |
| Resistivity(Ω mm2/m) | <0.019 |
| Tensile Strength(N/mm2) | more than 120 |
| Elongation (%) | 27-38 |
| Peeling Strength(N/mm) | more than 12 |
| Hardness | H24 (half hard) |
Physical Properties of Aluminium Copper Bi metal Sheets
These physical characteristics point to the great conductivity of electricity, thermal conductivity, density, as well as corrosion characteristics of the Al Cu bimetal sheets, thus guaranteeing sound service at both electrical and industrial practices.
| Element | Tensile Strength | Shearing Strength | Heat Temperature | Interface Combination Rate | Interface Full Figure |
|---|---|---|---|---|---|
| Bimetal Sheets | ≥150 Mpa/mm2 | ≥95 Mpa/mm2 | ≦ 400 ℃ | 100% | undulant |
Mechanical Properties of Bimetallic Sheets
This part includes the mechanical power, toughness, and the ability to stretch of the sheets and the stability of the bonding, which demonstrates its longevity, shapeability, and resistance to high mechanical and thermal pressure.
| Property | Aluminum | Copper |
|---|---|---|
| Purity(min) | 99.5% | 99.9% |
| Composition | ||
| By Volume | 80% | 20% |
| By Weight | 55% | 45% |
| Property | Units | COPAL |
| Density at 20º C | Gms/cm³ | 3.95 |
| Max.Electrical Resistivity at 20º C | µ/cm | 2.6 |
| Max.Electrical conductivity at 20º C | % IACS | 65 |
Other Available Products of Bimetal Sheets
Explore our other range of bimetal solutions that include Cu-Al strips, plates, connectors, blocks, transition joints, and we also provide custom-sized bimetal components that are designed for electrical, automotive, and industrial use.
| Bimetal Sheets | Copper Aluminum Bimetal Strips |
| Bimetal Clad Plate | Bimetallic Plates |
| Copper Aluminium Sheets | Gold Silver Bimetal Sheet |
| Aluminium – Copper Bi-metal | Bimetal Strip Material |
| Ai-cu Bi-metal Sheet | Bi Metal Sheet |
| Electrical Transition Joint Sheet | Copper Aluminium Bimetal Sheet |
| Bimetal Strips | Aluminum Copper Bimetal Sheet |
| Aluminium – Copper Bimetal Sheets | Bimetal Sheets |
| Copper Clad Sheets | Copper Silver Bimetal Sheet |
| Copper Aluminium Sheets | Cu Al Bimetallic Sheet |
| Aluminium Clad Copper Sheets | Bimetal Clad Plate |
| Copper Clad Aluminium Sheets | Bimetallic Sheets |
| Bimetallic Strip | Galvanic Electro-corrosion Bimetal Sheets |
| Bimetallic Strip Metals | Bimetallic Wear Plate |
Bimetallic Sheet Price
We offer high-quality bimetallic sheets designed to meet the diverse needs of industrial applications. The price of bimetallic sheets depends on key factors such as the copper and aluminum composition, sheet thickness & dimensions. These variables lead to different pricing for different sizes or specifications. Request the best quote or discuss your specific needs; connect with our sales team. We are committed to provide cost-effective and durable bimetallic sheets without compromising on quality.
Frequently Asked Questions About Bimetal Sheets
What is the use of a bimetal sheet?
Bimetal sheets are used in electrical applications for connecting dissimilar metals like copper & aluminum. They help to reduce galvanic corrosion in cable lugs, busbars, circuit breakers, motors & thermal switches.
