Alloy 20 Fasteners Manufacturer & Supplier in India
The alloy 20 fasteners are manufactured by mixing different metals in proper proportions that include nickel 32.5%, 19% chromium, carbon, copper, molybdenum, and many more. It comes in different types such as bolts, screws, nuts, washers, rivets, and anchors. Many wood industries use fasteners to connect two structures together, which is why it’s also known as carpenter 20. The mechanical properties of this material make it very durable and resistant to corrosion. It comes with 80 ksi strength and a minimum 35ksi of yield strength. The alloy 20 stainless steel stud bolts are commonly used to connect two joints of any components. It comes in different sizes, from 1-2 inches to 1-½ inches. The other type that is used by different industries is Alloy 20 Hex nuts to tighten the two components and they are easy to tighten and loosen. On the other hand, to join two components together without any screw head or bolt, you need to use ASTM B473 Alloy 20 Threaded Bolts. Kalpataru Piping is the major manufacturer and supplier of alloy 20 fasteners in different forms, sizes and finishes. These fasteners become essential to fill the gap between two components and absorb the stress and vibration due to heavy loads. To get the accurate pricing and more details about the Alloy 20 N08020fasteners contact us.
Table of Content
- Specifications of Alloy 20 Fasteners
- Alloy 20CB3 Fasteners Chemical Compositions
- ASME SB 473 ALLOY 20 Fasteners Physical Properties
- UNS N08020 Alloy 20 Fasteners equivalent grades
- DIN 2.4660 Fasteners Thermal Properties
- Different Types of Alloy 20 Fasteners
- Applications of Alloy 20 Fasteners
- Frequently Asked Questions (FAQ)
Specifications of Alloy 20 Fasteners
Alloy 20 fasteners manufacturer, Refer 2.4660 Alloy 20 U Bolts dimensions metric, Check Alloy 20 Nuts And Bolts Specifications
|
Feature |
Technical Details |
|
Specifications |
ASTM B473, B564 / ASME SB473, SB564 |
|
Dimensions |
DIN, ISO, ASTM, JIS, BS, GB, IS, and all International Standards |
|
Size Range |
Metric: M3 – M56 Imperial: 3/16″ to 2″ |
|
Length |
3 mm to 200 mm (Custom sizes available) |
|
Bolt & Screw Types |
Hex Head, Hex Set, Socket Head Cap, Allen Cap, Machine, Pan Head, Cap, Wing, Mushroom Head Square Neck, T-Head, Eye Bolt, Structural Bolts |
|
Nut Types |
Hex Nut, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nut, Square Nut, Wing Nut |
|
Washers & Anchors |
Spring Washers, Flat Washers, Marine Anchors, Socket Hexagon Head Screw Anchor Bolt |
|
Studs & Rods |
Stud Bolts, U-Bolts, J-Bolts, Foundation Bolts, Threaded Rods |
Alloy 20CB3 Fasteners Chemical Compositions
The alloy 20 fasteners come in different types, and their detailed chemical composition is listed below.
|
Grade |
Ni |
C |
Mn |
P |
S |
Si |
Cr |
Nb |
Mo |
Cu |
|
Alloy 20 |
32 – 38 |
0.02 max |
1 – 2 |
0.02 max |
0.005 max |
0.7 max |
19 – 21 |
0.1 – 0.3 |
2 – 3 |
3 – 4 |
ASME SB 473 ALLOY 20 Fasteners Physical Properties
The fastener’s tensile strength and elongation are important for the structure’s shelf life. The detailed physical properties of Alloy 20 fasteners are listed below.
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| Alloy 20 | 8.1 g/cm³ | 1443 °C (2430 °F) | 80,000 Psi / 551 MPa | 35,000 Psi / 241 MPa | 30% |
UNS N08020 Alloy 20 Fasteners equivalent grades
If Looking for Alloy 20 Nuts And Bolts at lowest price, stock Alloy 20cb3 Studs, Alloy 20 N08020 Shoulder Bolts as per Standards, Get discount rate on Alloy 20 Fasteners
DIN 2.4660 Fasteners Thermal Properties
The thermal properties of the fasteners are important to know, so the detailed information on this material’s thermal properties is listed below.
| Grade | Thermal Expansion Coefficient (Metric) | Thermal Expansion Coefficient (Imperial) | Thermal Conductivity (Metric) | Thermal Conductivity (Imperial) |
| Alloy 20 | 14.7 μm/m °C (@20−100 °C) | 8.17 μin/in °F (@68−212 ° F) | 12.3 W/m⋅K | 85.4 BTU⋅in/hr⋅ft 2 ⋅ ° F |

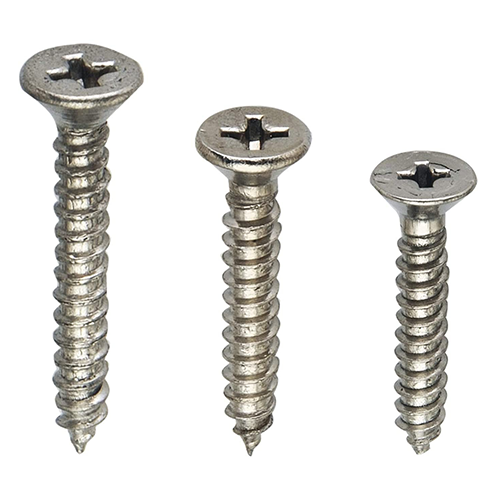

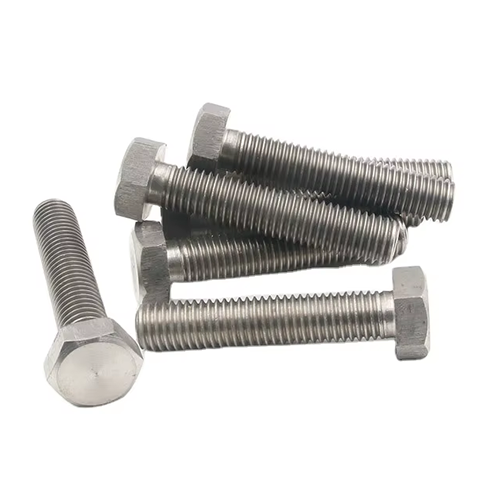

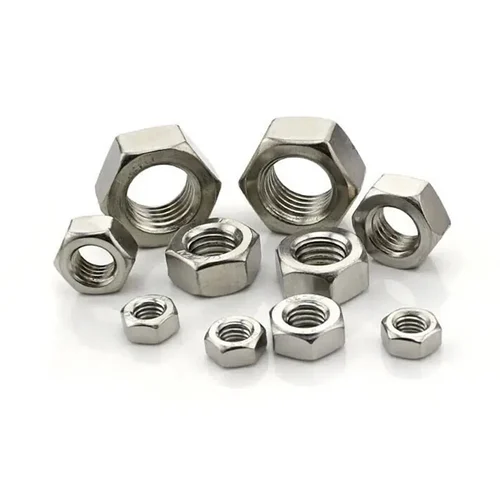

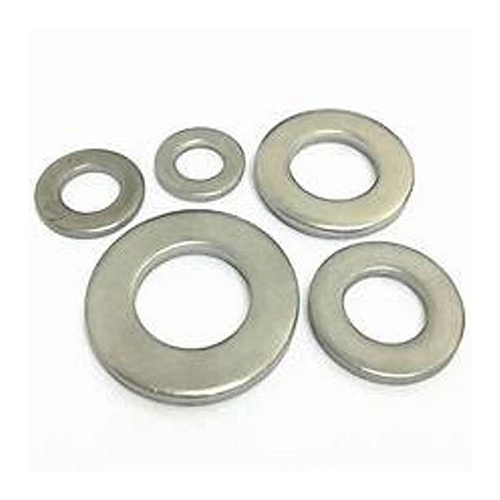

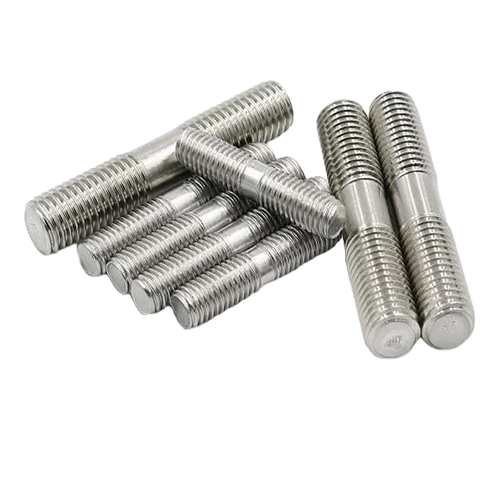

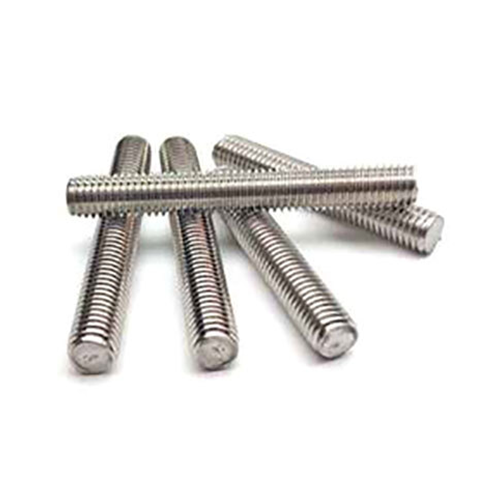

Different Types of Alloy 20 Fasteners
Applications of Alloy 20 Fasteners
Frequently Asked Questions ( FAQ)
What are Alloy 20 Fasteners?
Alloy 20 fasteners are corrosion-resistant bolts, nuts, screws, and studs made for use in acidic and harsh chemical environments.
What material is used in Alloy 20 Fasteners?
They are made from Alloy 20, a nickel-iron-chromium alloy with added copper and molybdenum for improved corrosion resistance.
Are Alloy 20 Fasteners corrosion-resistant?
Yes, Alloy 20 fasteners offer excellent resistance to sulfuric acid, chlorides, and other aggressive chemicals.
What types of Alloy 20 Fasteners are available?
The common types include bolts, nuts, washers, studs, threaded rods, and screws in various sizes and standards.
How do you choose the right Alloy 20 Flange for your application?
Yes, Alloy 20 fasteners can handle moderately high temperatures while maintaining strength and corrosion resistance.
