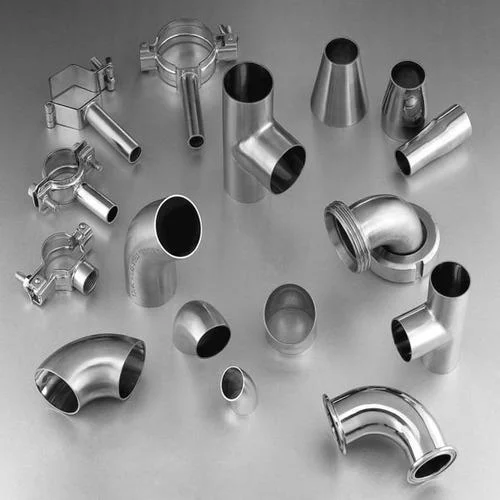

Alloy 20 Fittings Manufacturers in India
The Alloy 20 Fittings are made up of different metals that include nickel-iron-chromium alloy, that help a structure to resist corrosion and aggressive chemicals. It’s a high-quality alloy that is manufactured with the specification of UNS N08020 and ASME SB366; these standards ensure that the alloy is properly made and can handle high-pressure in industrial applications. Many pharmaceutical and petrochemical industries use alloy fittings in their structure. Which make their structure more durable and increases their shelf life. Kalpataru Piping is the most reliable manufacturer and supplier of Alloy 20 Fittings, and also other alloy products that include round bars, pipe and tube, and flanges, etc. All of our product goes through high testing and quality checks to match the industry level and help engineers build their structures easily.
Table of Content
- Specification of ASTM B366 Alloy 20 Fittings
- Alloy 20 Fittings Chemical Composition
- Mechanical Properties of Alloy 20 ASTM B366 Fittings
- Equivalent Grades of Alloy 20 Fittings
- Different Types of Alloy 20 ASTM B366 Fittings
- DIN 2.4660 Alloy 20 Weld Fittings Weight Chart
- Dimension chart of UNS N08020 Alloy 20 Fitting
- Pressure Rating Chart of ASTM B366 WP20CB Fitting
- Applicational and Industrial Use of Alloy 20 Fittings
- Frequently Asked Questions (FAQ)
Specification of ASTM B366 Alloy 20 Fittings
|
Feature |
Details |
|
Specifications |
ASTM B366 / ASME SB366 |
|
Dimensional Standards |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
|
Size Range |
Seamless: 1/2″ – 10″ Welded: 1/2″ – 48″ |
|
Type |
Seamless / Welded / Fabricated |
|
Schedule |
Sch 5 to Sch XXS |
|
Thickness |
20 Swg. to 10 Swg. Sch. 10, Sch. 40, Sch. 80, etc. |
Alloy 20 Fittings Chemical Composition
The Alloy 20 ASTM B366 Pipe Fittings are made with different elements, and the detailed chemical composition information is provided in the table.
|
Grade |
Ni |
Fe |
Cr |
Cu |
Mo |
Mn |
Si |
C |
P |
S |
|
Alloy 20 |
32.0–38.0 |
29.85 min |
19.0–21.0 |
3.0–4.0 |
2.0–3.0 |
2.0 max |
1.0 max |
0.07 max |
0.045 max |
0.035 max |
Mechanical properties of Alloy 20 ASTM B366 Fittings
To know about the tensile strength and other mechanical properties of the material is important. So the table below provides information regarding the mechanical properties of Alloy 20 Fitting.
|
Grade |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2% Offset) |
Elongation |
|
Alloy 20 |
8.1 g/cm³ |
1443 °C (2430 °F) |
80,000 Psi (551 MPa) |
35,000 Psi (241 MPa) |
30% |
Equivalent Grades of Alloy 20 Fittings
The Alloy 20 Fitting is manufactured in different standards, and some of the common standards are given below.

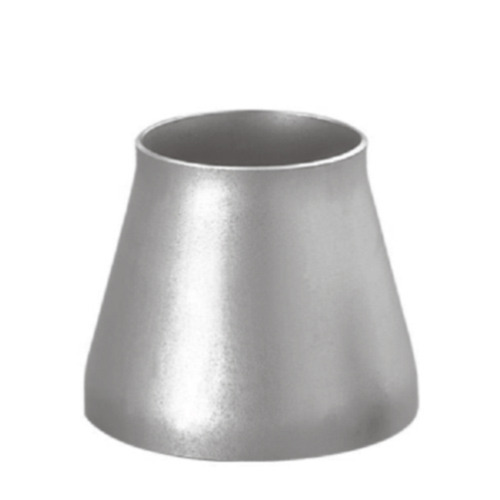

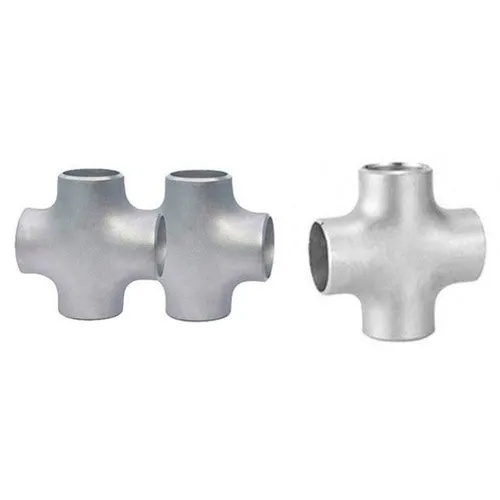

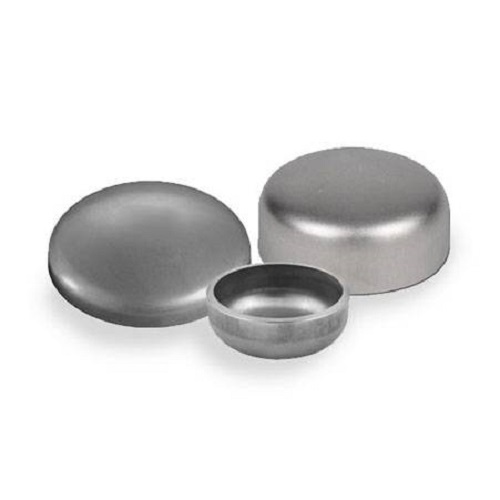

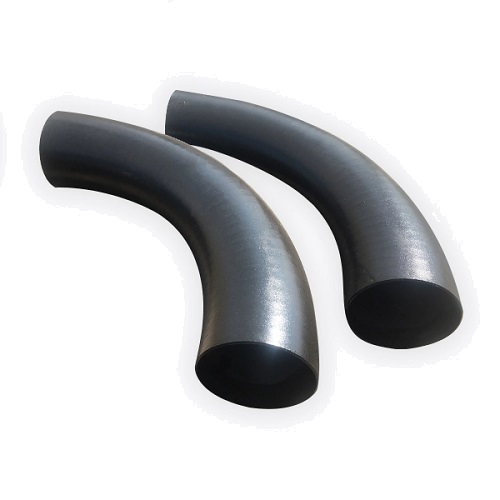

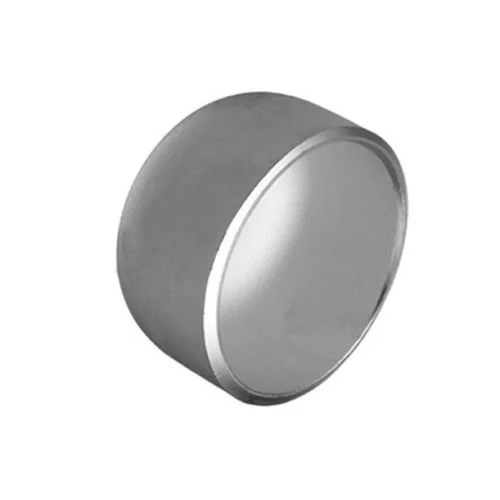

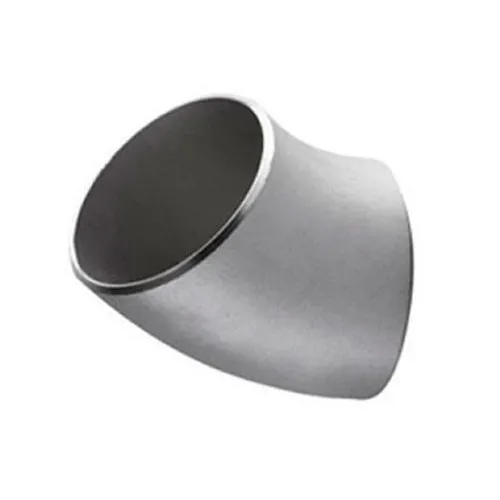

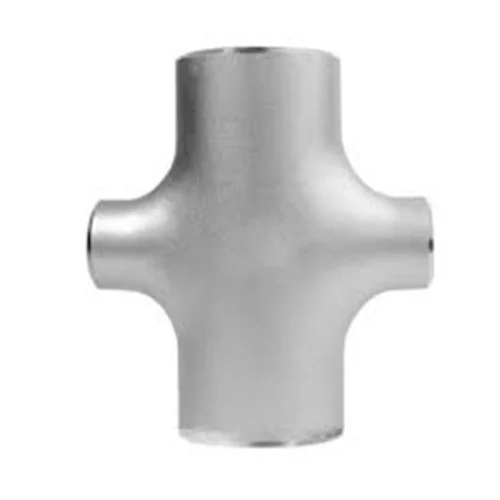

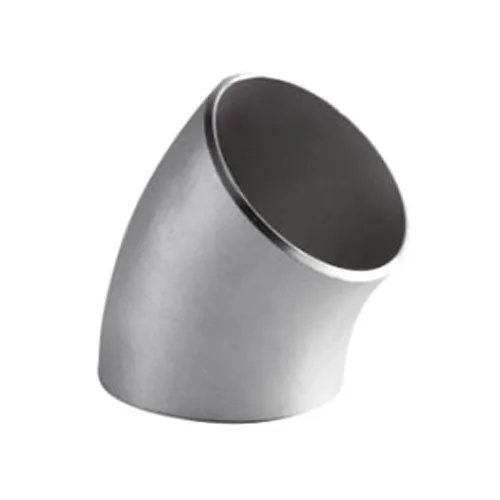

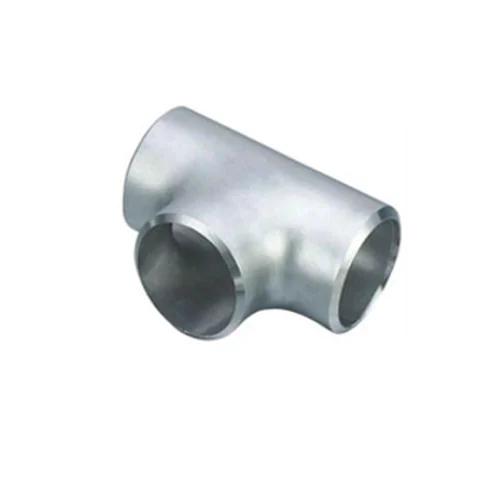

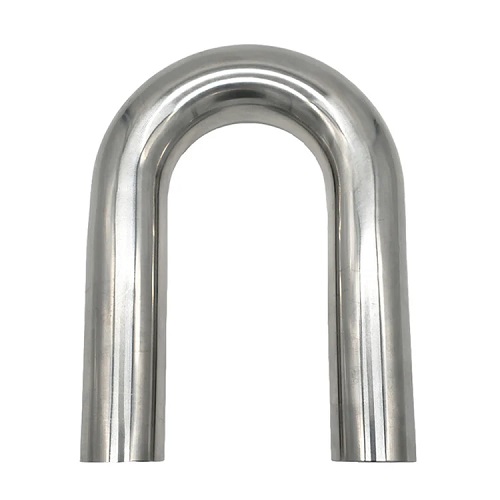

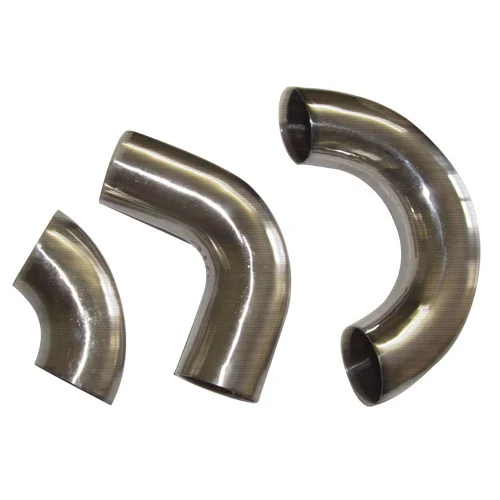

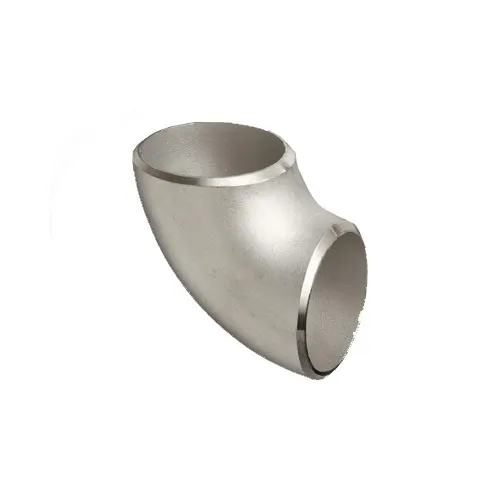

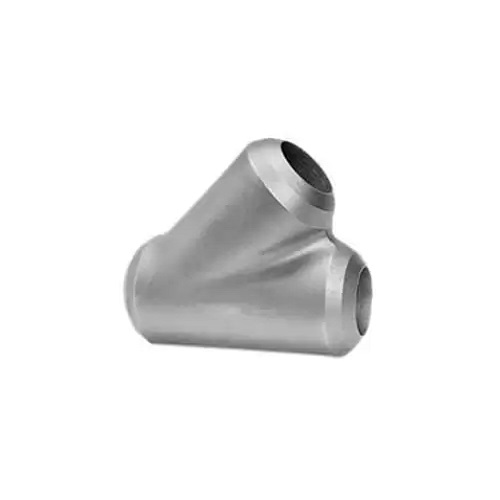

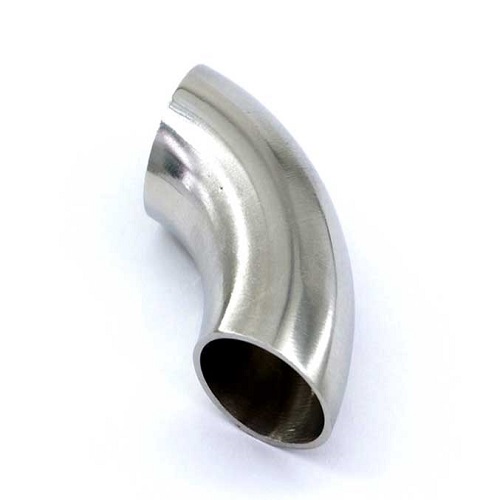

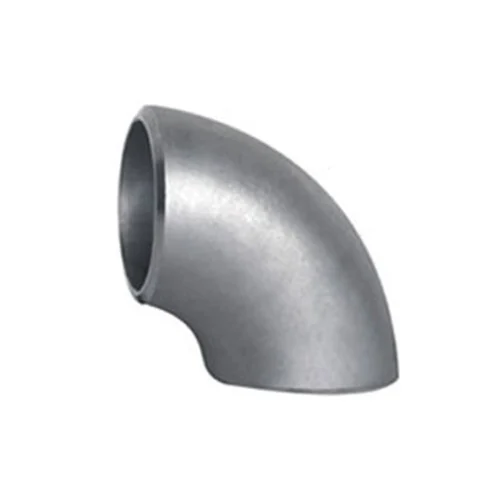

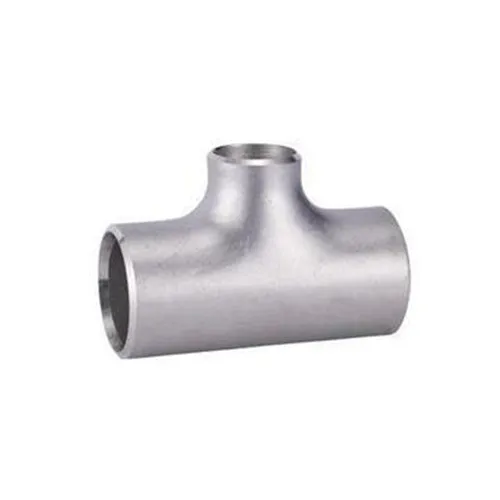

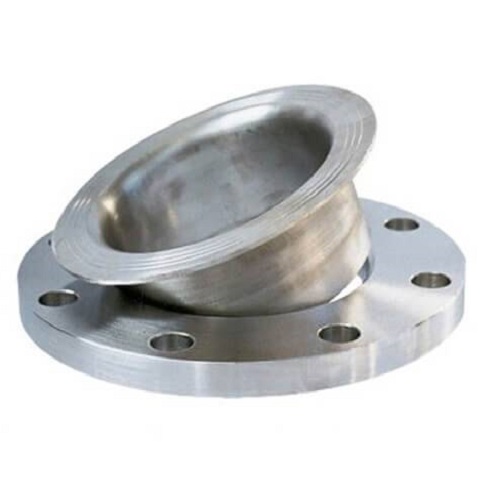

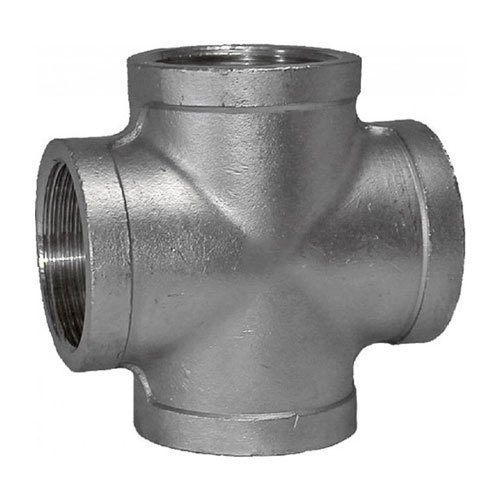

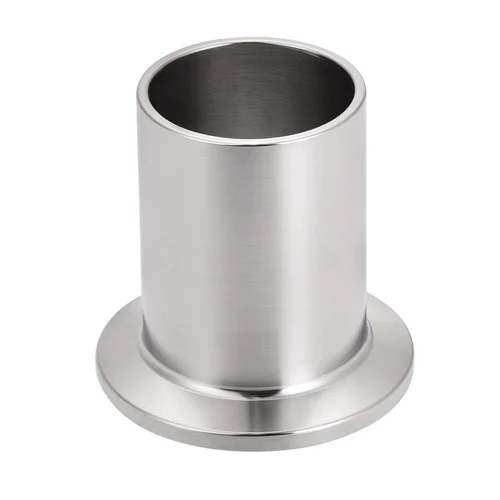

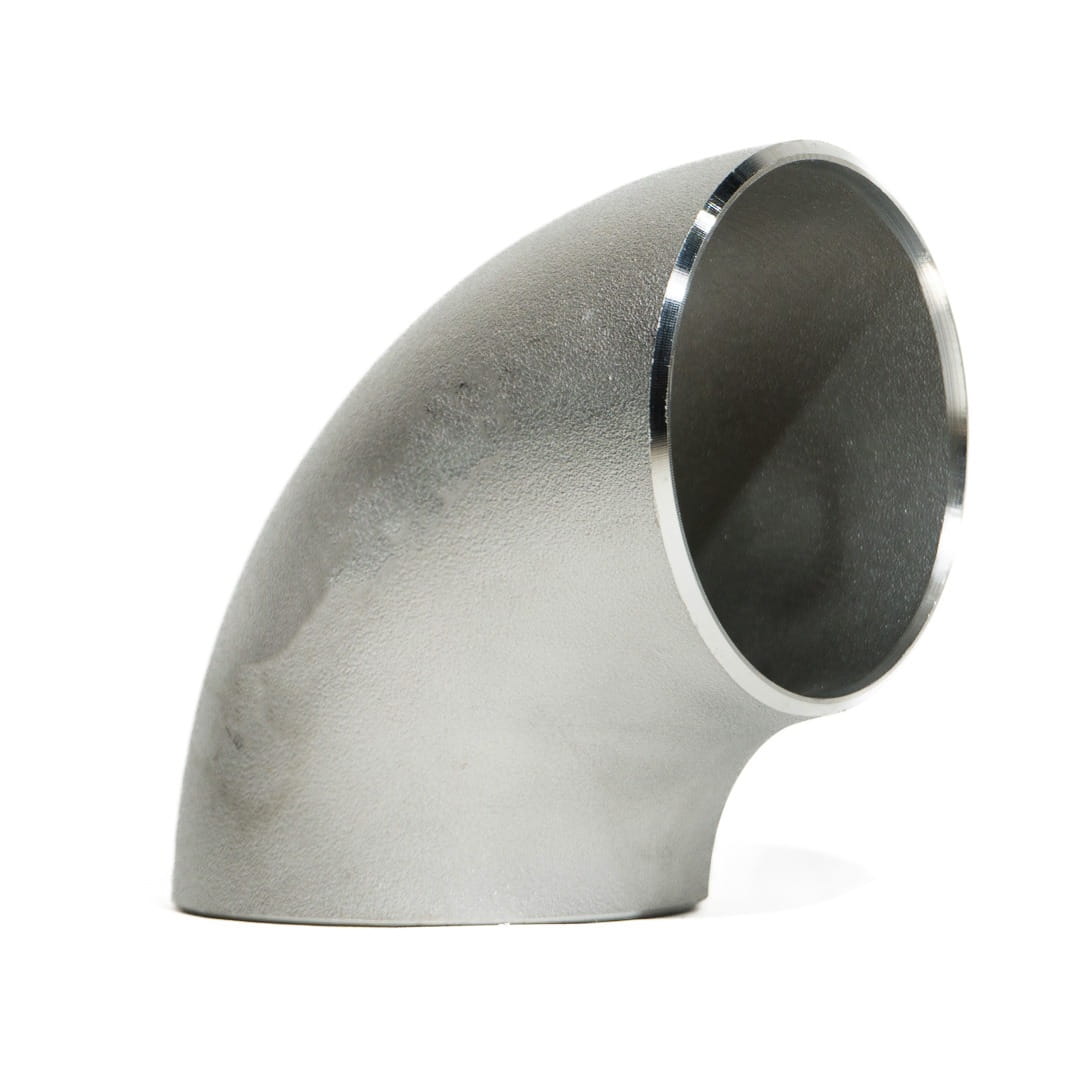

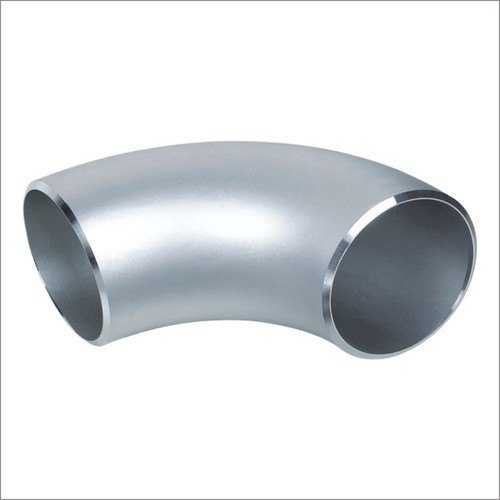

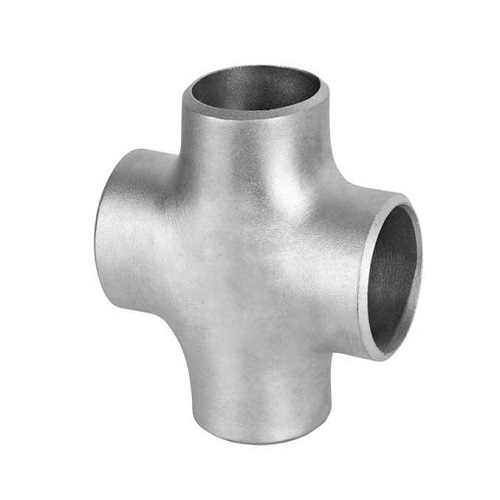

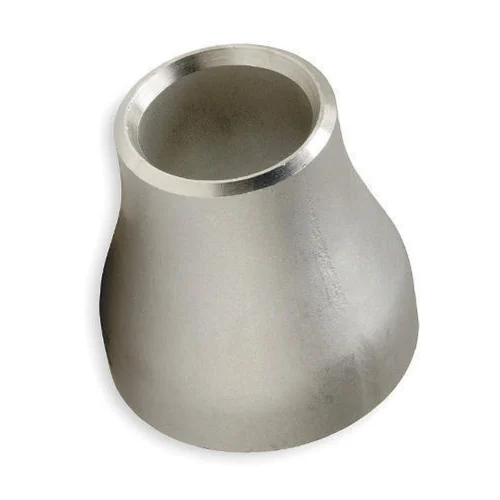

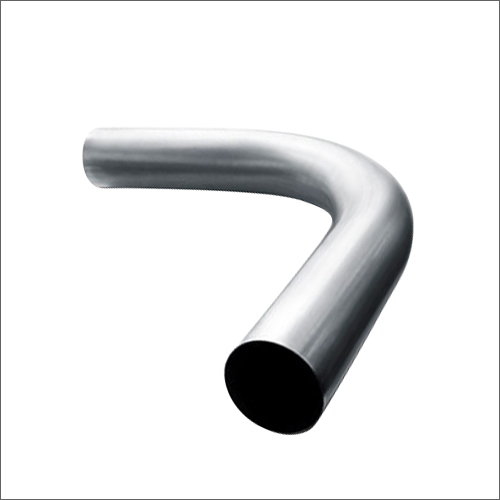

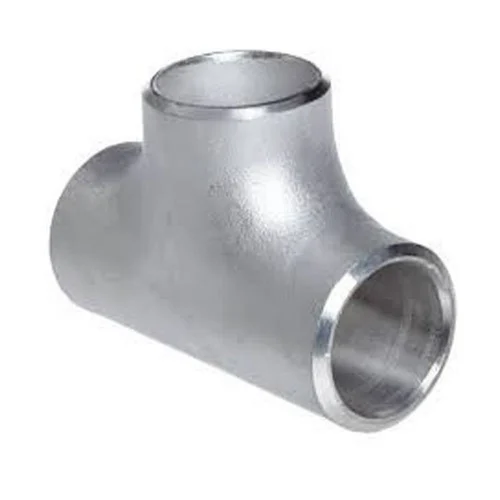

Different Types of Alloy 20 ASTM B366 Fittings
DIN 2.4660 Alloy 20 Weld Fittings Weight Chart
The alloy 20 fitting comes in different weights, and its information is listed below.
| DN (NP Sizes) | Schedule 40S (Ecc/Con Reducer) | Schedule 40S (Reducing Tee) | Schedule 10S (Ecc/Con Reducer) | Schedule 10S (Reducing Tee) | Schedule 80S (Ecc/Con Reducer) | Schedule 80S (Reducing Tee) |
| 200 × 150 | 6.74 | 18.82 | 3.19 | 14.08 | 10.12 | 25.31 |
| 150 × 100 | 4.07 | 11.94 | 1.96 | 7.10 | 5.96 | 11.97 |
| 150 × 80 | 3.95 | 9.68 | 1.82 | 6.86 | 5.51 | 11.57 |
| 100 × 80 | 1.74 | 4.64 | 0.87 | 3.04 | 2.33 | 6.79 |
| 100 × 50 | 1.50 | 4.48 | 0.78 | 2.94 | 1.95 | 6.55 |
| 80 × 50 | 1.00 | 2.91 | 0.55 | 1.56 | 1.79 | 3.91 |
| 50 × 40 | 0.45 | 1.15 | 0.31 | 0.76 | 0.59 | 1.43 |
| 50 × 25 | 0.40 | 1.10 | 0.28 | 0.73 | 0.54 | 1.37 |
| 40 × 25 | 0.26 | 0.76 | 0.19 | 0.60 | 0.34 | 0.90 |
Dimension chart of UNS N08020 Alloy 20 Fitting
The accurate dimensions of the Alloy 20 are provided in the following table.
|
Nominal Pipe Size (inches) |
Outside Diameter (mm) |
Outside Diameter (inches) |
180° LR C-C (inches) |
180° LR B-F (inches) |
90° LR C-F (inches) |
90° SR C-F (inches) |
45° LR C-F (inches) |
Radius (inches) |
|
1/2 |
21.3 |
0.84 |
3 |
1 1/2 |
1 1/2 |
— |
5/8 |
1 1/2 |
|
3/4 |
26.7 |
1.05 |
2 1/4 |
1 11/16 |
1 1/8 |
— |
7/16 |
1 1/8 |
|
1 |
33.4 |
1.315 |
3 |
2 3/16 |
1 1/2 |
1 |
5/8 |
1 1/2 |
|
1 1/4 |
42.2 |
1.66 |
3 3/4 |
2 3/4 |
1 7/8 |
1 1/4 |
25/32 |
1 7/8 |
|
1 1/2 |
48.3 |
1.90 |
4 1/2 |
3 1/4 |
2 1/4 |
1 1/2 |
1 1/8 |
2 1/4 |
|
2 |
60.3 |
2.375 |
6 |
4 3/16 |
3 |
2 |
1 3/8 |
3 |
|
2 1/2 |
73.0 |
2.875 |
7 1/2 |
5 3/16 |
3 3/4 |
2 1/2 |
1 3/4 |
3 3/4 |
|
3 |
88.9 |
3.50 |
9 |
6 1/4 |
4 1/2 |
3 |
2 |
4 1/2 |
|
3 1/2 |
101.6 |
4.00 |
10 1/2 |
7 1/4 |
5/4 |
3 1/2 |
2 1/4 |
5 1/4 |
|
4 |
114.3 |
4.50 |
12 |
8 1/4 |
6 |
4 |
2 1/2 |
6 |
|
5 |
141.3 |
5.56 |
15 |
10 5/16 |
7 1/2 |
5 |
3 1/8 |
7 1/2 |
|
6 |
168.3 |
6.625 |
18 |
12 5/16 |
9 |
6 |
3 3/4 |
9 |
|
8 |
219.1 |
8.625 |
24 |
16 5/16 |
12 |
8 |
5 |
12 |
|
10 |
273.1 |
10.75 |
30 |
20 3/8 |
15 |
10 |
6 1/4 |
15 |
|
12 |
323.9 |
12.75 |
36 |
24 3/8 |
18 |
12 |
7 1/2 |
18 |
Pressure Rating Chart of ASTM B366 WP20CB Fitting
The capability to handle the pressure of the material decides the shelf life of the structure; that’s why the detailed pressure rating of this material is given below.
|
Temperature (°F) |
Temperature (°C) |
Class 150 |
Class 300 (1 1/4 – 2″) |
Class 300 (1/4 – 1″) |
Class 300 (2 1/2 – 3″) |
|
-20 to 150 |
-29 to 66 |
300 psi |
1500 psi |
2000 psi |
1000 psi |
|
200 |
93 |
265 psi |
1350 psi |
1785 psi |
910 psi |
|
250 |
121 |
225 psi |
1200 psi |
1575 psi |
825 psi |
|
300 |
149 |
185 psi |
1050 psi |
1360 psi |
735 psi |
|
350 |
177 |
150 psi |
900 psi |
1150 psi |
650 psi |
|
400 |
204 |
— |
750 psi |
935 psi |
560 psi |
|
450 |
232 |
— |
600 psi |
725 psi |
475 psi |
|
500 |
260 |
— |
450 psi |
510 psi |
385 psi |
|
550 |
288 |
— |
300 psi |
300 psi |
300 psi |
Different Surface Finish of ASTM B366 WP20CB Alloy 20 Fittings
The Alloy 20 piping fittings are produced in different finish that some of the common ones listed below.
- Passivated Finish
- Shot Blasted or Sand Blasted Finish
- Bright Annealed (BA) Finish
- Mill Finish
- Polished Finish
- Coated Finish
- Bead Blast Finish
- Hot-Dip Galvanized Finish
- Heat-Treated Finish
UNS N08020 Alloy 20 Pipe Fittings HSN Code
The HSN code of the Alloy 20 Pipe fitting is given in the following table.
|
Product Name |
HSN Code |
|
Alloy 20 Pipe Fittings |
7307298090 |
Applicational and Industrial Use of Alloy 20 Fittings
Frequently Asked Questions (FAQ)
What are ASTM B366 Alloy 20 buttweld fittings?
ASTM B366 Alloy 20 buttweld fittings are corrosion-resistant pipe fittings made from Alloy 20, designed for welding into piping systems handling aggressive chemicals.
Are Alloy 20 fittings suitable for sulphuric acid?
Yes, Alloy 20 fittings are specifically designed to resist sulphuric acid corrosion and perform very well in acidic environments.
What are the seamless vs welded fittings sizes?
Seamless fittings are generally available in smaller sizes, while welded fittings are used for larger diameters and higher pressure requirements.
What certificates do you provide?
We provide EN 10204 3.1 Mill Test Certificates, including chemical composition, mechanical properties, and traceability details.
Which dimension standards do you follow (B16.9 / MSS)?
Alloy 20 fittings are manufactured according to ASME B16.9 and MSS SP-43 standards, based on size and application.
