Alloy 20 Forged Fittings Manufacturer & Supplier in India
The Alloy 20 Forged Fittings, also known as Carpenter 20 Forged Fittings, are designed to be more resistant to sulphuric acid and other hostile chemical atmospheres. These components are produced as per ASTM B564 Alloy 20 High Pressure Forged Pipe Fittings and DIN 2.4660 Forged Pipe Fittings to provide a perfect combination of corrosion resistance, strength and long service life. The chemical composition of the alloy 20 forged fittings usually comprises 32-38 % nickel, 19-21% chromium, and controlled amounts of molybdenum and copper, which prevent stress corrosion cracking and pitting.
Kalpataru Piping is a reputable Alloy 20 Forged Fittings Manufacturer in India that provides high-performance products that meet global quality and standards. The product lines consist of Alloy 20 Forged Threaded 90 deg Elbow, Alloy 20 Socket Weld Equal Tee, UNS N08020 Socket Weld 90 deg Elbow Trader, Alloy 20Cb-3 Socket Weld Union Stockist, Alloy 20 DIN 2.4660 Plug Dealer, and Alloy 20 Hex Bushing fittings. These fittings are made by using precision hot and cold forging methods, which increase pressure-handling capacity. They come in 1/8 to 4-inch sizes and with 2000, 3000, and 6000 pressure classes and are very popular in chemical processing, pharmaceuticals, petrochemicals, and specialty industries.
The ASTM B564 Alloy 20 Socket Weld Fittings and ASTM B564 Alloy 20Cb-3 Threaded Fittings would provide a minimum tensile strength of 551 MPa, yield strength of 241 MPa, and elongation of up to 30 %, which would provide excellent toughness and flexibility under operating conditions. Kalpataru Piping is a reputable ASTM B564 Alloy 20 Forged Tee Exporter and ASME SB564 Alloy 20 Forged Fittings Supplier in India, and thus maintains the stability of quality, dimensions, and complete material traceability, which will guarantee long-term safety of operations.
Table of Content
- Specification of Alloy 20 Forged Fittings
- UNS N08020 Alloy 20 Forged Fittings Chemical Composition
- ASTM B564 Alloy 20 Forged Fittings Physical Properties
- ASME B462 Alloy 20 Forged Fittings Equivalent Grades
- Types of Alloy 20 Forged Fittings
- Application Industries of Alloy 20 Forged Fittings
- Frequently Asked Questions (FAQ)
Specification of Alloy 20 Forged Fittings
|
Feature |
Details |
|
Grades |
Alloy 20 (UNS No. N08020), 2.4660 |
|
Dimensions |
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
|
Designation |
ASTM B366 / ASME SB366 |
|
Class/Pressure |
3000 LBS, 6000 LBS, 9000 LBS |
|
Size Range |
1/2″ NB to 4″ NB (15 NB to 100 NB) |
|
Connection Type |
Socket Weld (S/W), Screwed (SCRD), Threaded (NPT, BSP, BSPT) |
UNS N08020 Alloy 20 Forged Fittings Chemical Composition
The table provided below gives detailed information about the chemical composition of Alloy 20 Forged Fittings.
|
Grade |
C |
Mn |
Si |
S |
Cu |
Ni |
Cr |
Fe |
Mo |
P |
|
Alloy 20 |
0.07 max |
2.00 max |
1.00 max |
0.035 max |
3.00 – 4.00 |
32.00 – 38.00 |
19.00 – 21.00 |
29.85 min* |
2.00 – 3.00 |
0.045 max |
ASTM B564 Alloy 20 Forged Fittings Physical Properties
The physical properties tell about the tensile strength, elongation, and other properties of the material, and the detailed information about the Alloy 20 forged fitting is listed below.
|
Grade |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2% Offset) |
Elongation |
|
Alloy 20 |
8.1 g/cm³ |
1443 °C (2430 °F) |
80,000 Psi / 551 MPa |
35,000 Psi / 241 MPa |
30% |
ASME B462 Alloy 20 Forged Fittings Equivalent Grades
The alloy 20 is manufactured in different standards, and some of the common ones are listed below.
Types of Alloy 20 Forged Fittings
|
Socket Weld / Forged Fittings |
Threaded / Screwed Fittings |
|
Alloy 20 Forged Pipe Fittings |
Alloy 20 High Pressure Forged Fittings |
|
Alloy 20 Socket Weld Fittings |
Alloy 20 Threaded Fittings |
|

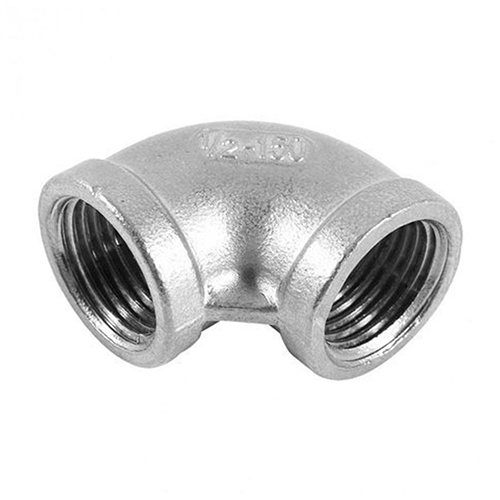

Alloy 20 UNS N08020 Socket Weld 90 Deg Elbow |
Alloy 20 Threaded 90 Deg Elbow |
|
Alloy 20 Socket Weld 45 Degree Elbow Suppliers |
ANSI Alloy 20 Screwed 45 Degree Elbow |
|

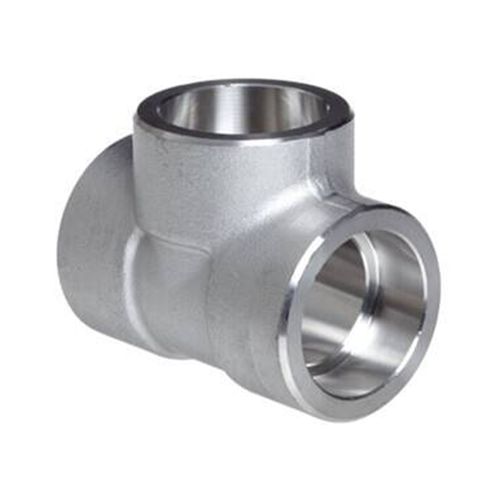

Alloy 20 Forged Tee Dealer |
Alloy 20 Threaded Tee Exporter |
|

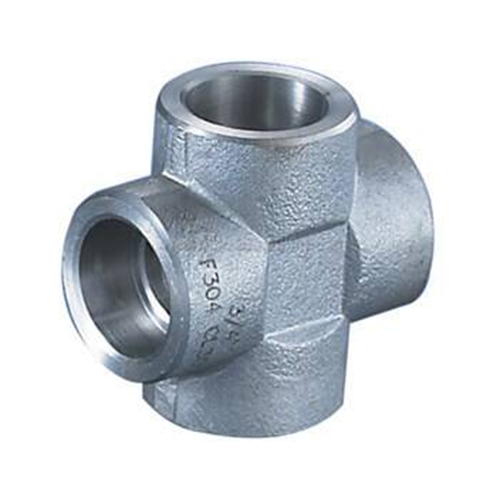

Alloy DIN 2.4660 Socket Weld Cross Stockholder |
Alloy 20 Threaded / Screwed Cross Distributors |
|

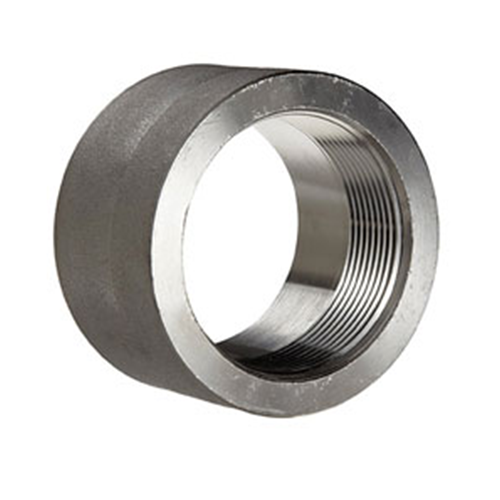

Alloy 20 Socket Weld Half Coupling |
Alloy 20 Threaded Half Coupling Manufacturer |
|
Alloy 20 Full Coupling |
Alloy 20 Alloy Coupling |
|
Alloy 20 Socket Weld Cap |
INCOLOY® Alloy 20 Screwed Cap |
|

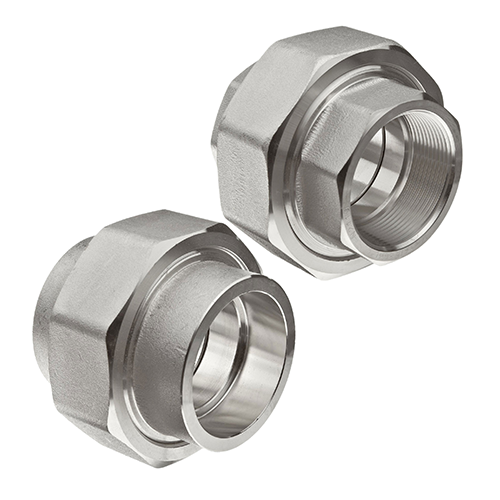

ANSI B16.11 Alloy Socket Weld Union |
Alloy 20 Threaded / Screwed Union Stockist |
|
ASTM B462 Alloy 20 Screwed Hex Plug |
ASME SB462 Carpenter® 20 Alloy Square Plug |
|
Alloy 20 Reducing Tee |
Alloy 20 Threaded / Screwed Bushing |
|

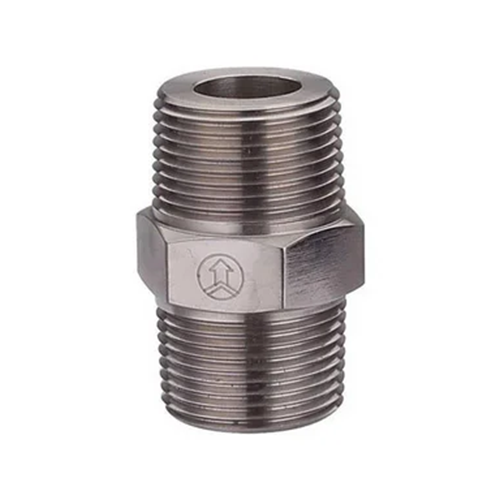

B462 Alloy 20 Hex Nipples |
ASME SB462M Alloy 20 Swage Nipple |
|
Alloy 20 Threaded Street Elbow |
Alloy 20 Threaded / Screwed Pipe Nipple |
|
Alloy 20 Socket Weld Unequal Tee |
Alloy 20 ASME B16.11 Threaded Unequal Tee |
Application Industries of Alloy 20 Forged Fittings
Frequently Asked Questions ( FAQ)
What are Alloy 20 Forged Fittings?
Alloy 20 Forged Fittings are high-strength pipe fittings made for corrosive and high-pressure applications.
What standards do Alloy 20 Forged Fittings conform to?
They are manufactured as per ASTM and ASME standards, commonly ASTM B462 / ASME SB462.
Are Alloy 20 Forged Fittings corrosion-resistant?
Yes, they offer excellent resistance to sulfuric acid, chlorides, and aggressive chemicals.
What is the pressure rating of Alloy 20 Forged Fittings?
The pressure rating depends on size, class, and design, and typically meets high-pressure industrial requirements.
Can Alloy 20 Forged Fittings be customized?
Yes, they can be customized in size, type, pressure class, and surface finish as per project needs.
