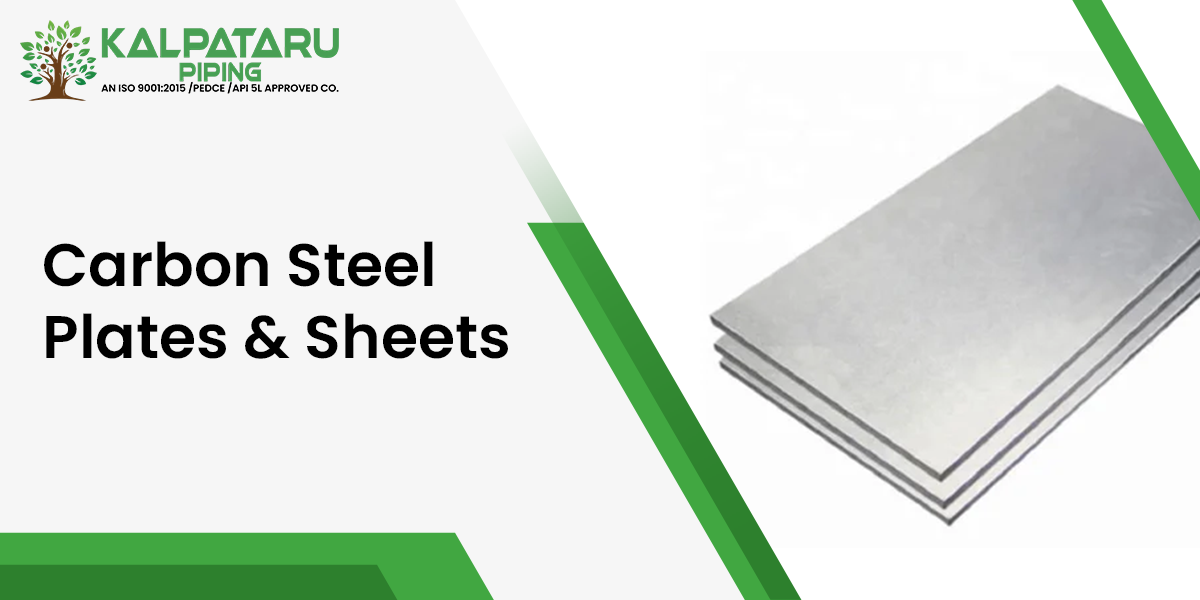

Carbon Steel Plates & Sheets
Carbon Steel Shim Sheets, Carbon Steel Plate Suppliers, ASTM A516 Carbon Steel Coils, Carbon Steel Cold Rolled Plates, Carbon Steel Foils Dealer in India.
Table of Content
- Carbon Steel Plates and Sheets Specification
- Chemical Composition of Carbon Steel Plates And Sheets
- Carbon Steel Plates and Sheets Mechanical Properties
- Physical Properties of Carbon Steel Sheets & Plates
- Carbon Steel Plates by Thickness
- Carbon Steel Plates Finishes
- Types Of Carbon Steel Plates And Sheets
- Carbon Steel Sheets, Plate & Coils Application
- FAQ
Kalpataru Piping Solutions is a leading supplier of Carbon Steel Plates, made from an alloy of iron and carbon, with additional elements like chromium, nickel, and vanadium. These elements influence the material’s properties, leading to various grades of Carbon Steel Plates with distinct characteristics. Low-carbon steel plates are especially valued for their high machinability, making them ideal for general-purpose tooling. They also offer excellent welding properties, enhancing their versatility in a range of applications.
The 1020 plate, made from mild carbon steel, is known for its excellent weldability, machinability, and ease of fabrication, making it perfect for general or non-critical structural uses. The A36 hot-rolled plate is highly demanded globally for structural steel fabrications due to its affordability and good weldability, and it is classified as mild steel because of its hardness.
Both 1018 and 1020 plates are available in cold-drawn and hot-rolled forms, with cold-drawn versions being more popular. While 1018 steel is slightly stronger and harder, 1020 steel offers better machinability, making it preferred by many industries.
We also supply various grades such as ASTM A36 Plate, ASTM A515 Gr. 70, ASTM A516 Gr. 70, ASTM C45, EN8, and ASTM A572 Gr. 50 Carbon Steel Sheets, Plates, and Coils. Our ASTM A36 Plates and other carbon steel grades offer good corrosion resistance compared to austenitic and ferritic steels, though their performance should always be evaluated for specific environmental conditions.
Explore our selection of Carbon Steel products, which includes pipes, tubes, flanges, and fittings, each offering exceptional corrosion resistance.
Check Out Our Related Blog On – What is carbon steel?
Carbon Steel Plates Specification
| Plates Specifications | ASTM A283 / ASME SA283, BS EN 10088-2, en 10028-7, IS 6911 |
| Sheets Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Plates Size Range | Cold rolled ASME SA283 Grade Carbon Sheet 0.5-6.4 mm Hot rolled ASME SA283 Grade Carbon Sheet 3.0–10.0 mm |
| Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Plates | EN 10258/ DIN 59381) EN 10151 ASME SA283 Carbon Strips EN 10088 SA -240-Strips |
| Finish of Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Carbon Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Chemical Composition of Carbon Steel Plates
| Carbon Steel Grades | C | Mn | Si | S Max. | P Max. |
| Ck 45 | 0.42/0.50 | 0.50/0.80 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 55 | 0.52/0.60 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 60 | 0.57/0.65 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| SAE1006 | 0.08 max | 0.25/0.40 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1008 | 0.10 max | 0.30/0.50 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1010 | 0.08/0.13 | 0.30/0.60 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1018 | 0.15/0.20 | 0.60/0.90 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1020 | 0.18/0.23 | 0.30/0.60 | 0.10/0.30 | 0.09 | 0.04 |
| SAE1030 | 0.28/0.34 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1035 | 0.32/0.38 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1040 | 0.37/0.44 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1045 | 0.40/0.50 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| En-8D | 0.40/0.45 | 0.70/0.90 | 0.05/0.35 | 0.06 | 0.06 |
| En-9 | 0.50/0.60 | 0.50/0.80 | 0.05/0.35 | 0.06 | 0.06 |
Carbon Steel Plates and Sheets Mechanical Properties
| Property | Ultimate Tensile Strenght | 0.2% Yield Strenght | Elogation | Reduction of Area | Charpy Impact Toughness | Hardness |
| Value |
70 Min Ksi(485 Mpa) |
36 Min Ksi (250 Mpa) |
30% Min | 22% Min | 30 | 187 HBW MAX |
Physical Properties of Carbon Steel Sheets & Plates
| Physical Property | Metric | Imperial |
| Density | 7.85 g/cm3 | 0.284 lb/in3 |
Carbon Steel Plates by Thickness
| Items | Thicknesses |
| Thin carbon steel sheet | 0.2mm-4mm |
| Medium carbon steel plate | 4mm-20mm |
| Thick carbon steel plate | 20mm-60mm |
| Extra-thick carbon steel plate | 60mm+ |
Carbon Steel Plates Finishes
| Surface Finish | Definition | Application |
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS RC221. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Types Of Carbon Steel Plates
- Carbon Steel Sheets
- Carbon Steel Shim Sheet
- Carbon Steel Perforated Sheet
- Carbon Steel Chequered Plate
- Carbon Steel Rolls
- Carbon Steel Ring
- Carbon Steel Circles
- Carbon Steel Coils
- Carbon Steel Strips
- Carbon Steel Flat
- Carbon Steel Blank
- Carbon Steel Profile
- Carbon Steel Foils
Carbon Steel Sheets, Plate & Coils Application
Offshore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Seawater Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
Marking & Packing Of Carbon Steel Plates And Carbon Steel Sheets
Kalpataru Piping Solutions Pack Carbon Steel Plates And Sheets Properly And Carefully To Ensure That There Is No Damage To The Carbon Steel Plates And Sheets During The Transit. We Pack Carbon Steel Plates And Sheets In Wooden Boxes And Supply It All Over The World.
High-Quality Carbon Steel Plates And Carbon Steel Sheets – Quality Assurance!
Kalpataru Piping Solutions Is One Of The Most Trusted Exporter, Supplier, Stockist & Manufacturer Of Carbon Steel Flanges. Kalpataru Piping Solutions Offers High-Quality Carbon Steel Flanges. We Inspect Our Carbon Steel Plates And Sheets At Each Stage Of Production Process To Make Sure That The Quality Of The Carbon Steel Flanges Is Not Compromised. They Are Examined To Confirm Their Standards And We Also Offer Third Party Inspection Of Our Carbon Steel Plates And Sheets On Demand Of Our Clients. Kalpataru piping solutions even Offer Test Certificates For Our Carbon Steel Plates And Sheets .
Why Choose Kalpataru Piping Solutions For Buying Carbon Steel Plates And Carbon Steel Sheets?
- Huge Stock Of Carbon Steel Plates And Carbon Steel Sheets.
- Large Production Capacity Of Carbon Steel Plates And SCarbon Steel heets
- Kalpataru Piping Solutions Offer Highest Quality Carbon Steel Plates And Sheets At Lowest Price
- We Offer Customised Sizes For Carbon Steel round bars & wires Depending On Our Clients Requirement
- Kalpataru Piping Solutions Offer High-Quality Carbon Steel Plates And Sheets With Test Certificates. We Even Allow Third Party Inspection.
FAQs
What is the Difference Between Carbon Steel Sheet and Plate?
The main difference between a carbon steel sheet and a carbon steel plate is their thickness. If the thickness is ¼ inch (6 mm) or more, it is classified as a plate. If the thickness is less than ¼ inch (6 mm), it is considered a sheet. Plates are usually measured in inches, while sheets are typically measured in smaller increments.
What are the uses of carbon steel plates?
In the manufacturing industry, carbon steel plates are commonly used as a base material for building components. Their durability makes them ideal for producing bolts, gears, screws, and various other parts. Additionally, they are utilized in construction, automotive manufacturing, machinery, and many industrial applications due to their strength and versatility.
What is the thickness of carbon steel plates?
Carbon steel plates typically range in thickness from 0.4 mm to 80 mm. They can have widths between 1000 mm and 45000 mm, with lengths up to 18 meters. However, the length is customizable, allowing customers to use them for various applications. Additionally, these plates can also be used to create cold-rolled steel coils.
What is the most common carbon steel plate?
A36 – The most widely used standard grade.
A283 – A popular structural plate available in grades A, B, and C.
A516 – Commonly used in boilers and pressure vessels.
A537 – Heat-treated grade for fusion-welded pressure vessels.
