Inconel 625 Olets Overview
Inconel 625 olets are corrosion-resistant branch outlet fittings supplied by Kalpataru Piping for connecting auxiliary lines and instruments to main pipework. They are manufactured to ASTM B366 and MSS SP-97 under UNS N06625 and W.Nr. 2.4856. The range covers weldolet, sockolet, threadolet, sweepolet, latrolet, elbolet, nipolet and flexolet configurations. These alloy 625 branch fittings and alloy 625 olets are held ex-stock Mumbai for fast despatch.
We also supply Inconel 625 Springs and coiled components for corrosion-resistant applications. For related forged fitting types see our Inconel 625 Forged Fittings, and browse the full Inconel Products hub for the complete grade range. Call 022-66337137 for a quote, with EN 10204 3.1 MTC on every order.
Inconel 625 Springs- Custom Coiled Springs in UNS N06625
We supply Inconel 625 springs (UNS N06625) for seawater, chemical and high-temperature applications. Custom Inconel 625 springs dimensions are available, including inconel 625 coil spring, compression and tension designs made to your OD, wire diameter and free length. These uns n06625 springs offer high fatigue strength and excellent resistance to stress-corrosion cracking.
Inconel 625 Olets Specifications
All Inconel 625 olets are produced to ASTM B366 and MSS SP-97 in UNS N06625 / W.Nr. 2.4856. The astm b366 inconel 625 olets and mss sp-97 olets range below covers all uns n06625 branch fittings.
| Standard | ASTM B366 / ASME SB366 |
| Dimensions | ASME / ANSI B16.11, MSS SP-97, BS 3799 |
| Grade | Inconel 625 (UNS N06625, W.Nr. 2.4856) |
| Size | 1/2 inch to 24 inch |
| Class | 3000 LBS, 6000 LBS, 9000 LBS |
| Schedule | SCH 5S, SCH 10S, SCH 40S, SCH 80S, SCH 120S |
| Types | Weldolet, Sockolet, Threadolet, Sweepolet, Latrolet, Elbolet, Nipolet, Flexolet |
| Connection | Welded, Threaded, Butt-weld (BW), Socket-weld (SW) |
Get an Inconel 625 Olets Quote TodayNeed inconel 625 weldolet, sockolet or threadolet in a specific size or class? Kalpataru Piping holds inconel 625 olets ex-stock Mumbai to ASTM B366 / MSS SP-97 with EN 10204 3.1 MTC. Request a Quote → |
Inconel 625 Olet Types: Weldolet, Sockolet, Threadolet, Sweepolet, Latrolet, Elbolet
Kalpataru Piping manufactures the full range of inconel 625 olets including inconel 625 weldolet, inconel 625 sockolet, inconel 625 threadolet, inconel 625 sweepolet, inconel 625 latrolet, inconel 625 elbolet, inconel 625 nipolet and flexolet.
- Weldolet: butt-welding branch outlet for larger bore, full-penetration connections.
- Sockolet: socket-weld outlet for smaller bore, high-pressure branches.

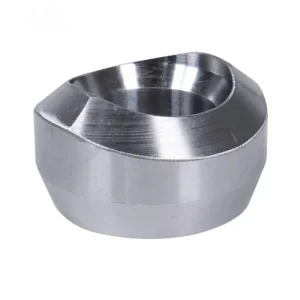

- Threadolet: threaded outlet for low-pressure and instrument connections.
- Sweepolet: contoured, integrally reinforced outlet for low stress concentration.

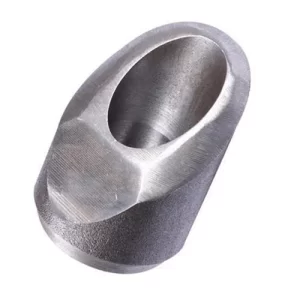

- Latrolet: lateral (45 degree) branch outlet, butt-weld or socket-weld.
- Elbolet: outlet welded onto elbows for thermowell and instrument tappings.
- Nipolet: one-piece nipple outlet for valve and drain connections.
- Flexolet: flexible branch outlet, available threaded and butt-weld.
Chemical Composition of Inconel 625 Olets (UNS N06625)
| Grade | Ni | Cr | Mo | Nb+Ta | Fe | C | Mn | Si | S |
| Inconel 625 | 58.0 min | 20.0 to 23.0 | 8.0 to 10.0 | 3.15 to 4.15 | 5.0 max | 0.10 max | 0.50 max | 0.50 max | 0.015 max |
Inconel 625 Olets Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| 8.4 g/cm3 | 1350 C (2460 F) | 930 MPa (135,000 psi) | 517 MPa (75,000 psi) | 42.5 % |
Equivalent Grades of Inconel 625 Olets
| Standard | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ChN75MBTYu | NC22DNB4M | NiCr22Mo9Nb |
Inconel 625 Olets Applications
Inconel 625 olets applications include high-temperature oil and gas extraction, inconel 625 branch outlet offshore platforms, chemical processing, petrochemical refining and marine systems. Alloy 625 olets oil gas service benefits from the alloy’s resistance to pitting, crevice corrosion and stress-corrosion cracking under extreme pressure and temperature. For full pipe fitting solutions see Inconel 625 Buttweld Fittings and Inconel 625 Forged Fittings.
Inconel 625 Olets FAQ
Does Kalpataru Piping supply Inconel 625 springs?
Yes. We supply Inconel 625 springs (UNS N06625) including compression springs, tension springs and custom Inconel 625 springs for seawater, chemical processing and high-temperature applications. Custom spring dimensions are available; contact us with your OD, wire diameter and free length requirements. For related fastener components see our Inconel 625 Fasteners page.
What is the difference between a weldolet and a sockolet in Inconel 625?
An Inconel 625 weldolet is a butt-welding branch fitting used for larger bore connections requiring full-penetration welds (ASTM B366). An Inconel 625 sockolet has a socket-weld end for smaller bore connections. Both are available in UNS N06625 / W.Nr. 2.4856 to MSS SP-97.
