Monel 400 Round Bars — ASTM B164 / ASME SB164 | UNS N04400 Supplier India
Kalpataru piping produces and exports Monel 400 Round Bars (ASTM B164 / ASME SB164) and its plant is located in Mumbai and delivers these stocks to procurement engineers and project teams to dispatch at any moment. Everything is provided with certification of EN 10204 3.1 mill. Browse our complete
Monel 400 Round Bars, Monel 400 Round Bars are produced through cold working that creates an refined microstructure that is made harder, stiffer and stronger mechanically. Surface finish is also enhanced at the same time, products like Monel 400 bright bar and square bars are enhanced by this process with a finer texture and better tensile properties.
UNS N04400 / WNR 2.4360 and 2.4361 Monel 400 (-63 percent nickel, 28 percent copper, with regulated amounts of iron, carbon, manganese, silicon, sulphur and trace lead (max 0.005 percent)). This alloy provides excellent performance in properties of seawater, steam, acids, alkalis, salt solutions and caustic conditions hence it is the alloy used in the marine, chemical and oil and gas industries.
In an annealed state, Monel 400 bar has a minimum tensile of 550 MPa and minimum yield of 240 Mpa and at a minimum tensile of 760 Mpa in cold-worked rods, see the tensile strength by condition table below. The alloy has a great ductility, thermal conductivity, alkaline resistance, and low room temperature magnetism. For full welding guidance, see our Monel 400 Welding Guidelines →
Applicable standards: ASTM B164 | ASME SB164 | UNS N04400 | DIN 2.4360 | AMS 4675 | EN NiCu30Fe | BS NA 13 | JIS NW 4400
Monel 400 Round Bars Introduction
The Monel 400 Round Bars are made by cold working, which leads to the acquisition of a sophisticated microstructure that increases hardness, stiffness, and mechanical strength. Surface finish is also enhanced using cold working, and products such as Monel 400 Bright Bars and Square Bars are rendered to have a lighter texture and better tensile properties.
About 63 % of nickel, 28 % of copper, trace amounts of iron, carbon, manganese, silicon, sulphur and trace lead (max 0.005%) are found in Monel 400 (UNS N04400 / WNR 2.4360 & 2.4361). The composition offers excellent seawater, steam, acid, alkali, salt solutions and caustic environment resistance, and this is why the alloy is suited to marine, chemical and oil and gas industries. Monel 400 bars has a minimum tensile strength of approximately 550 MPa and a yield strength of 450 MPa at a minimum, which increases and goes as high as 760 MPa in cold-worked rods. The alloy is also very strong in ductility, thermal conductivity, alkaline resistance and has a weak level of magnetism at room temperature. The Monel 400 Round Bars are simple to machine, manufacture and weld with the normal industrial processes and are able to be seamlessly integrated in all projects. Their homogenous mix of strength, corrosion resistance and workability has made them a material of choice when one is required to design long-lasting applications that would demand performance and durability.
Monel 400 Round Bar Specification
Complete specifications for ASTM B164 Monel 400 bar including Monel 400 bright bar, Monel 400 cold drawn bar, and ASME SB164 Monel rod available in multiple sizes and conditions.
| Specification Parameter | Details |
| Material Specification | ASTM B164 / ASME SB164 Monel 400 Round Bar |
| Aerospace Standard | AMS 4675 — Nickel Alloy (65Ni – 31.5Cu – 1.2Fe), Bars, Rods, and Wire, Cold Drawn or Cold Rolled, Annealed |
| Grade | B164 UNS N04400 round bar |
| Form | Round, Square, Hex (A/F), Bush, Rectangle, Flat, Billet, Ingot, Forging, PSQ Bar, Wire Rod, Wire (Coil Form), Wire-mesh |
| Size Range | 1.6 mm to 800 mm diameter (depending on form) |
| Manufacturing Process | Cold Drawn / Extruded / Hot Rolled / Forged |
| Length | 100 mm to 3,000 mm & above; custom cut lengths available |
| Diameter (Metric) | M6 to M48 |
| Diameter (Imperial) | 1/4″ to 2″ standard; up to 4″ on request |
| Tolerances | H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or per client requirement |
| Finish | Cold Drawn, Shot Blast & Drawn, 240 Grit Belt Polished, Black, Bright Polished, Rough Turned, No. 4 Finish, Matt Finish, BA Finish, High Polished |
| Condition | Annealed, Cold Drawn Polished, Cold Drawn Centreless Ground & Polished, Threaded |
| Surface | Hot Rolled Pickled / Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Custom Services | Custom cut to length, machining, threading, centreless grinding — see Custom Cutting & Machining section |
Monel 400 Round Bars Chemical Composition
| Grade | Ni (min) | Fe | C (max) | Mn (max) | Si (max) | Cu | Al (max) | S (max) |
| Monel 400 (UNS N04400) | 63.0 | 1.0 – 2.5 | 0.3 | 2.0 | 0.5 | 28.0 – 34.0 | 0.50 | 0.02 |
Monel Alloy 400 Round Bar Types
Monel 400 round bars are available in a wide variety of forms — hot rolled, cold drawn, annealed, bright, polished, hollow, flat, triangle, threaded and rectangular — to suit diverse industrial and high-performance requirements.

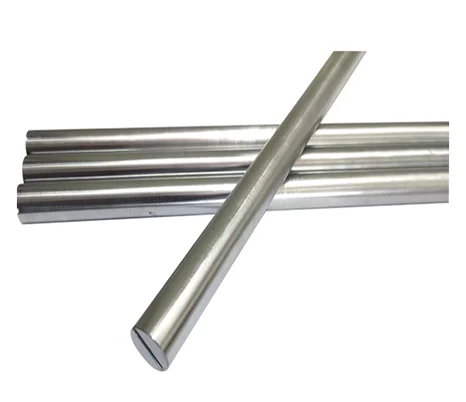

ASTM B164 Monel 400 Annealed Bar
ASTM B164 UNS N04400 Rectangular Bar

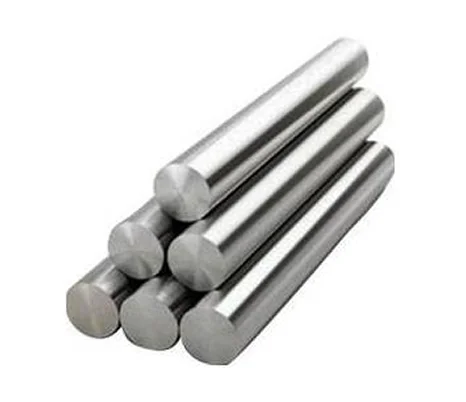

Monel 400 Hollow Bar

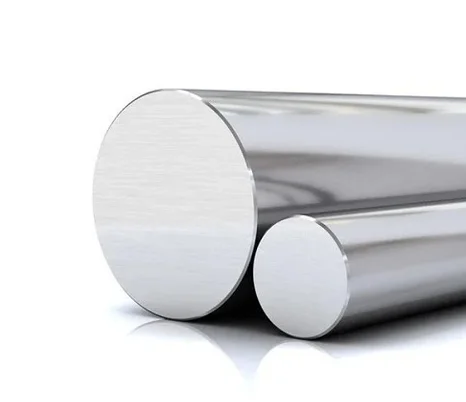

Monel 400 Polished Bar

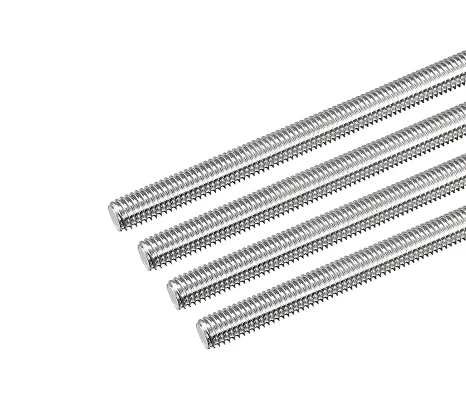

Monel 400 Threaded Bar
Monel 400 Triangle Bar

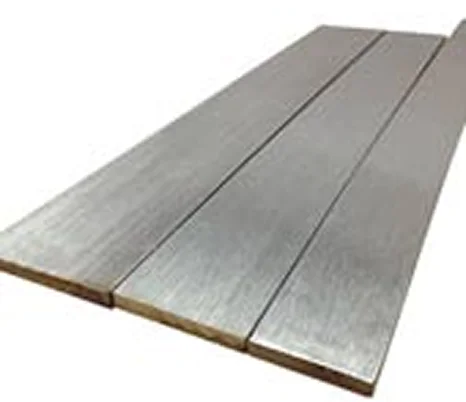

UNS N04400 Monel Flat Bar Cold Drawn

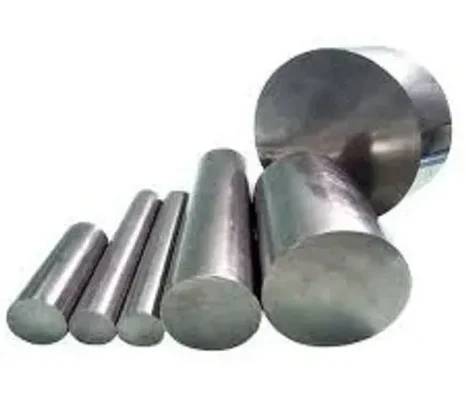

Alloy 400 Round Bar Hot Rolled

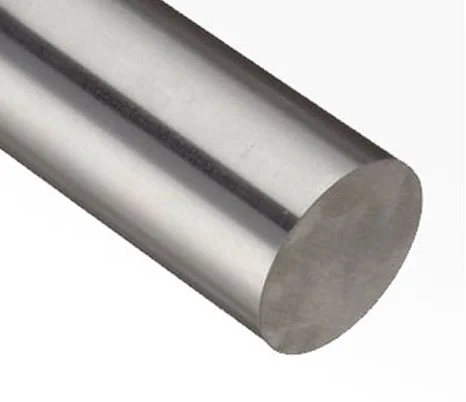

Monel 400 bright bar
Monel 400 Round Bar Price
For Monel Round Bar at the best price, Click here
Mechanical Properties of Alloy 400 Round Bars
Standard mechanical properties for Monel 400 bar in the annealed condition per ASTM B164 / ASME SB164 Monel rod specification.
| Property | Yield Strength (0.2%) | Tensile Strength | Elongation | Melting Point / Density |
| Monel 400 | Psi 35,000 | MPa 240 | Psi 80,000 | MPa 550 | 40% | 1350°C (2460°F) | 8.8 g/cm³ |
Tensile Strength by Condition: Annealed vs Cold-Worked vs Hot-Worked
Procurement engineers and designers specifying Monel 400 cold drawn bar or Monel 400 forged bar must confirm the correct condition before ordering, strength varies significantly across conditions. Values below are representative industry data aligned with AMS 4675 and ASTM B164 requirements.
|
Condition |
Tensile Strength |
Yield Strength (0.2%) |
Elongation (%) |
Hardness (Rockwell) |
Typical Application |
|
Annealed (Hot Worked) |
552 MPa (80 ksi) |
240 MPa (35 ksi) |
40% |
B60 – B75 |
General fabrication, welded assemblies, marine piping |
|
Cold Drawn / Cold Worked |
760 MPa (110 ksi) |
586 MPa (85 ksi) |
22% |
B80 – B95 |
Shafts, fasteners, pump components requiring higher strength |
|
Stress Relieved |
620 – 690 MPa |
380 – 450 MPa |
30% |
B70 – B85 |
Machined components requiring dimensional stability |
Rockwell Hardness Range of Monel 400 Bar
The Monel 400 round bar Rockwell hardness range is B60 to B95, depending on manufacturing conditions and degree of cold working:
|
Condition |
Rockwell Hardness (HRB) |
Brinell Hardness (HB) |
Notes |
|
Annealed |
B60 – B75 |
110 – 149 |
Soft, fully ductile — best for forming and welding operations |
|
Cold Drawn (light) |
B75 – B85 |
149 – 180 |
Moderate strength increase; good machinability retained |
|
Cold Drawn (heavy) |
B85 – B95 |
180 – 210 |
Maximum cold-work hardness; use where wear resistance is required |
Engineers specifying Monel 400 bar for machined pump shafts, valve stems, or fastener applications typically call for B80 – B95 (cold drawn condition). For weld-fabricated assemblies, specify annealed (B60 – B75), higher hardness increases the risk of weld cracking.
Equivalent Standards of Monel Alloy 400 Round Bars
|
Standard |
UNS |
Werkstoff Nr. |
AFNOR |
JIS |
GOST |
EN |
AMS |
|
Monel 400 |
N04400 |
2.4360 |
NU-30M |
NW 4400 |
МНЖМц 28-2,5-1,5 |
NiCu30Fe |
AMS 4675 |
Physical Properties of Alloy 400 Round Bars
|
Property |
Value |
|
Density @ Room Temperature |
0.318 lb/in³ (8.80 g/cm³) |
|
Elastic Modulus @ 70°F (tension) |
26.0 × 10⁶ psi |
|
Specific Heat @ 70°F |
0.102 Btu/lb/°F |
|
Melting Point |
2,370°F to 2,460°F (1,299°C to 1,349°C) |
|
Thermal Conductivity @ 70°F |
151 Btu·in/h/ft²/°F |
|
Electrical Resistivity @ 70°F |
0.511 μΩ·m |
Alloy UNS N04400 Round Bar Size Chart
The Monel 400 bar size chart below covers standard metric, US, ASTM/Canadian and Japanese bar sizes. For hollow bar, sizes range from 3 mm to 800 mm OD, contact us for sizes outside this table. See also the Monel 400 bar weight chart below.
|
Metric Size |
Diam. (mm) |
US Bar Size |
Diam. (inch) |
ASTM Bar Size |
Diam. (mm²) |
JPN Bar Size |
Diam. (mm) |
|
28 |
28 |
#18 |
2.250 |
— |
— |
57 |
57 |
|
25 |
25 |
#16 |
2.000 |
— |
— |
51 |
51 |
|
20 |
20 |
#14 |
1.750 |
— |
— |
44 |
44 |
|
18 |
18 |
#13 |
1.400 |
— |
— |
41 |
41 |
|
16 |
16 |
#12 |
1.500 |
— |
— |
38 |
38 |
|
14 |
14 |
#11 |
1.375 |
— |
— |
35 |
35 |
|
12 |
12 |
#10 |
1.250 |
— |
— |
32 |
32 |
|
10 |
10 |
#8 |
1.000 |
45M |
1500 |
25 |
25 |
|
8 |
8 |
#6 |
0.750 |
30M |
700 |
19 |
19 |
|
7 |
7 |
#5 |
0.400 |
25M |
500 |
16 |
16 |
|
6 |
6 |
#4 |
0.500 |
20M |
300 |
13 |
13 |
|
5 |
5 |
#2 |
0.250 |
10M |
100 |
6 |
6 |
Dimensions Chart of Monel 400 Square Bars
|
ASTM Size |
Diam. (mm²) |
JPN Size |
Diam. (mm) |
US Bar Size |
Diam. (inch) |
Metric Size |
Diam. (mm) |
|
15M |
200 |
10 |
10 |
#3 |
0.375 |
5.5 |
5.5 |
|
10M |
100 |
6 |
6 |
#2 |
0.250 |
5 |
5 |
|
20M |
300 |
13 |
13 |
#4 |
0.500 |
6 |
6 |
|
30M |
700 |
19 |
19 |
#6 |
0.750 |
8 |
8 |
|
25M |
500 |
16 |
16 |
#5 |
0.625 |
7 |
7 |
|
35M |
1000 |
22 |
22 |
#7 |
0.875 |
9 |
9 |
|
55M |
2500 |
29 |
29 |
#9 |
1.125 |
11 |
11 |
|
45M |
1500 |
25 |
25 |
#8 |
1.000 |
10 |
10 |
|
— |
— |
35 |
35 |
#11 |
1.375 |
14 |
14 |
|
— |
— |
51 |
51 |
#16 |
2.000 |
25 |
25 |
Monel Alloy 400 Round Bar Tolerances
|
Shape / Section |
Size / Diameter or Width Across Flats (mm) |
Permitted Variation (mm) |
|
Round |
≥ 6 ≤ 18 |
+0 to −0.070 |
|
|
˃ 18 ≤ 30 |
+0 to −0.085 |
|
|
˃ 30 ≤ 50 |
+0 to −0.100 |
|
|
˃ 50 ≤ 80 |
+0 to −0.120 |
|
|
˃ 80 ≤ 100 |
+0 to −0.140 |
|
Flat (thickness) |
< 18 |
+0 to −0.110 |
|
|
˃ 18 ≤ 30 |
+0 to −0.130 |
|
|
˃ 30 ≤ 50 |
+0 to −0.250 |
|
|
˃ 50 ≤ 80 |
+0 to −0.350 |
|
Square & Hexagon |
≥ 6 ≤ 18 |
+0 to −0.090 |
|
|
˃ 18 ≤ 30 |
+0 to −0.110 |
|
|
˃ 30 ≤ 50 |
+0 to −0.130 |
|
|
˃ 50 ≤ 80 |
+0 to −0.160 |
|
|
˃ 80 ≤ 105 |
+0 to −0.250 |
Alloy 400 Round Bar Weight Chart
Use the Monel 400 bar weight chart below to calculate material requirements. Weights are in kg/m and kg/ft for standard sizes.
|
Size |
kg/m |
kg/ft |
Size |
kg/m |
kg/ft |
Size |
kg/m |
kg/ft |
|
22 mm |
2.979 |
0.908 |
1/8" |
0.062 |
0.019 |
3-1/4" |
41.996 |
12.800 |
|
24 mm |
3.543 |
1.080 |
4 mm |
0.098 |
0.030 |
3-3/4" |
55.780 |
17.001 |
|
7/8" |
3.038 |
0.926 |
5/32" |
0.095 |
0.029 |
3-1/2" |
48.772 |
14.850 |
|
25 mm |
3.871 |
1.180 |
3/16" |
0.141 |
0.043 |
4" |
63.340 |
19.306 |
|
26 mm |
4.170 |
1.271 |
7/32" |
0.190 |
0.058 |
4-1/2" |
80.340 |
24.449 |
|
1" |
3.970 |
1.210 |
5 mm |
0.154 |
0.047 |
4-1/4" |
72.249 |
21.908 |
|
27 mm |
4.490 |
1.368 |
6 mm |
0.223 |
0.068 |
4-3/4" |
90.249 |
27.366 |
|
30 mm |
5.548 |
1.691 |
7 mm |
0.298 |
0.091 |
5-1/2" |
121.000 |
36.690 |
|
1-1/8" |
5.033 |
1.534 |
1/4" |
0.249 |
0.076 |
5" |
99.940 |
30.461 |
|
20 mm |
2.470 |
0.753 |
3 mm |
0.055 |
0.017 |
3" |
35.762 |
10.900 |
Monel 400 Flat Bar Sizes
|
Flat Size (mm) |
Standard Length (m) |
kg/m |
Colour Code |
|
10 × 3 |
6 |
0.24 |
Blue |
|
13 × 3 |
6 |
0.31 |
Blue |
|
13 × 5 |
6 |
0.46 |
Orange |
|
16 × 3 |
6 |
0.38 |
Blue |
|
16 × 5 |
6 |
0.64 |
Orange |
|
16 × 8 |
6 |
1.03 |
Red |
|
20 × 3 |
6 |
0.48 |
Blue |
|
20 × 5 |
6 |
0.81 |
Orange |
|
20 × 6 |
6 |
0.97 |
White |
|
20 × 10 |
6 |
1.61 |
Yellow |
|
25 × 3 |
6 |
0.60 |
Blue |
|
25 × 5 |
6 |
1.01 |
Orange |
|
25 × 6 |
6 |
1.21 |
White |
|
25 × 8 |
6 |
1.61 |
Red |
|
25 × 10 |
6 |
2.01 |
Yellow |
|
25 × 12 |
6 |
2.41 |
Pink |
|
32 × 3 |
6 |
0.77 |
Blue |
|
32 × 5 |
6 |
1.29 |
Orange |
|
32 × 6 |
6 |
1.55 |
White |
|
40 × 5 |
6 |
1.61 |
Orange |
|
40 × 10 |
6 |
3.22 |
Yellow |
|
40 × 20 |
6 |
6.14 |
Green |
Monel 400 Round Bar Surface Finishes
|
Code |
Finish Description |
Typical Use |
|
CD |
Cold Drawn |
Standard dimensional accuracy, good surface finish |
|
BD |
Bright Drawn — Monel 400 bright bar |
High surface quality, precision dimensions |
|
P |
Polished — Monel 400 polished bar |
Decorative and corrosion-critical applications |
|
CG |
Centreless Ground |
Tight tolerance shafts, pump rods |
|
HF |
Hot Finished |
Large diameters, forged components |
|
CF |
Cold Finished |
Improved strength, close tolerances |
|
HRAP |
Hot Rolled Annealed & Pickled |
Structural, weld-ready |
|
P&T |
Peeled & Turned |
Clean surface for machining |
|
RT |
Rough Turned / Peeled |
Preliminary machined condition |
|
ST |
Smooth Turned |
Final turned surface |
|
SRE |
Slit Rolled Edge |
Flat bar edge finish |
|
PR |
Peeled & Reeled |
Coil bar, wire rod applications |
Thermal Properties of Monel Alloy 400 Round Bars
|
°F |
°C |
Mean Linear Exp. (µm/m·°C) |
Electrical Resistivity (µΩ·m) |
Thermal Cond. (W/m·°C) |
Specific Heat (J/kg·°C) |
|
-200 |
-130 |
11.4 |
— |
18.2 |
320 |
|
-100 |
-70 |
12.1 |
— |
19.8 |
378 |
|
70 |
21 |
— |
0.511 |
22.0 |
427 |
|
200 |
100 |
14.2 |
0.537 |
24.0 |
445 |
|
400 |
200 |
15.2 |
0.559 |
26.9 |
459 |
|
600 |
300 |
15.7 |
0.574 |
30.1 |
470 |
|
800 |
400 |
16.1 |
0.587 |
33.4 |
— |
|
1000 |
500 |
16.3 |
0.603 |
36.5 |
— |
|
1200 |
600 |
16.6 |
0.620 |
39.4 |
— |
|
1400 |
700 |
17.0 |
0.639 |
42.4 |
— |
|
1600 |
800 |
17.4 |
0.658 |
45.5 |
— |
Monel 400 vs Monel K500: Which Round Bar to Specify?
The most common Monel comparison question in procurement: Monel 400 vs Monel K500. Both are nickel-copper alloys with similar corrosion resistance, but their mechanical performance, heat treatment, and cost differ substantially. See also: Monel K500 Round Bars — Full Specifications →
|
Property / Factor |
Monel 400 (UNS N04400) |
Monel K500 (UNS N05500) |
|
Alloy System |
Ni-Cu (solid solution) |
Ni-Cu-Al-Ti (age-hardenable) |
|
Tensile Strength (typical) |
550 MPa (annealed); 760 MPa (cold drawn) |
1,100 – 1,380 MPa (age hardened) — approx. 2× stronger |
|
Yield Strength (typical) |
240 MPa (annealed) |
790 – 1,035 MPa (age hardened) |
|
Hardness |
B60 – B95 (Rockwell) |
C25 – C35 (Rockwell) — harder, better wear resistance |
|
Corrosion Resistance |
Excellent — seawater, HF acid, reducing environments |
Equivalent to Monel 400 |
|
Heat Treatment |
Cannot be age hardened — cold work only |
Age hardenable (precipitation hardening via Al + Ti additions) |
|
Weldability |
Excellent — no PWHT required for most applications |
Good, but PWHT required after welding to restore properties |
|
Machinability |
Better in annealed condition — easier to machine |
Harder to machine in age-hardened condition; tools wear faster |
|
Cost |
Lower — no age-hardening heat treatment required |
Higher — additional alloying + precipitation hardening |
|
Typical Applications |
Marine piping, heat exchangers, pump shafts, weld fabrications |
Offshore pump shafts, subsea valve stems, high-strength fasteners |
|
Applicable Standards |
ASTM B164, ASME SB164, AMS 4675 |
ASTM B865, ASME SB865, AMS 4676 |
Monel 400 Round Bar Price Per Kg in India
Indicative Monel 400 round bar price India: ₹2,500 – ₹2,800 per kg for standard annealed round bar (subject to diameter, condition, finish, order quantity, and prevailing LME nickel price). Cold-drawn and centreless-ground conditions carry a processing premium.
Price is influenced by: LME nickel spot price, bar condition (annealed vs cold drawn), diameter, finish, and quantity. For volume orders above 500 kg, contact us for best-price quotation.
Available Monel 400 Bar Stock
- ASTM B164 Monel 400 bar — Round
- ASTM B164 Monel 400 Flat Bars
- Nickel Alloy 400 Bars
- UNS N04400 Flat Bars Black
- UNS N04400 round bar stock
- 400 Monel Flat Bars Bright
- Monel 400 bright bar
- Nickel Alloy 400 Flat Bars Polished
- WERKSTOFF NR. 2.4360 Rods
- DIN 2.4360 round bar Cold Drawn
- ASTM B164 400 Monel Rod
- Alloy 400 Flat Bars Annealed
- UNS N04400 Monel Hex Bars
- Monel 400 hollow bar 3–800 mm
- 2.4360 Monel 400 Hex Bars Black
- UNS N04400 Threaded Bars
- 400 Alloy Hex Bars Bright
- Monel 400 Square Rod
- Monel 400 forged bar
- WERKSTOFF NR. 2.4360 Hollow Bars
Planning a Monel 400 order? Tell us your diameter, condition, finish, length, and quantity. We will confirm stock availability, lead time, and best price, typically within 24 hours.
Related products:
- Monel 400 Pipes & Tubes
- Monel 400 Flanges
- Monel 400 Fasteners
- Monel 400 Plates & Sheets
Frequently Asked Questions About Monel 400 Round Bars
Can Monel 400 Round Bar be heat treated?
Monel 400 is not a hardened material and cannot be hardened by heat treatment because it is a nickel-copper alloy of solid solution. Cold working is the only way to attain strength. When synthetic components need to be relieved in terms of stress, annealing at about 870degC and rapid cooling of the fabricated components helps alleviate the internal stress and reinstates ductility. In order to reach tensile strength in excess of 600 Mpa, order Monel 400 cold drawn bar, not heat treated. To harden with age, use Monel K500 Round Bars in place of age-hardenable behaviour.
What is the difference between Monel 400 and Monel K500 round bar?
The alloys are the same in their nickel-copper base and are equally resistant to corrosion. The additions to Monel K500, including aluminium and titanium, permit age-hardening the material to tensile strengths of 1,100-1,380 Mpa – about twice that of cold-drawn Monel 400 bar. Monel 400 is cheaper, allows simple welding, and is suited to use in applications with a strength requirement of up to 760 Mpa. Complete Monel 400 vs K500 comparison table is given above.
What does AMS 4675 cover for Monel 400 bar?
The Monel 400 bar, rod, and wire aerospace material specification during the cold drawn or cold rolled, annealed condition, is AMS 4675. It also defines more stringent chemistry and mechanical property specifications than those of ASTM B164, and is therefore the appropriate specification in aerospace, defence and high-reliability procurement. On request Kalpataru Piping is able to supply Monel 400 bar into AMS 4675 with all material test certification.
What Are the Key Welding Considerations for Monel 400 Rods?
Request a Quote
Kalpataru Piping stocks a wide range of Monel 400 Round Bars in Mumbai, ready for immediate dispatch from JNPT / Nhava Sheva. We accept both bulk and small quantity orders with full documentation including EN 10204 3.1 MTR, ASTM mill certificates, and PMI reports.
Submit Specification Enquiry →
View all Monel Round Bar grades → | Browse complete Monel Products →
