Nickel Alloy Wiremesh Manufacturer and Supplier in India
Wire mesh is usually specified by what it has to hold back and what it has to survive. A fine screen used in caustic service is a different job from a support mesh near a furnace or a separator working with seawater. Kalpataru Piping is a manufacturer, supplier and exporter of nickel alloy wiremesh in Nickel 200 and 201, Monel, Inconel and Hastelloy grades, with woven, welded, hexagonal and knitted constructions available according to the application. Rolls, sheets and cut pieces can be supplied against the mesh count or aperture, wire diameter, width and length called for on the drawing or purchase order.
For Nickel 200 and Nickel 201 mesh, commercially pure nickel is often selected for alkaline service and for applications where its electrical or thermal properties are useful. Nickel 201 is the low-carbon grade and is generally preferred for prolonged service above about 315°C. Monel, Inconel and Hastelloy cover different corrosion and temperature conditions, so the alloy should be selected from the actual process chemistry, operating temperature and mechanical duty rather than treating every nickel alloy mesh as interchangeable.
What is Nickel Alloy Wiremesh?

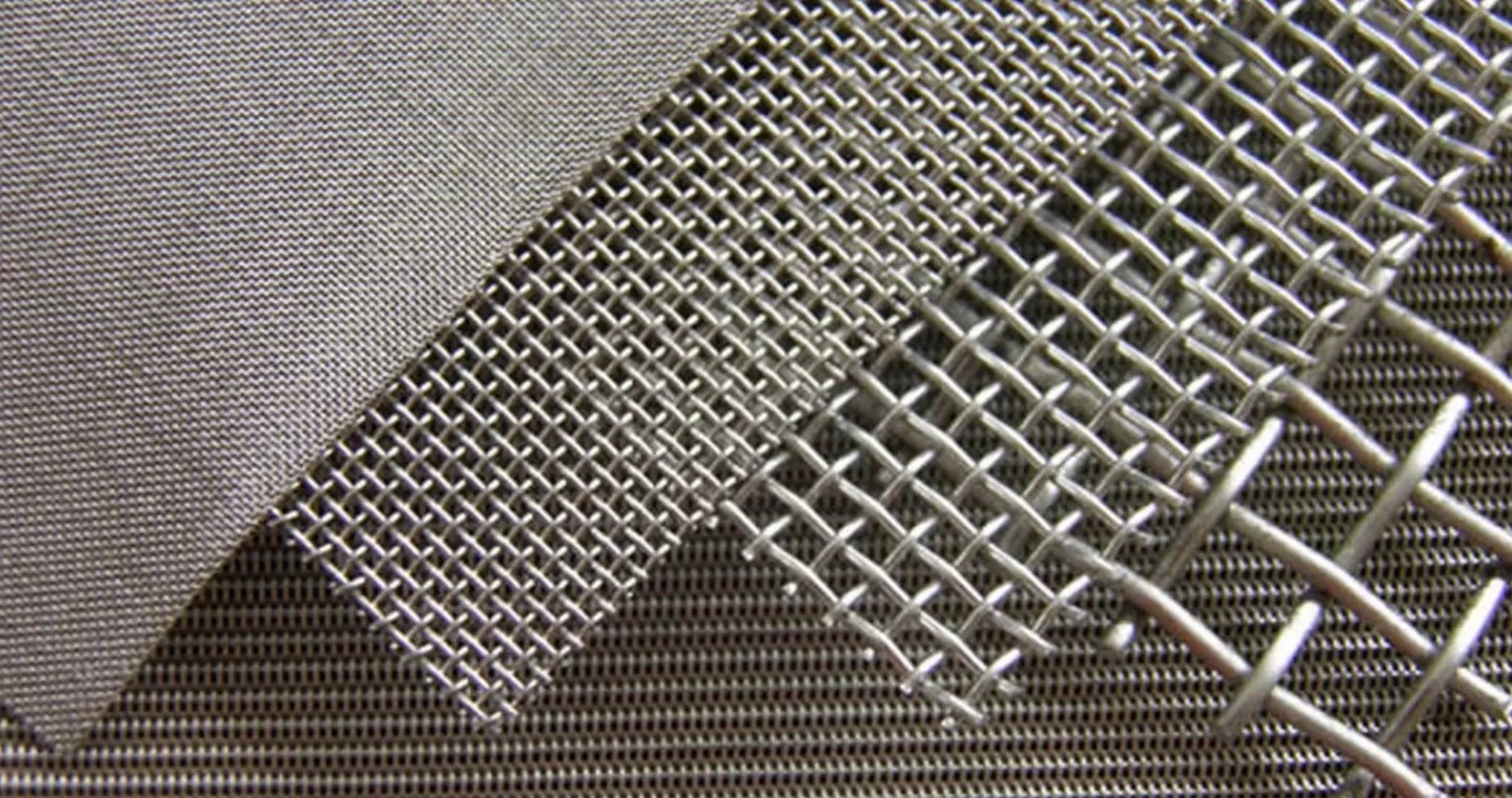

Nickel alloy wire mesh is made by weaving, welding or knitting alloy wire into a defined opening pattern for filtration, screening, shielding, separation or support duties. The alloy should be chosen from the actual process conditions rather than from the product name alone. Monel grades are commonly considered for marine and seawater duties, selected Hastelloy grades for aggressive chemical service, and Inconel or other nickel-chromium grades where elevated-temperature oxidation resistance is important. Kalpataru Piping supplies:
- Woven Wiremesh — plain, twill, or Dutch weave patterns for standard filtration duty
- Welded Wiremesh — for structural screening and heavier-duty applications
- Hexagonal Wiremesh — for refractory lining support and reinforcement applications
- Knitted Wiremesh — for demisting and vapour-liquid separation
If the same project also requires nickel alloy perforated sheet or flanges, those product forms can be quoted separately, subject to the required alloy and current availability.
Material Grades

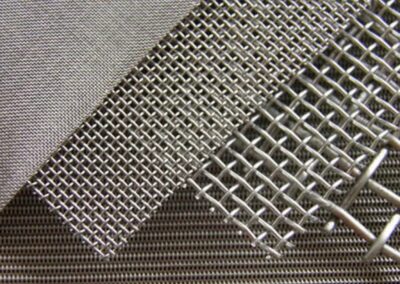

Nickel 200-201 Wiremesh
Specification of Nickel Alloy Wire Mesh
|
Parameter |
Nickel 200 / 201 |
Monel 400 |
Inconel 625 |
Hastelloy C276 |
|---|---|---|---|---|
|
UNS Number |
N02200 / N02201 |
N04400 |
N06625 |
N10276 |
|
Wire Diameter Range |
0.025–2.0 mm |
0.025–2.0 mm |
0.025–2.0 mm |
0.025–1.5 mm |
|
Mesh Count |
1–200 mesh/inch |
1–200 mesh/inch |
1–150 mesh/inch |
1–100 mesh/inch |
|
Micron Rating |
10–1000 µm |
10–1000 µm |
10–750 µm |
15–750 µm |
|
Roll Width |
Up to 48" (1.5 m) |
Up to 48" (1.5 m) |
Up to 36" (1.0 m) |
Up to 36" (1.0 m) |
|
Roll Length |
1–100 m |
1–100 m |
1–30 m |
1–30 m |
|
Weave Types |
Plain, twill, dutch, welded, hexagonal, knitted |
Plain, twill, dutch, welded |
Plain, twill, dutch |
Plain, twill, dutch |
|
Hole Shape |
Square, rectangular |
Square, rectangular |
Square, rectangular |
Square |
|
Mesh Surface |
Flat and smooth |
Flat and smooth |
Flat and smooth |
Flat and smooth |
|
Material Standard |
ASTM B160 / ASME SB160 |
ASTM B164 / ASME SB164 |
ASTM B166 / ASME SB166 |
ASTM B574 / ASME SB574 |
|
Max Service Temp. |
600 °C (1112 °F) |
482 °C (900 °F) |
982 °C (1800 °F) |
1040 °C (1904 °F) |
|
Test Certificate |
EN 10204 Type 3.1 |
EN 10204 Type 3.1 |
EN 10204 Type 3.1 |
EN 10204 Type 3.1 |
Grade Designations
| Grade | UNS | Werkstoff Nr. |
|---|---|---|
| Nickel 200 | N02200 | 2.4066 |
| Nickel 201 | N02201 | 2.4068 |
Monel Examples
| Standard | Monel 400 | Monel K500 |
|---|---|---|
| UNS | N04400 | N05500 |
| Werkstoff Nr. | 2.4360 | 2.4375 |
| JIS | NW 4400 | — |
| BS | NA 13 | — |
Comparison Table: Monel vs Inconel vs Hastelloy Wiremesh
| Property | Monel Wiremesh | Inconel Wiremesh | Hastelloy Wiremesh |
|---|---|---|---|
| Best resistance to | Marine and seawater duties; exact suitability depends on the Monel grade and service conditions | Elevated-temperature oxidation resistance; exact capability depends on the Inconel grade | Severe chemical corrosion; resistance depends on the Hastelloy grade and process chemistry |
| Typical service temperature | Moderate | Many grades are selected for elevated-temperature service; confirm the specific alloy | Grade- and media-dependent; corrosion conditions usually drive selection |
| Common application | Marine filtration, desalination | Furnace filters, aerospace | Chemical processing, flue gas |
| Price | Quote based | Quote based | Quote based |
Applications
- Chemical and petrochemical processing filters
- Marine and offshore seawater filtration
- Power plant and energy sector screening
- Aerospace thermal protection and filtration
- Sugar and cement industry screening
- Catalyst support and reactor internals
- Desalination systems
If your process needs the same corrosion resistance in a different product form, we also supply nickel alloy pipes and tubes and instrumentation valves in matching grades.
Process, Manufacturing & Quality Control
Nickel alloy wire mesh should be checked against the ordered alloy, wire diameter, aperture or mesh count, width, length and construction before dispatch. For woven mesh, dimensional checks focus on the wire and opening tolerances required by the purchase specification. Welded and knitted products need the inspection points appropriate to their own construction rather than a woven-cloth checklist.
Inspection & Testing
- Visual and surface inspection
- Raw Material Verification
- Wire diameter and aperture or mesh-count verification
- Roll width and length verification
- Weave integrity or weld integrity check, as applicable
- PMI or additional NDT only when specified by the order
- Material chemistry review against the supplied MTC
- Third-Party Inspection (on request)
Packaging
Mesh rolls are packed to prevent damage and corrosion during transit, with export-grade packing available on request for international shipments.
Certifications & Standards
Kalpataru Piping Solutions operates under a rigorous quality management framework to ensure every roll of nickel alloy wiremesh meets the material, dimensional, and documentation requirements of your project specification.
Quality Management System
- ISO 9001:2015 Certified — Our manufacturing and sourcing partners operate under independently audited quality management systems
- PED (Pressure Equipment Directive) 2014/68/EU — For supply to European pressure equipment projects requiring CE-marked components
- NACE MR0175 / ISO 15156 — Compliance certification for Monel and Inconel mesh in H₂S (sour gas) service available on request
Material Standards
|
Grade |
Material Standard |
Wire Form |
|---|---|---|
|
Nickel 200 |
ASTM B160 / ASME SB160 |
Rod; ASTM B162 for sheet |
|
Nickel 201 |
ASTM B160 / ASME SB160 |
Rod; low-carbon variant |
|
Monel 400 |
ASTM B164 / ASME SB164 |
Rod and bar |
|
Monel K500 |
ASTM B865 / ASME SB865 |
Rod and bar |
|
Inconel 625 |
ASTM B166 / ASME SB166 |
Rod, bar, and wire |
|
Inconel 600 |
ASTM B166 / ASME SB166 |
Rod and bar |
|
Hastelloy C276 |
ASTM B574 / ASME SB574 |
Rod and bar |
Test Certificates & Documentation
|
Document |
Standard |
Details |
|---|---|---|
|
Mill Test Certificate (MTC) |
EN 10204 Type 3.1 |
Full chemical & mechanical analysis, heat number, lot traceability |
|
Third-Party Inspection |
EN 10204 Type 3.2 |
Witnessed by BV, SGS, TUV, Lloyds, RINA on request |
|
PMI (Positive Material Identification) |
ASTM E1476 |
XRF verification of Ni, Cu, Cr, Mo content on each roll |
|
Dimensional Inspection |
ISO 9044 / ASTM E2016 |
Wire diameter, mesh count, opening size, roll width |
|
Flattening Test |
Per ASTM A370 |
For welded mesh: confirms weld joint integrity |
|
Hardness Test |
ASTM E10 / E18 |
Brinell / Rockwell per lot |
|
Salt Spray Test |
ASTM B117 |
For coated or passivated mesh batches |
Packing & Traceability
Rolls are slit, rolled on cardboard tubes, and wrapped in polyethylene film followed by hessian or bubble-wrap outer. Each roll carries a label with grade, UNS number, heat number, lot number, dimensions, and Kalpataru’s QA stamp. Polythene-lined wooden cases or fibre drums with silica gel desiccants are used for export. Color-coded stickers differentiate alloy families on site.
Customer-specific ITPs (Inspection and Test Plans) and hold points for third-party inspection are accommodated on request.
Nickel Alloy Wire Mesh Product Options
- Nickel 200 and Nickel 201 woven mesh
- Nickel 200 and Nickel 201 square-aperture mesh
- Plain-weave and twill-weave constructions
- Dutch-weave mesh where the required filtration specification supports it
- Welded Nickel 200 mesh where specified
- Knitted Nickel 200 and Nickel 201 mesh for demisting or separation duties
- Mesh rolls, sheets and cut-to-size pieces
- Custom widths and cut lengths, subject to production capability
- Custom mesh count, aperture and wire diameter combinations to drawing or purchase order
- Monel, Inconel and Hastelloy mesh quoted separately by grade and construction
Also explore our related nickel alloy products:
FAQs About Nickel Alloy Wiremesh
What's the difference between woven and welded nickel alloy wiremesh?
Woven mesh is made by interlacing wires and can be produced in different weave patterns for filtration and screening. Welded mesh fixes the wires at their intersections and is used where a more rigid screen or stable opening pattern is required. The better option depends on aperture, wire diameter, load and service conditions.
Which nickel alloy should I use for seawater filtration?
Monel 400 is often considered for seawater service, particularly where resistance to rapidly flowing seawater is required, but final selection still depends on temperature, flow velocity, aeration, galvanic coupling and the rest of the process chemistry.
What mesh counts and wire diameters do you supply?
Mesh count and wire diameter are selected together because they determine the opening and open area. Send the required mesh count or aperture, wire diameter, alloy, width and quantity, and the available construction can be confirmed for the selected grade.
Can nickel alloy wiremesh handle high-temperature service?
Yes, but the allowable temperature depends on the actual alloy, wire size and mechanical duty. Inconel and other nickel-chromium grades are often selected where oxidation resistance at elevated temperature is important, so the specific grade should be checked against the service conditions.
Do you supply mesh in custom roll sizes?
Yes. Rolls, sheets and cut pieces can be supplied to specified dimensions within the actual production range for the chosen alloy, weave, mesh count and wire diameter.
Do you provide material certification with the mesh?
Material certification can be supplied when it is included in the order. The document set should match the base wire or alloy and any inspection or testing specifically called for by the purchaser.
Need Nickel Alloy Wiremesh for Your Application?
Send us your alloy grade, mesh count, and roll size, and our team will respond with a quote and lead time. Contact Kalpataru Piping to get started.
