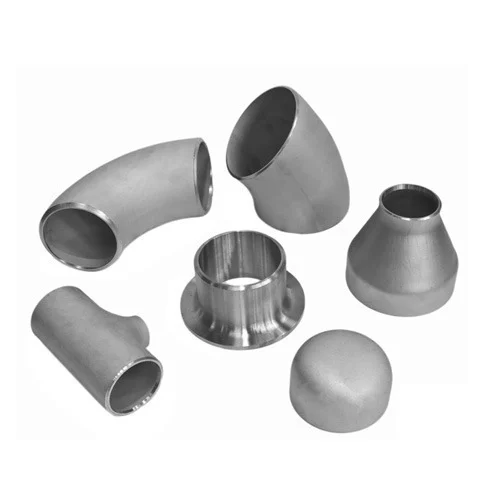

Stainless Steel 904L Buttweld Fittings
Table of Content
- Specification Chart of Alloy 904L Elbow
- Varieties Of 904L Stainless Steel Pipe Tee manufactured as per Hot or Cold forming process
- Types Of ASTM B366 WP904L Elbow Manufactured As Per Hot Forming Or Extrusion Method & Cold Forming
- ANSI B16.9 B366 Grade Wp904L Pipe Cross Types manufactured as per Hot or Cold forming process
- Varieties Of SS 904L End Cap manufactured as per Hot or Cold forming process
- Types Of Wp904L Astm B366 Stub End manufactured as per Hot or Cold forming process
DIN2609 Stainless Steel 904L Pipe Fittings manufacturer, Check 24 inch SS 904L Long Stub End Price Per Kg in India, 904L Stainless Steel Short Radius ElbowASME B16.9 Alloy 904L Elbow, Stainless Steel 904L Tee Weight Chart
Kalpataru Piping Solution is a leading supplier of Stainless Steel 904l Buttweld Fittings in the standard size range and specifications. According to the nominal bore size, the wall thickness and the pressure capacities change. The different purposes make use of the different types such as the Alloy 904L Elbow & Steel Pipe Elbow which is used to change the direction of the pipeline without exerting much pressure on the walls. The wall thickness and pressure ratings are nominated by the schedules. The schedules range from 5s through 160 and XXS.
904L Fittings come under the ASTM B366 specification with ASME B16.9 and B16.28 standards. These standards and specifications specify pipes of nominal bore sizes ranging from 1/8 inches to 48 inches in diameter for high-temperature and corrosion-resistant services. 904L Stainless Steel Fittings can be seamless and 100% x-ray welded or fabricated.
The Stainless Steel 904L Tee is used to connect three equally sized pipes or unequally sized pipes at one point. The tees could be equal or unequal on these different occasions. The Stainless Steel 904L Fittings can also be seamless, welded, or fabricated. The composition of the material provides it the strength and corrosion resistance. The composition includes 23% nickel, 19% chromium, carbon, manganese, silicon, phosphorus, sulfur, 4% molybdenum and nitrogen in the composition. This composition gives the materials 220MPa minimum yield strength and 490MPa minimum tensile strength. The ASTM A403 Stainless Steel 904L Pipe Fittings have 70-90 HR B maximum Rockwell B hardness. The different sizes, standards, types, and strengths of the fittings make them suitable for various sets of applications.
Stainless Steel 904L Pipe Fittings come in a variety of shapes and sizes for different applications. The most common type is the 90-degree elbow fitting, which is used to connect two pieces of pipe at an angle to form a corner or turn. Moreover, there are also T-connectors that can be used to join three pieces of pipe together as well as reducers that allow transition from one size of pipe to another.
Our ASTM SB366 GR. WP904L Pipe Fittings are resistant to stress corrosion cracking and crevice corrosion. SS Grade 904L Pipe Fittings are non-magnetic with properties such as excellent toughness, formability, and weldability. Grade 904L Fittings are resistant to warm seawater and chlorine attack as well. SS 904L Fittings have found usage in many industries such as seawater cooling devices, gas scrubbing plants, oil refinery components, and more. Our products guarantee excellent usage and durability owing to the various quality control measures that are carried out on them.
Please contact us to know more about product types such as Stainless Steel 904l butweld fittings and stainless steel 904l price differences.
Specification Chart of Alloy 904L Elbow
| Specifications | ASTM B366 / ASME SB366 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Varieties Of 904L Stainless Steel Pipe Tee manufactured as per Hot or Cold forming process
| ASTM B366 Grade WP904L SS Lateral Tee | ASTM B366 Gr WP904L Equal Tee |
| SS WP904L Lateral Tee | SA 403 WP904L Equal Tee |
| Stainless Steel ASTM WP904L Lateral Tee | ASTM B366 Grade WP904L Equal Tee |
| ASTM B366 WP904L Stainless Steel Equal Tee | ASTM B366 Gr WP904L Lateral Tee |
| Stainless Steel 904L Equal Tee | ASTM B366 904L Lateral Tee |
| ASTM B366 WP 904L SS Equal Tee | ASTM B366 WP 904L Lateral Tee |
Types Of ASTM B366 WP904L Elbow Manufactured As Per Hot Forming Or Extrusion Method & Cold Forming
| ASTM B366 WP904L Elbow | |
| SA 403 WP904L 45 Degree Elbow | Stainless Steel 904L 90 Degree Elbow |
| ASTM B366 Grade WP904L 45 Degree Elbow | ASTM B366 WP 904L 90 Degree Elbow |
| ASTM B366 Grade WP904L 45 Degree Elbow | ASTM B366 WP 904L 45 Degree Elbow |
ANSI B16.9 B366 Grade Wp904L Pipe Cross Types manufactured as per Hot or Cold forming process
| ASTM B366 WP 904L B16.9 Cross | SS UNS N08904 Reducing Cross |
| ASTM B366 Grade WP904L 4-way cross pipe fittings | ANSI B16.9 Stainless Steel ASTM WP904L butt weld pipe fittings cross |
| ASTM B366 Gr WP904L equal welded cross | Stainless Steel ASTM B366 WP904L buttweld equal cross |
| Werkstoff No 1.4539 SS equal straight cross | SS WP904L 1-60inch sch40 ASME B16.9 4 way pipe fittings |
| ASTM B366 WP904L Stainless Steel equal cross | Stainless Steel 904L ASME B16.9 Big cross |
| SA 403 WP904L butt welded equal cross b16.9 | SS WP904L Pipe cross |
Varieties Of SS 904L End Cap manufactured as per Hot or Cold forming process
| SS UNS N08904 End Cap | ASTM B366 WP904L Stainless Steel 2″ sch40s pipe cap |
| SA 403 904L Pipe Caps For Pipe End | Stainless Steel ASTM B366 904LH Pipe Cap |
| Grade WP904L Stainless Steel 24″ pipe end cap | SS Grade WP904L B16.9 Buttweld Cap |
| SS 904L End Cap | DN100 Stainless Steel 904L S40 Weld On Pipe Cap |
| SA 403 Gr 904L seamless butt weld pipe cap | SS WP904L Pipe Cap |
| 904L SS pipe end caps | ASME B16.9 904L Stainless Steel End Cap |
| Werkstoff No 1.4539 SS Buttwelded Pipe Cap | ANSI B16.9 Stainless Steel 904L SCH40 Cap Butt Weld Cap |
| SA 403 WP 904L End Cap | SA 403 WP 904L Buttweld end seamless pipe cap |
| B366 904L threaded pipe end cap | ASME SB366 SS 904L 219 GOST 17379 WELD STEEL PIPE CAPS |
Types Of Wp904L Astm B366 Stub End manufactured as per Hot or Cold forming process
| ASTM B366 WP904L Stub End | |
| SS UNS N08904 Long Stub End | B366 WP904L Stainless Steel Short Stub End |
| Grade WP904L Stainless Steel Long Stub End | SS Grade WP904L Short Stub End |
| SA 403 Gr 904L Short Stub End | SS WP904L Long Stub End |
| 904L SS Short Stub End | 904L Stainless Steel Long Stub End |
| SA 403 904L Short Stub End | SS Grade WP904L Long Stub End |
Varieties Of Asme Sa 403 Wp904L Pipe Bend manufactured as per Hot or Cold forming process
| SA 403 WP 904L Pipe Bend | ASTM B366 WP 904L SS 180 degree U bend |
| SS UNS N08904 Bend | ASTM B366 WP 904LH Stainless Steel Pipe Bend |
| SA 403 Gr 904L seamless 180 degree pipe bends | SS WP904L Pipe Bend |
| SS 904L 45 90 degrees pipe Bend | Stainless Steel 904L pipe bends 3d 5d |
| ASTM B366 Grade WP904L pipe fitting bends | ASTM B366 Grade WP904L din26616 standard bend |
| SA 403 904L Equal Cross | ASTM B366 WP904LH Stainless Steel Equal Cross |
| Grade WP904L Stainless Steel Pipe Bend | SS Grade WP904L Pipe Bend |
| 5d 3d ASTM B366 904L pipe bends | Stainless Steel 904L 6mm pipe fitting bends |
| 904L SS Equal Cross | 904L Stainless Steel 90 Degree Pipe Bend |
| B366 904L 45 degree pipe bends | ASME SB366 SS 904L 12 inch Pipe Bend |
| ASTM B366 WP 904L seamless steel pipe bend | Stainless Steel ASTM B366 WP904L 90 Degree 5D Bend |
| Werkstoff No 1.4539 SS DN200 8inch sch40s 90 degree bend | ANSI B16.9 Stainless Steel 904L Equal Cross |
| ASTM B366 WP904L 20mm 90 degree bend | ASTM B366 WP 904L SS Tube bend |
| ASTM B366 Gr WP904L 90 Degree Bends | ASTM B366 Gr WP904L 3d Pipe Bend |
| ASME B16.9 SA 403 WP904L 5D Pipe Bend | SS WP904L Bend |
Types Of B366 WP904L Material Reducer Manufactured As Per Hot Forming Or Extrusion Method & Cold Forming
| SA 403 904L Concentric Reducer | ASTM B366 904L Eccentric Reducer |
| Stainless Steel 904L Concentric Reducer | ASTM B366 Grade WP904L Eccentric Reducer |
| ASTM B366 WP 904L Eccentric Reducer | SS WP904L Concentric Reducer |
| Stainless Steel B366 WP904L Concentric Reducer | ASTM B366 Gr WP904L Eccentric Reducer |
| ASTM B366 WP904L Eccentric Reducer | ASTM WP904L SS Concentric Reducer |
| SA 403 WP904L Eccentric Reducer | Stainless Steel 904L Concentric Reducer |
Chemical Element of Stainless Steel 904L Tee
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 904L | min. | – | – | – | – | – | 19.0 | 4.00 | 23.00 | 0.10 |
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 | |
Mechanical Properties of Stainless Steel 904L Pipe Fittings
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 904L | 490 | 220 | 35 | 70-90 typical | – |
Types Of SS 904L Long Stub End
90 Degree steel elbow pipes 904l offshore pipe fittings
45 Degree steel elbow pipes 904l pipe fittings
Stainless steel a182 904L SCH80 4″ Butt-welding fittings(BW) Eccentric Reducer

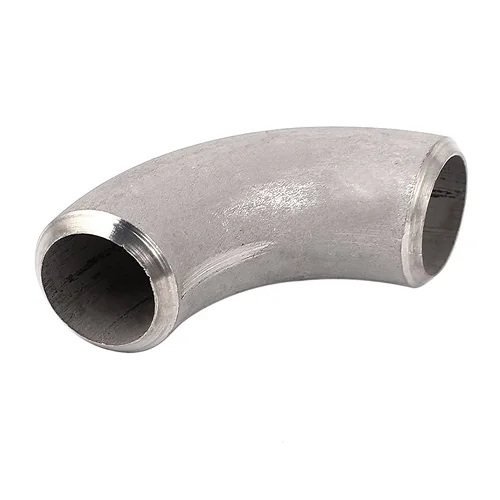

1/2″-4″ 904L/USN8904 BW SW NPT nipples
6 inch stainless steel 904l sch40s pipe fitting eccentric reducer

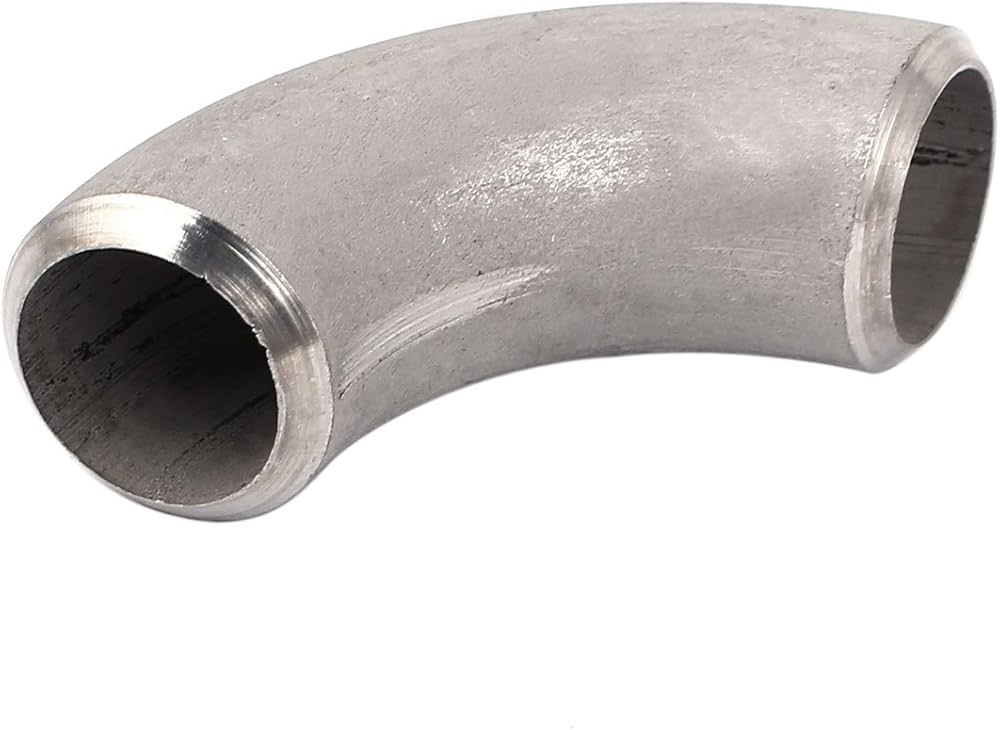

SCH40 Long Radius Elbow 904L Stainless Steel Pipe Elbow
2 inch Sch40 904L stainless steel Butt Weld elbow
Stainless steel a182 904L SCH80 8″ Butt-welding fittings(BW) concentric Reducer
ANSI B16.9 BW 2″ SCH40 90D Elbow 904L Stainless Steel Elbow
904L Stainless Steel Short Radius Elbow Equivalent Material
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 904L | N08904 | 904S13 | X1NiCrMoCu25-20-5 | 1.4539 | – | – | SUS 904L |
Physical Chart of 904L SS 3D Bend
| Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
| 0-100°C | 0-315°C | 0-538°C | At 20°C | At 500°C | |||||
| 904L | 7900 | 190 | 15 | – | – | 11.5 | – | 500 | 952 |
Stainless Steel 904L Welded Buttweld Fittings Chart & Weight
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Dimensions of SS 904L Grade Butt weld Pipe Fittings
| Nominal Pipe Size |
Outside Diameter |
Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| (inches) | (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
AISI 904L Stainless Steel 5d Bend Price
| ASTM B366 Grade WP904L Pipe Fittings Price Per Piece in India | ASTM B366 Gr WP904L Fittings Price in INR | ASTM B366 Grade WP904L Fittings Price in UAE Dirham |
| ASTM B366 WP904L Buttweld Pipe Fittings Price in India | Rs. 646 | UAE Dirham 33.10 |
| ASTM B366 Grade WP904L Fittings Price in India | Rs. 510 | UAE Dirham 26.13 |
| ASTM B366 Gr WP904L Pipe Fittings Price List | Rs. 728 | UAE Dirham 37.31 |
| ASTM B366 WP904L Elbow Cost in Mumbai | Rs. 465 | UAE Dirham 23.83 |
| Price of ASTM B366 WP 904L SS Pipe Fittings in Mumbai | Rs. 820 | UAE Dirham 42.02 |
FAQ
Which is better, 904L or 316L?
In this case, 904L stainless steel is the clear victor over 316L; with an average PREN value of 36.7, it is much stronger than 316L (which only has a PREN of 26.1). Therefore, 904L is more likely to withstand the corrosive power of seawater.
Does 904L rust?
Much like 316L, 904L includes molybdenum, allowing it to combat various forms of corrosion. More specifically, 904L stainless steel is exceptionally resistant to pitting, intergranular, and crevice corrosion.
What is the equivalent material of 904L in India?
Equivalent Grades of 904L stainless steel are WNR 1.4539 and UNS N08904. The Brinell Hardness of N08904 Stainless Steel is 192. N08904 Material has a Rockwell B Hardness of 90. The Elongation at Break of N08904 Material is 35%.
