Hastelloy C276 Pipe
ASME SB 622 Hastelloy C276 Pipes, Alloy C276 Pipes, Hastelloy Alloy C276 Pipes, ASTM B622 Hastelloy C276 Welded Pipes, Alloy C276 Seamless Tube, UNS N10276 Tubing suppliers, Nickel Alloy C276 Seamless Pipe supplier in India.
Table of Content
- Hastelloy C276 (ASTM B622 UNS N10276) Pipe Specification
- Hastelloy C276 (UNS N10276) Tubing Schedule Chart
- Most Selling Types Of Hastelloy C276 Alloy Pipes
- Alloy C276 Pipes Chemical Composition
- Hastelloy C276 Seamless Tube Weight Chart
- Nickel Alloy C276 Tube Equivalent Material Grades
- Alloy C276 Tubing Mechanical Properties
- Hastelloy C276 Pipe Physical Properties
- Alloy C276 Pipe Dimensions Chart
- Hastelloy C276 Seamless Pipe Sizes In Mm
- ASTM B619 UNS N10276 Pipe Wall Thickness
- Alloy C276 ERW Tube Size In Inch
The Hastelloy C276 Pipe and Tube is produced using Hastelloy C276 material which is a nickel-molybdenum-chromium alloy that includes tungsten that is a high-quality material offering a high degree of resistance to oxidizing as well as reducing environments. The Hastelloy C276 Pipe is seamless, and the ASTM B619 is a welded one.Such a combination gives it the ability to be used in a broad variety of the demanding industrial applications. The low carbon content of the Alloy C276 Pipe (UNS N10276 / DIN 2.4819) allows the absence of the carbide precipitation during welding and maintains high corrosion resistance in the as-welded state. It is very much resistant to pitting, crevice corrosion & used in chemical processing, pollution control, marine and heat exchanger systems.
Best Selling Hastelloy C276 Seamless Pipe, Manufacturer of Alloy C276 ERW Pipe, check ASME B36.19 Hastelloy C276 Welded Pipe price per meter in India.

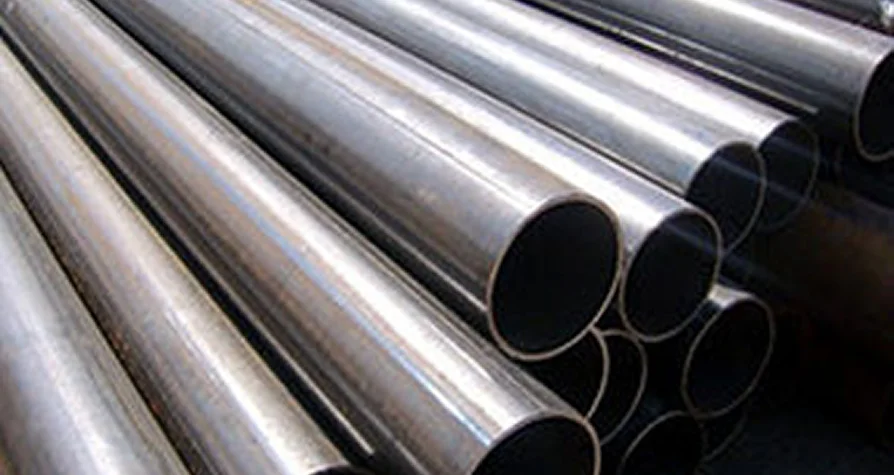

Hastelloy C276 Pipe
Alloy C276 Seamless Tube

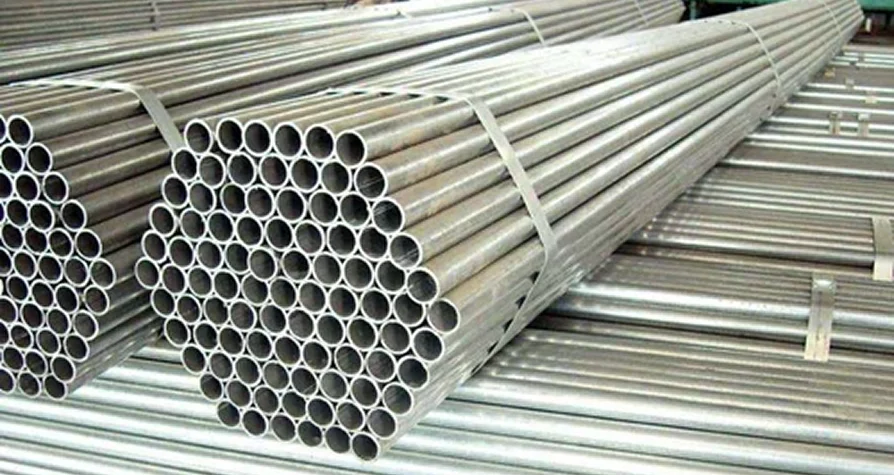

UNS N10276 Tubing
The Hastelloy C276 Tube is better in the reduction and oxidizing atmospheres. It may be provided round, square, or rectangular and in different finishes like, bright annealed, seamless, or welded. Alloy C276 Tubing is offered in custom lengths and wall thicknesses of Sch 5 to Sch 160, with high-pressure and high-temperature application. Hastelloy C276 Tubes and Pipes have a minimum yield strength of 355 MPa, tensile strength of 790 MPa, melting point of about 1370 o C, which makes it very durable, strong and resistant to corrosion in extreme temperatures.
Hastelloy C276 Pipe Suppliers
Kalpataru piping solutions is a trusted manufacturer, supplier and exporter of Hastelloy Pipes and Tubes, it provides high quality products c276 tube products in numerous types. These pipes and tubes are made on specifications under ASTM, ASME and API standards. Our Hastelloy C276 Pipes is manufactured out of high quality alloy which passes through strict quality checks prior to manufacturing. The production would be done with precision with a qualified team of professional and quality inspectors with the latest technology and modern equipment, keeping in compliance with international standards and industry guidelines. The quality assurance of every product is done by PMI/IGC testing, the hardness testing, chemical analysis, pitting resistance and macro/micro tests to ensure the sustainability and performance of products under extreme conditions.
In Kalpataru Piping Solutions, the commercial invoice, fumigation certificate, material traceability report, MTC (EN 10204/3.1B) and other certifications are issued with every consignment. Cold drawn Hastelloy C276 tubes are the tubes with improved performance utilized in industries. Hastelloy C276 price per kg in India according to size, thickness, and specifications. Be in touch with us now to offer us a free quote or find out our full line of Hastelloy Products & Hastelloy Tubes that are made to perform exceptionally well in extreme conditions.
Hastelloy C276 (ASTM B622 UNS N10276) Pipe Specification
| ASTM Specification | ASTM B619 / ASME SB619 |
| Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| Hastelloy C276 Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| ASTM B619 UNS N10276 Welded Pipes Size | 5.0 – 1219.2 mm |
| Hastelloy Alloy C276 EFW Pipes size | 5.0 – 1219.2 mm |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Alloy C276 Pipes Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Hastelloy C276 pipes Length | Single Random, Double Random, Standard & Cut length Pipe |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
| Form | Hastelloy C276 pipe are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Type of Hastelloy 2.4819 Pipes | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Hastelloy C276 pipe |
| Hastelloy C276 pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
Hastelloy C276 (UNS N10276) Tubing Schedule Chart
| 1/8″ IPS(.405″O. D.) | 3 1/2″ IPS( 4.000″O. D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4″ IPS(.540″O. D.) | 4″ IPS(4.500″O. D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8″ IPS(.675″O. D.) | 5″ IPS( 5.563″O. D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2″ IPS(.840″O. D.) | 6″ IPS(6.625″O. D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4″ IPS(1.050″O. D.) | 8 ” IPS(8.625″O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1″ IPS:(1.315′O. D.) | 10″ IPS(10.750″O. D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4″ IPS(1.660″O. D.) | 12″ IPS(12.750″O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2″ IPS(1.900″O. D.) | 14″ IPS(14.000″O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2″ IPS(2.375″O. D.) | 16″ IPS(16.000″O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2″ IPS(2.875″O. D.) | 18″ IPS (18.000″O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3″ IPS( 3.500″O. D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
Most Selling Types Of Hastelloy C276 Alloy Pipes

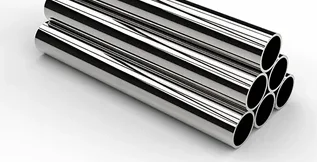

Alloy C276 Rectangular Tube
Alloy C276 Welded Tube
DIN 2.4819 Round Tube

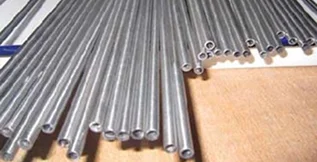

EN 2.4819 Heat Exchanger Tube
Hastelloy 2.4819 ERW Tube

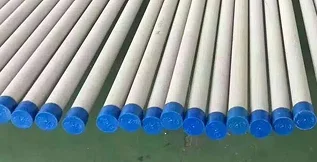

Hastelloy C276 Superheater Tube

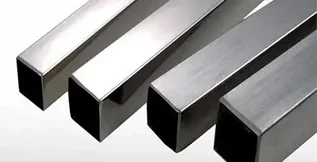

Nickel Alloy C276 Square Tube

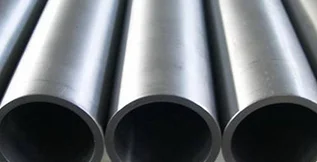

Nickel C276 Seamless Tube

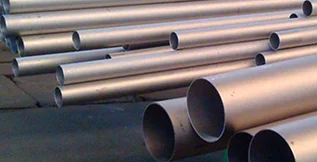

UNS N10276 Boiler Tube
Alloy C276 Pipes Chemical Composition
| Hastelloy C276 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
| Balance | 0.01 max | 15 – 17 | 1.0 max | 0.08 max | 4 – 7 | 0.04 max | 0.03 max | 2.5 max | 14.5 – 16.5 |
Hastelloy C276 Seamless Tube Weight Chart
| OD inches | ID inches | Ave. Wall inches | D/t Ratio | Internal Area (in2) | Tube Cross Sectional Area (in2) |
|---|---|---|---|---|---|
| 0.250 | 0.210 | 0.020 | 12.50 | 0.0346 | 0.0145 |
| 0.250 | 0.194 | 0.028 | 8.93 | 0.0296 | 0.0195 |
| 0.250 | 0.180 | 0.035 | 7.14 | 0.0254 | 0.0236 |
| 0.250 | 0.152 | 0.049 | 5.10 | 0.0181 | 0.0309 |
| 0.250 | 0.120 | 0.065 | 3.85 | 0.0113 | 0.0378 |
| 0.375 | 0.335 | 0.020 | 18.75 | 0.0881 | 0.0223 |
| 0.375 | 0.319 | 0.028 | 13.39 | 0.0799 | 0.0305 |
| 0.375 | 0.305 | 0.035 | 10.71 | 0.0731 | 0.0374 |
| 0.375 | 0.277 | 0.049 | 7.65 | 0.0603 | 0.0502 |
| 0.375 | 0.245 | 0.065 | 5.77 | 0.0471 | 0.0633 |
| 0.500 | 0.460 | 0.020 | 25.00 | 0.1662 | 0.0302 |
| 0.500 | 0.444 | 0.028 | 17.86 | 0.1548 | 0.0415 |
| 0.500 | 0.430 | 0.035 | 14.29 | 0.1452 | 0.0511 |
| 0.500 | 0.402 | 0.049 | 10.20 | 0.1213 | 0.0694 |
| 0.500 | 0.370 | 0.065 | 7.69 | 0.1075 | 0.0888 |
| 0.500 | 0.334 | 0.083 | 6.02 | 0.0876 | 0.1087 |
| 0.625 | 0.585 | 0.020 | 31.25 | 0.2688 | 0.0380 |
| 0.625 | 0.569 | 0.028 | 22.32 | 0.2543 | 0.0525 |
| 0.625 | 0.555 | 0.035 | 17.86 | 0.2419 | 0.0649 |
| 0.625 | 0.527 | 0.049 | 12.76 | 0.2181 | 0.0887 |
| 0.625 | 0.495 | 0.065 | 9.62 | 0.1924 | 0.1144 |
| 0.625 | 0.459 | 0.083 | 7.53 | 0.1655 | 0.1413 |
| 0.625 | 0.435 | 0.095 | 6.58 | 0.1486 | 0.1582 |
| 0.625 | 0.407 | 0.109 | 5.73 | 0.1301 | 0.1767 |
| 0.750 | 0.694 | 0.028 | 26.79 | 0.3783 | 0.0635 |
| 0.750 | 0.680 | 0.035 | 21.43 | 0.3632 | 0.0786 |
| 0.750 | 0.652 | 0.049 | 15.31 | 0.3339 | 0.1079 |
| 0.750 | 0.620 | 0.065 | 11.54 | 0.3019 | 0.1399 |
| 0.750 | 0.584 | 0.083 | 9.04 | 0.2679 | 0.1739 |
| 0.750 | 0.560 | 0.095 | 7.89 | 0.2463 | 0.1955 |
| 0.750 | 0.532 | 0.109 | 6.88 | 0.2223 | 0.2195 |
| 0.750 | 0.510 | 0.120 | 6.25 | 0.2043 | 0.2375 |
| 0.875 | 0.835 | 0.020 | 43.75 | 0.5476 | 0.0537 |
| 0.875 | 0.819 | 0.028 | 31.25 | 0.5268 | 0.0745 |
| 0.875 | 0.805 | 0.035 | 25.00 | 0.5090 | 0.0924 |
| 0.875 | 0.777 | 0.049 | 17.86 | 0.4742 | 0.1272 |
| 0.875 | 0.745 | 0.065 | 13.46 | 0.4359 | 0.1654 |
| 0.875 | 0.709 | 0.083 | 10.54 | 0.3948 | 0.2065 |
| 0.875 | 0.685 | 0.095 | 9.21 | 0.3685 | 0.2328 |
| 0.875 | 0.657 | 0.109 | 8.03 | 0.3390 | 0.2623 |
| 0.875 | 0.635 | 0.120 | 7.29 | 0.316L7 | 0.2846 |
| 1.000 | 0.944 | 0.028 | 35.71 | 0.6999 | 0.0855 |
| 1.000 | 0.930 | 0.035 | 28.57 | 0.6793 | 0.1061 |
| 1.000 | 0.902 | 0.049 | 20.41 | 0.6390 | 0.1464 |
| 1.000 | 0.870 | 0.065 | 15.38 | 0.5945 | 0.1909 |
| 1.000 | 0.834 | 0.083 | 12.05 | 0.5463 | 0.2391 |
| 1.000 | 0.810 | 0.095 | 10.53 | 0.5153 | 0.2701 |
| 1.000 | 0.782 | 0.109 | 9.17 | 0.4803 | 0.3051 |
| 1.000 | 0.760 | 0.120 | 8.33 | 0.4536 | 0.3318 |
| 1.000 | 0.732 | 0.134 | 7.46 | 0.4208 | 0.3646 |
| 1.250 | 1.180 | 0.035 | 35.71 | 1.0936 | 0.1336 |
| 1.250 | 1.152 | 0.049 | 25.51 | 1.0423 | 0.1849 |
| 1.250 | 1.120 | 0.065 | 19.23 | 0.9852 | 0.2420 |
| 1.250 | 1.084 | 0.083 | 15.06 | 0.9229 | 0.316L3 |
| 1.250 | 1.060 | 0.095 | 13.16 | 0.8825 | 0.3447 |
| 1.250 | 1.032 | 0.109 | 11.47 | 0.8365 | 0.3907 |
| 1.250 | 1.010 | 0.120 | 10.42 | 0.8012 | 0.4260 |
| 1.250 | 0.982 | 0.134 | 9.33 | 0.7574 | 0.4698 |
| 1.500 | 1.430 | 0.035 | 42.86 | 1.6061 | 0.1611 |
| 1.500 | 1.402 | 0.049 | 30.61 | 1.5438 | 0.2234 |
| 1.500 | 1.370 | 0.065 | 23.08 | 1.4741 | 0.2930 |
| 1.500 | 1.334 | 0.083 | 18.07 | 1.3977 | 0.3695 |
| 1.500 | 1.310 | 0.095 | 15.79 | 1.3478 | 0.4193 |
| 1.500 | 1.282 | 0.109 | 13.76 | 1.2908 | 0.4763 |
| 1.500 | 1.260 | 0.120 | 12.50 | 1.2469 | 0.5202 |
| 1.500 | 1.232 | 0.134 | 11.19 | 1.1921 | 0.5750 |
| 1.500 | 1.204 | 0.148 | 10.14 | 1.1385 | 0.6286 |
| 1.750 | 1.680 | 0.035 | 50.00 | 2.2167 | 0.1886 |
| 1.750 | 1.902 | 0.049 | 40.82 | 2.8413 | 0.3003 |
| 1.750 | 1.620 | 0.065 | 26.92 | 2.0612 | 0.3441 |
| 1.750 | 1.584 | 0.083 | 21.08 | 1.9706 | 0.4347 |
| 1.750 | 1.560 | 0.095 | 18.42 | 1.9113 | 0.4939 |
| 1.750 | 1.532 | 0.109 | 16.06 | 1.8433 | 0.5619 |
| 1.750 | 1.510 | 0.120 | 14.58 | 1.7908 | 0.6145 |
| 1.750 | 1.482 | 0.134 | 13.06 | 1.7250 | 0.6803 |
| 1.750 | 1.454 | 0.148 | 11.82 | 1.6604 | 0.7449 |
Nickel Alloy C276 Tube Equivalent Material Grades
| ALLOY | UNS | WERKSTOFF NR. | GOST | JIS | EN |
|---|---|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | ХН65МВУ | NW 0276 | NiMo16Cr15W |
Alloy C276 Tubing Mechanical Properties
| Tensile Stress | Yield Stress (0.2%Offset) | Elongation |
|---|---|---|
| Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Hastelloy C276 Pipe Physical Properties
| Density | 0.321 | lb/in³ |
|---|---|---|
| 8.89 | g/cm³ | |
| Specific Heat | 0.102 | Btu/lb•°F |
| 427 | J/kg•°C | |
| Melting Range | 2415-2500 | °F |
| 1325-1370 | °C | |
| Thermal Conductivity | 67.9 | Btu•in/ft²•h•°F |
| 427 | W/m•°C | |
| Young’s Modulus | 29.8 | 103 ksi |
| 205 | GPa | |
| Shear Modulus | 11.4 | 103 ksi |
| 79 | GPa | |
| Permeability | 1.0002 | 200 oersted (15.9 kA/m) |
| Poisson’s Ratio | 0.307 |
Alloy C276 Pipe Dimensions Chart
| ASTM B622 Hastelloy C22 Pipes O.D. mm |
Hastelloy Pipes WT mm |
in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Hastelloy C276 Seamless Pipe Sizes In Mm
| Hastelloy C276 Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
ASTM B619 UNS N10276 pipe Wall Thickness
| Types | Out diameter | Wall thickness | Length |
|---|---|---|---|
| NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
| Hastelloy C276 Seamless Pipe (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
| Hastelloy C276 Welded Pipe (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
Alloy C276 ERW Tube Size In Inch
| Wall Thickness | Alloy C276 Tube Sizes ( O.D.) |
| .010 | 1/16″ , 1/8″ , 3/16″ |
| .020 | 1/16″ , 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″ , 3/16″ |
| .028 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ , 1 1/2″ , 2″ |
| .035 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .049 | 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .065 | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 3/4″ , 2″ , 2 1/2″ , 3″ |
| .083 | 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 7/8″ , 2″ , 2 1/2″ ,3″ |
| .095 | 1/2″ , 5/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .109 | 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .120 | 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/4″ , 2 1/2″ , 3″ |
| .125 | 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 3″ , 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Frequently Asked Questions About Hastelloy C276 Pipe & Tubes
What are the specifications of Hastelloy C276 Pipe?
What are the common uses of Hastelloy C276?
How does Hastelloy C276 Pipe compare to other piping materials in corrosion resistance?
What is the maximum operating temperature of Hastelloy C276?
What sizes are available for Hastelloy C276 Pipe?
Recent Blogs
Cities We deliver:
Bhopal, Lahore, Milan, Hyderabad, Pune, Vadodara, Pimpri-Chinchwad, Aberdeen, Howrah, Jeddah, Riyadh, Bogota, Petaling Jaya, Dallas, Lagos, Nagpur, Houston, Brisbane, Busan, Karachi, Coimbatore, Seoul, Caracas, Atyrau, Perth, Haryana, Bengaluru, Jaipur, Al Jubail, Kuwait City, Al Khobar, Sydney, Ranchi, Chiyoda, Noida, Chandigarh, Secunderabad, Ahvaz, Port-of-Spain, Singapore, Gurgaon, Rajkot, Rio de Janeiro, Abu Dhabi, Hong Kong, Surat, Sharjah, Hanoi, London, Muscat, Jakarta, Navi Mumbai, Istanbul, Kolkata, Cairo, Mumbai, Santiago, Montreal, Faridabad, Vung Tau, Bangkok, Ankara, Ahmedabad, Granada, Melbourne, Tehran, Visakhapatnam, New Delhi, Los Angeles, Ho Chi Minh City, Edmonton, La Victoria, Baroda, Thane, Nashik, Kuala Lumpur, Moscow, Ernakulam, Courbevoie, Calgary, Geoje-si, Indore, New York, Mexico City, Gimhae-si, Ludhiana, Kanpur, Ulsan, Thiruvananthapuram, Manama, Doha, Chennai, Madrid, Jamshedpur, Algiers, Dammam
Countries We Deliver:
Iran, Venezuela, Saudi Arabia, Slovakia, Romania, Zimbabwe, Spain, Kazakhstan, Canada, Nigeria, Bulgaria, Afghanistan, Thailand, Bangladesh, Poland, United Kingdom, Bahrain, Jordan, Lithuania, Malaysia, France, Nigeria, Japan, Oman, Lebanon, Germany, Croatia, Australia, Puerto Rico, South Korea, Hungary, United States, Bhutan, Mexico, Mexico, Yemen, Singapore, New Zealand, Ecuador, Gabon, Qatar, Denmark, Iran, Netherlands, Norway, Sri Lanka, Belgium, Libya, Kuwait, Pakistan, Gambia, Sweden, Azerbaijan, Argentina, Chile, Ghana, United Arab Emirates, Finland, Nepal, Trinidad andamp; Tobago,Tunisia, Kenya, Peru, Austria, Russia, Ukraine, Italy, Belarus, Bolivia, Serbia, Poland, Mongolia, Turkey, Czech Republic, South Africa, Angola, India, Vietnam, Indonesia, Tibet, Ireland, Costa Rica, Greece, Colombia, Namibia, Iraq, Estonia, Israel, Macau, Philippines, Brazil, Switzerland, Algeria, Morocco, Chile, Portugal, Egypt, Taiwan, China, Hong Kong.
