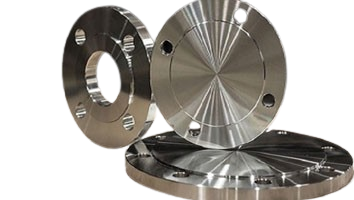

API 6A Type 6BX 2000 PSI Blind & Weld Neck Flanges
API 6A TYPE 6B 2000 PSI Blind Flanges | API 6A TYPE 6B 2000 PSI Weld Neck Flanges | API 6B 2000 PSI WNRF Flange | WNRF Flanges API 6B 2000 | API 2000 PSI Weld Neck Flanges
API 6A Type 6B 2000 PSI Weld Neck & Blind Flanges Manufacturer
Kalpataru Piping Solution is a leading manufacturer and supplier of API 6A Type 6B 2000 PSI blind flanges and weld neck flanges. Our comprehensive range includes both Type 6B and 6BX flanges with RTJ connections, designed for high-pressure applications. We offer flanges in various pressure ratings from 2000 PSI to 20000 PSI, meeting international quality standards like ASME, ANSI, and DIN.
Our API 6A flanges are crafted for durability and performance in demanding environments. They seal piping systems effectively, ideal for pressure testing and maintenance access. With customized dimensions and reliable packaging, we prioritize customer satisfaction and ensure prompt delivery. Choose Kalpataru Piping Solution for exceptional quality API flanges and superior service.

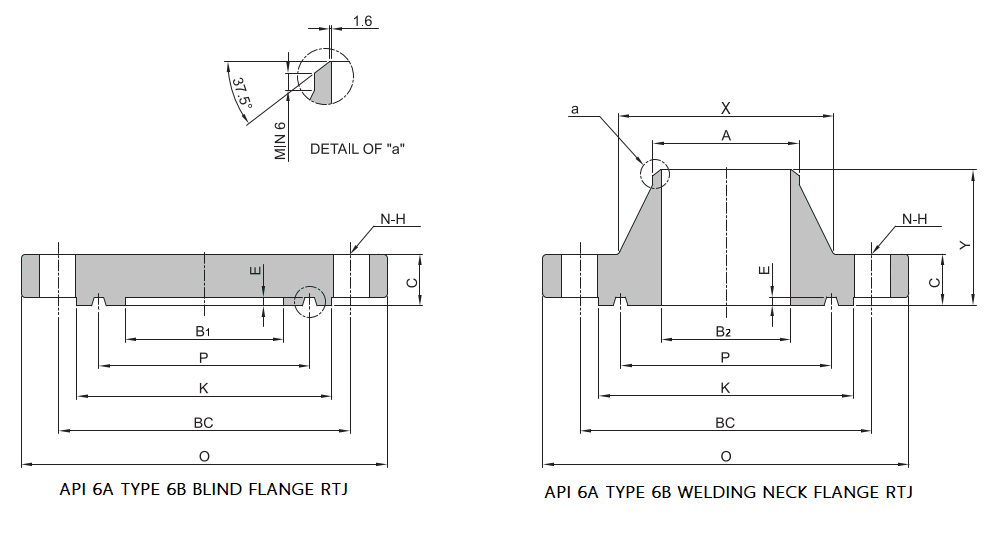

API 6A Type 6B 2000 PSI Blind/Welding Neck Flange Dimensions
|
Size |
B1 |
O |
C |
K |
P |
E |
X |
BC |
N |
H |
Y |
A |
B2 |
Ring Number R or RX |
|
2 1/16″ |
53.2 |
165 |
33.4 |
108 |
82.55 |
7.9 |
84 |
127 |
8 |
20 |
81 |
60.3 |
53.3 |
23 |
|
2 9/16″ |
65.9 |
190 |
36.6 |
127 |
101.60 |
7.9 |
100 |
149.2 |
8 |
23 |
88 |
73.0 |
63.5 |
26 |
|
3 1/8″ |
81.8 |
210 |
39.7 |
146 |
123.83 |
7.9 |
117 |
168.3 |
8 |
23 |
91 |
88.9 |
78.7 |
31 |
|
4 1/16″ |
108.7 |
275 |
46.1 |
175 |
149.23 |
7.9 |
152 |
215.9 |
8 |
26 |
110 |
114.3 |
103.1 |
37 |
|
5 1/8″ |
131.0 |
330 |
52.4 |
210 |
180.98 |
7.9 |
189 |
266.7 |
8 |
29 |
122 |
141.3 |
122.9 |
41 |
|
7 1/16″ |
181.0 |
355 |
55.6 |
241 |
211.15 |
7.9 |
222 |
292.1 |
12 |
29 |
126 |
168.3 |
147.1 |
45 |
|
9″ |
229.4 |
420 |
63.5 |
302 |
269.88 |
7.9 |
273 |
349.3 |
12 |
32 |
141 |
219.1 |
199.1 |
49 |
|
11″ |
280.2 |
510 |
71.5 |
356 |
323.85 |
7.9 |
343 |
431.8 |
16 |
35 |
160 |
273.0 |
248.4 |
53 |
|
13 5/8 “ |
346.9 |
560 |
74.7 |
413 |
381.00 |
7.9 |
400 |
489 |
20 |
35 |
– |
– |
– |
57 |
|
16 3/4″ |
426.2 |
685 |
84.2 |
508 |
469.90 |
7.9 |
495 |
603.2 |
20 |
42 |
– |
– |
– |
65 |
|
21 1/4″ |
540.5 |
815 |
98.5 |
635 |
584.20 |
9.7 |
610 |
723.9 |
24 |
45 |
– |
– |
– |
73 |
API 6A Type 6B 2000 PSI Blind & Weld Neck Flanges Pressure Rating
|
API Flange Type |
Pressure Rating |
Pressure Rating (MPa) |
Material |
Connection Type |
Standards |
|
API 6A Type 6B |
2000 PSI |
13.8 MPa |
Carbon Steel, Stainless Steel |
Weld Neck & Blind |
ASME, ANSI, DIN |
API 6A Type 6BX 2000 PSI Blind & Weld Neck Flanges Specification
| Size | Type | Material | Standard | Technical | Surfaces | Heat Treatment | Certificate | Package | Lead Time | Terms | Port of Loading |
| 1/2″ – 48″ | Blind & Weld Neck | Carbon Steel , Stainless Steel | API 6A, ASME, ANSI, DIN | API 6A Type 6BX, 2000 PSI | RTJ, Smooth | Normalized, Quenched, Tempered | EN 10204 3.1, 3.2 | Wooden Boxes, Cartons | 7-15 days | FOB, CIF, EXW | Any Port in India |
Applications of API 6A Type 6B 2000 PSI Blind & Weld Neck Flanges
The applications of API 6A Type 6B 2000 PSI Blind & Weld Neck Flanges include:
- Oil and gas industry
- Petrochemical plants
- Chemical processing
- Power generation
- Pipeline systems
- Offshore platforms
- Refineries
- Water treatment facilities
- Industrial manufacturing
- High-pressure fluid handling systems
FAQs
What is API 6A type 6B?
API 6A Type 6B refers to a specific type of flange designed for high-pressure applications in industries such as oil and gas, petrochemical, and power generation.
What does API stand for in flanges?
API stands for American Petroleum Institute in flanges.
What is API 6A standard?
API 6A is a standard set by the American Petroleum Institute (API) that specifies requirements and guidelines for the design, manufacturing, and testing of wellhead equipment used in the oil and gas industry.
