API 6A Flanges Manufacturer | API 15000 Blind & Weld Neck Flanges Supplier
Kalpataru Piping Solutions is a trusted supplier of high-quality API 6A Type 6BX 15000 PSI blind and weld neck flanges. Our flanges meet international standards and are designed for high-pressure applications.
We offer a range of API 6A flanges, including 15000 PSI Type 6BX blind and weld neck flanges, as well as Type 6B and 6BX with RTJ connections. Our flanges are available in various pressure ratings from 2000 PSI to 20000 PSI and come in different dimensions to meet your needs. Our weld neck flanges are perfect for high-pressure and high-temperature applications. They are welded at the neck, reducing turbulence and stress, making them ideal for critical uses.
At Kalpataru Piping Solutions, we ensure safe packaging and prompt delivery. Our flanges conform to ASME, ANSI, and DIN standards, guaranteeing top quality.Contact us for your API 6A Type 6BX 15000 PSI blind and weld neck flanges and experience superior service and reliability.

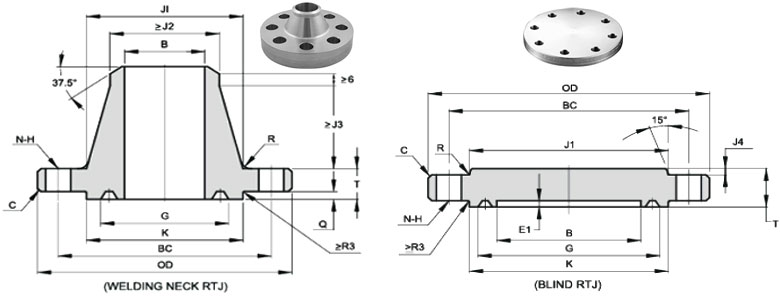

API 6A Type 6BX 15000 PSI Blind & Weld Neck Flanges Dimensions
| Size | B | OD | C | E1 | Q | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | BX |
| 1 13/16″ | 46.8 | 210 | 3 | – | 5.56 | 77.77 | 106 | 45.3 | 97.6 | 71.4 | 47.6 | – | 10 | 160.3 | 8 | 26 | 151 |
| 2 1/16″ | 53.2 | 220 | 3 | – | 5.95 | 86.23 | 114 | 50.8 | 111.1 | 82.5 | 54 | – | 10 | 174.6 | 8 | 26 | 152 |
| 2 9/16″ | 65.9 | 255 | 3 | – | 6.75 | 102.77 | 133 | 57.2 | 128.6 | 100 | 57.1 | – | 10 | 200 | 8 | 29 | 153 |
| 3 1/16″ | 78.6 | 290 | 3 | – | 7.54 | 119 | 154 | 64.3 | 154 | 122.2 | 63.5 | – | 10 | 230.2 | 8 | 32 | 154 |
| 4 1/16″ | 104 | 360 | 3 | – | 8.33 | 150.62 | 194 | 78.6 | 195.3 | 158.7 | 73 | – | 10 | 290.5 | 8 | 39 | 155 |
| 5 1/8″ | 131 | 420 | 3 | 9.5 | 9.53 | 176.66 | 225 | 98.5 | 244.5 | 200 | 81.8 | 6.4 | 16 | 342.9 | 12 | 42 | 169 |
| 7 1/16″ | 180.2 | 505 | 6 | 11.1 | 11.11 | 241.83 | 305 | 119.1 | 325.4 | 276.2 | 92.1 | 7.9 | 16 | 428.6 | 16 | 42 | 156 |
| 9 “ | 229.4 | 650 | 6 | 12.7 | 12.7 | 299.06 | 381 | 146.1 | 431.8 | 349.2 | 123.8 | 14.2 | 16 | 552.4 | 16 | 51 | 157 |
| 11″ | 280.2 | 815 | 6 | 14.3 | 14.29 | 357.23 | 454 | 187.4 | 584.2 | 427 | 235.7 | 12.7 | 16 | 711.2 | 20 | 54 | 158 |
| 13 5/8″ | 346.9 | 885 | 6 | 15.9 | 15.88 | 432.64 | 541 | 204.8 | 595.3 | 528.6 | 114.3 | 17.5 | 25 | 771.5 | 20 | 61 | 159 |
| 18 3/4″ | 477 | 1160 | 6 | 18.3 | 18.26 | 577.9 | 722 | 255.6 | 812.8 | 730.2 | 155.6 | 35.1 | 25 | 1016 | 20 | 80 | 164 |
API 6A Type 6BX 15000 PSI Blind & Weld Neck Flanges Pressure Rating
| Flange Type | Pressure Rating |
| Blind Flange, 6BX | 15000 PSI (103.5 MPa) |
| Weld Neck Flange, 6BX | 15000 PSI (103.5 MPa) |
API 6A Type 6BX 15000 PSI Blind & Weld Neck Flanges Specification
Dimensions : API 6A Type 6BX Welding Neck Flanges 15,000 PSI.
Size : 1-13/16”, 2-1/16”, 2-9/16”, 3-1/16”, 4-1/16”, 5-1/8”.
Pressure :15K, 15,000 PSI.
Delivery Condition : Annealed, Normalized, Stress Relieved, Quenched & Tempered.
Product Specification Level (PSL) : PSL 1, PSL 2, PSL 3.
Supplementary Requirement : NACE MR0175 / MR0103 ISO 3183 / NACE TM0284 YS – MIN 85,000, UTS – 1,10,000 WITHSTANDING 15,000 PRESSURE.
API 6A Type 6BX 15000 PSI Blind & Weld Neck Flanges Grades
|
GRADES |
|
A105 – A350 LF2 – A694 F65, A106B- A333 GR6 – A234 WPB – A420 WPL6 – A182 F304L |
|
A182 F316L – A182F44 A182 F44 , A312S31254, A182 F316L, A105.N, A105 HDG, A350 LF2, A106 Gr.B, A106 Gr.B HDG , A333 Gr.6, A234 WPB |
|
INCOLOY 825 |
|
A105, A105 GALV, A350 LF2, A182F304L, A182F316L, A403 WP316L, A182F321, A182F44, A182F5, CU90/10 UNS C70610 |
|
A105, A105 HDG A350 LF2, A182 F304/ 304L, A182F316/316L, A182F11, A105N, A106B, A234WPB, A333 |
|
A350LF2, F304L, F316L, F904L, A182F60, ALLOY20 A105N, A106B, A234WPB, |
|
A350LF2,A420WPL6, A182F304L-F316L,WP304L,HAST,C276 |
|
F304L/316L/317L/347H/321H F11/F22/ UNS08825 |
|
A 105, A105 GALVA, A350LF2, A333 Gr6, A234WPB-A420WPL6, F304L, WP304L |
|
A694 F52, A182F321, A182F316, A105.N, A312TP316L, A312 TP321, A182 F53 SUPER DUPLEX |
|
CuNi 9010 |
|
L80 |
|
MONEL 400, A182 F5, A182F316L, A182F304L, A105 |
|
F304L, WP304L, UNS NO 6625 |
|
A105, A105 GALV, A350LF2A182F304L, A182F316L |
|
A105, A182F316L |
|
A105,A182F304L, A182F316L,F321, |
|
A105, A182F304L, A182F316L |
FAQs
What is the full form of API grade?
The full form of API grade is American Petroleum Institute grade.
What is the difference between ASME B16 5 and API 6A?
ASME B16.5 is for general industrial flanges, while API 6A is for oil and gas wellhead equipment.
What are the pressure ratings for API 6A?
API 6A pressure ratings range from 2000 PSI (13.8 MPa) to 20000 PSI (138.0 MPa), depending on the specific flange type and size.
