API 6A Type 6BX 20000 PSI Blind & Weld Neck Flanges
Table of Content
- API 6A Flanges Manufacturer | API 20000 Blind & Weld Neck Flanges Supplier
- API 6A Type 6BX 20000 PSI Blind & Weld Neck Flanges Dimensions
- API 6A Type 6BX 20000 PSI Blind & Weld Neck Flanges Specification
- Advantages of API 6A Type 6BX 20000 PSI Blind & Weld Neck Flanges
- API 6A Type 6BX 20000 PSI Blind & Weld Neck Flanges are crucial in various industries:
- FAQS
API 6A TYPE 6B 20000 PSI Blind Flanges | API 20000 PSI Blind Flange | API 6A 20000 PSI Stainless Steel Flange | API 6A Flanges | API 20000 Flanges | API 6A 20000 PSI Steel Flange | API 6A 20000 PSI SS Flanges | API 6A Type 6BX 20000 PSI Blind Flanges | API 6A Type 6Bx Flanges | API 6A Type 6BX 20000 Flanges | API 6bx Flanges | API 6A Type 6Bx Flanges | API 20000 flange dimensions | API 6A Flange Dimensions | API Flanges | Stainless Steel Blind Flanges | Blind Flanges Manufacturer | Blind Flanges Supplier | Stainless Blind Flanges | API 6A Type 6Bx Blind Flanges | 20000 PSI (13.8MPA) TYPE 6BX BLIND API 6A FLANGE | API Flanges | API Flanges Dimensions | API 20000 PSI Flanges | API 6A TYPE 6B 20000 PSI Weld Neck Flanges | API 6A TYPE 6B 20000 PSI | API 6A 20000 PSI WNRF Flange | WNFF API 20000 PSI | API 20000 PSI Weld Neck Flange | API 6A 20000 PSI Weld Neck Flange | API 6A TYPE 6B 20000 PSI Weld Neck Dimensions | Weld Neck Flanges Manufacturer | WNRF Flanges | Weld Neck Flanges
API 6A Flanges Manufacturer | API 20000 Blind & Weld Neck Flanges Supplier
Kalpataru Piping Solutions, a leading manufacturer of premium API 6A Type 6BX 20000 PSI weld neck flanges, understands the critical demands of high-pressure applications. Our meticulously crafted flanges deliver exceptional performance through superior strength, enhanced safety via radiographic weld inspection, minimized turbulence for flow efficiency, and reduced stress concentration for long-term durability.
We offer unwavering expertise, exceptional customization, reliable delivery, and unmatched customer service to be your one-stop shop for high-pressure flange solutions. Contact us for API 20000 blind weld neck flanges in high quality, reliability, and exceptional service.

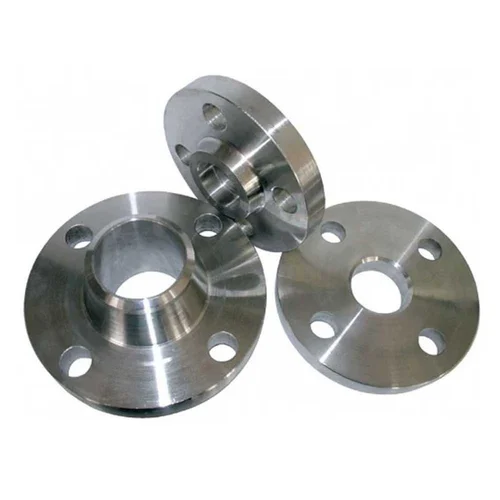

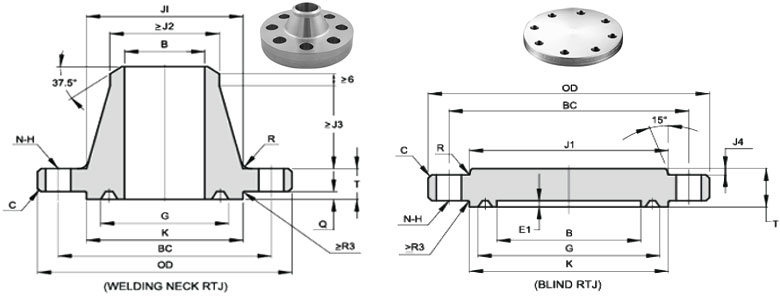

API 6A Type 6BX 20000 PSI Blind & Weld Neck Flanges Dimensions
| Size | B | OD | C | E1 | Q | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | BX |
| 1 13/16″ | 46.8 | 210 | 3 | – | 5.56 | 77.77 | 106 | 45.3 | 97.6 | 71.4 | 47.6 | – | 10 | 160.3 | 8 | 26 | 151 |
| 2 1/16″ | 53.2 | 220 | 3 | – | 5.95 | 86.23 | 114 | 50.8 | 111.1 | 82.5 | 54 | – | 10 | 174.6 | 8 | 26 | 152 |
| 2 9/16″ | 65.9 | 255 | 3 | – | 6.75 | 102.77 | 133 | 57.2 | 128.6 | 100 | 57.1 | – | 10 | 200 | 8 | 29 | 153 |
| 3 1/16″ | 78.6 | 290 | 3 | – | 7.54 | 119 | 154 | 64.3 | 154 | 122.2 | 63.5 | – | 10 | 230.2 | 8 | 32 | 154 |
| 4 1/16″ | 104 | 360 | 3 | – | 8.33 | 150.62 | 194 | 78.6 | 195.3 | 158.7 | 73 | – | 10 | 290.5 | 8 | 39 | 155 |
| 5 1/8″ | 131 | 420 | 3 | 9.5 | 9.53 | 176.66 | 225 | 98.5 | 244.5 | 200 | 81.8 | 6.4 | 16 | 342.9 | 12 | 42 | 169 |
| 7 1/16″ | 180.2 | 505 | 6 | 11.1 | 11.11 | 241.83 | 305 | 119.1 | 325.4 | 276.2 | 92.1 | 7.9 | 16 | 428.6 | 16 | 42 | 156 |
| 9 “ | 229.4 | 650 | 6 | 12.7 | 12.7 | 299.06 | 381 | 146.1 | 431.8 | 349.2 | 123.8 | 14.2 | 16 | 552.4 | 16 | 51 | 157 |
| 11″ | 280.2 | 815 | 6 | 14.3 | 14.29 | 357.23 | 454 | 187.4 | 584.2 | 427 | 235.7 | 12.7 | 16 | 711.2 | 20 | 54 | 158 |
| 13 5/8″ | 346.9 | 885 | 6 | 15.9 | 15.88 | 432.64 | 541 | 204.8 | 595.3 | 528.6 | 114.3 | 17.5 | 25 | 771.5 | 20 | 61 | 159 |
| 18 3/4″ | 477 | 1160 | 6 | 18.3 | 18.26 | 577.9 | 722 | 255.6 | 812.8 | 730.2 | 155.6 | 35.1 | 25 | 1016 | 20 | 80 | 164 |
- RING NUMBER BX,
- C should be the max value
- Tolerance and Ring Gasket according to API 6A-20TH
API 6A Type 6BX 20000 PSI Blind & Weld Neck Flanges Specification
|
Specification |
Description |
|
Standard |
API 6A |
|
Flange Type |
Blind Flange, Weld Neck Flange |
|
Pressure Rating |
20000 PSI |
|
Materials Available |
Carbon Steel, Stainless Steel (304, 316, 310, 410), Duplex Stainless Steel (2205, 2507), Monel (400, 500), Hastelloy |
|
Connection Type |
Raised Face (RF), Ring Type Joint (RTJ) |
|
Sizes Available |
1/2″ to 48″ |
|
Standards |
ANSI, ASME, DIN, JIS, API |
|
Applications |
High-pressure and high-temperature industrial applications, oil and gas industry, petrochemical industry, etc. |
Advantages of API 6A Type 6BX 20000 PSI Blind & Weld Neck Flanges
Certainly, here’s a condensed version of the advantages of using API 6A Type 6BX 20000 PSI Weld Neck Flanges:
-
- Strength: Weld neck flanges have a strong, tapered hub for durable connections, ensuring resilience under high pressure and temperature.
- Versatility: They come in various sizes, fitting different pipe diameters and materials like stainless steel and carbon steel.
- Leak-Free: Welding creates secure, leak-proof connections, enhancing safety and system efficiency.
- Ease of Installation: Simple installation and maintenance, requiring periodic checks for optimal performance.
API 6A Type 6BX 20000 PSI Blind & Weld Neck Flanges are crucial in various industries
- Oil & Gas: Connect high-pressure pipelines and wellheads securely.
- Petrochemicals: Handle corrosive substances safely in pipelines.
- Offshore: Ensure durable connections in harsh marine environments.
- Power Generation: Connect steam lines and fuel supply systems in power plants.
- Chemical Processing: Safely handle acids and chemicals in pipelines.
- Manufacturing: Facilitate secure connections in industrial processes.
- Pipeline Infrastructure: Maintain integrity in oil, gas, and water transmission lines.
- Marine Applications: Vital for shipbuilding and offshore rigs, handling fuels and fluids
FAQs
What is the API standard used for?
The API (American Petroleum Institute) standard is used for regulating and standardizing equipment, processes, and practices in the oil and gas industry to ensure safety, reliability, and efficiency.
What is the temperature range for API 6A?
The temperature range for API 6A flanges typically spans from -75°F to 650°F (-59°C to 343°C).
What is API 6B?
API 6B is a specification for flanges and fittings used in the oil and gas industry.
