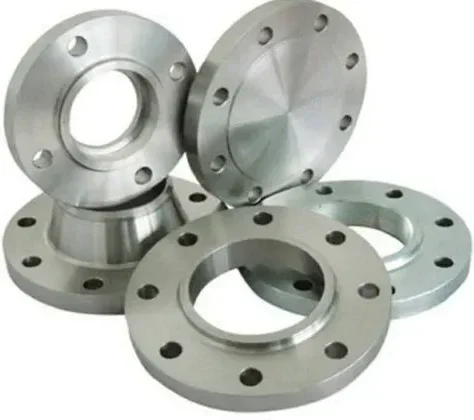

API 6A Type 6BX 5000 PSI Blind & Weld Neck Flanges
Table of Content
- API 6A Flanges Manufacturer | API 5000 Blind & Weld Neck Flanges
- What is 6B API 5000 PSI Flanges?
- API 6A Type 6BX 5000 PSI Blind & Weld Neck Flanges Dimension
- Specification of API 6A Type 6BX 5000 PSI Blind & Weld Neck Flanges
- API 6A Type 6BX 5000 PSI Blind & Weld Neck Flanges Equivalent Grade
- Chemical Composition of API 6A Type 6BX 5000 PSI Weld Neck & Blind Flanges
- API 6A Type 6BX 5000 PSI Weld Neck & Blind Flanges Mechanical Properties
- FAQS
API 6A TYPE 6B 5000 PSI Blind Flanges | API 5000 PSI Flanges | API 6A TYPE 6B 5000 PSI Weld Neck Flanges | API 6A 5000 PSI WNRF Flange | WNFF API 5000 PSI | API 5000 PSI Weld Neck Flange | API 6A TYPE 6B 5000 PSI Weld Neck Dimensions| Weld Neck Flanges Manufacturer | WNRF Flanges | Weld Neck Flanges
API 6A Flanges Manufacturer | API 5000 Blind & Weld Neck Flanges
Kalpataru Piping Solution is a leading manufacturer and supplier of API 6A Type 6B 5000 PSI Blind & weld neck Flanges, designed for high-pressure applications in both hot and cold environments. These steel flanges are circumferentially welded into systems, allowing easy inspection of the weld area through radiography. Their design reduces turbulence and erosion within pipelines, ensuring long-term integrity and minimizing stress concentration.
Our API 6A Type 6B 5000 PSI Blind & weld neck Flanges are machined to match pipe diameters, offering a seamless fit and optimal performance in critical applications.Contact us for more information and your unique needs.
What is 6B API 5000 PSI Flanges?
Kalpataru Piping Solutions are expert in manufacturing of API 6A Type 6BX 5000 PSI flanges, suitable for high-pressure applications. These flanges undergo rigorous testing and certifications for quality assurance, including Raw Materials Certificate & 100% Radiography Test Report. They are resistant to both cryogenic and high temperatures, making them ideal for industrial use in areas like Subsea Wellhead, Oil Exploration, and High-pressure drilling projects
API 6A Type 6BX 5000 PSI Blind & Weld Neck Flanges Dimension
|
Size |
O |
C |
K |
P |
E |
X |
BC |
N |
H |
Y |
A |
B2 |
Ring Number R or RX |
|
2 1/16″ |
215 |
46.1 |
124 |
95.25 |
7.9 |
104.8 |
165.1 |
8 |
26 |
109.6 |
60.3 |
43.7 |
24 |
|
2 9/16″ |
245 |
49.3 |
137 |
107.95 |
7.9 |
123.8 |
190.5 |
8 |
29 |
112.7 |
73 |
54.9 |
27 |
|
3 1/8″ |
265 |
55.6 |
168 |
136.53 |
7.9 |
133.3 |
203.2 |
8 |
32 |
125.4 |
88.9 |
67.5 |
35 |
|
4 1/16″ |
310 |
62 |
194 |
161.93 |
7.9 |
161.9 |
241.3 |
8 |
35 |
131.8 |
114.3 |
88.1 |
39 |
|
5 1/8″ |
375 |
81 |
229 |
193.68 |
7.9 |
196.8 |
292.1 |
8 |
42 |
163.5 |
141.3 |
110.3 |
44 |
|
7 1/16″ |
395 |
92.1 |
248 |
211.15 |
9.7 |
228.6 |
317.5 |
12 |
39 |
181 |
168.3 |
132.6 |
46 |
|
9″ |
485 |
103.2 |
318 |
269.88 |
11.2 |
292.1 |
393.7 |
12 |
45 |
223.8 |
219.1 |
173.8 |
50 |
|
11″ |
585 |
119.1 |
371 |
323.85 |
11.2 |
368.3 |
482.6 |
12 |
51 |
265.1 |
273 |
216.7 |
54 |
Specification of API 6A Type 6BX 5000 PSI Blind & Weld Neck Flanges
|
Dimensions |
API 6A Type 6B Welding Neck 5,000 PSI. |
|
Size |
2-1/16”, 2-9/16”, 3-1/8”, 4-1/16”, 5-1/8”. |
|
Pressure |
5K, 5,000 PSI |
|
Delivery Condition |
Annealed, Normalized, Stress Relieved, Quenched & Tempered. |
|
Product Specification Level (PSL) |
PSL 1, PSL 2, PSL 3. |
|
Supplementary Requirement |
NACE MR0175 / MR0103 ISO 3183 / NACE TM0284 YS – MIN 85,000, UTS – 1,10,000 WITHSTANDING 15,000 PRESSURE. |
API 6A Type 6BX 5000 PSI Blind & Weld Neck Flanges Equivalent Grade
|
Equivalent Grades |
Material |
|
ASTM A105 |
Carbon Steel |
|
ASTM A182 F316 |
Stainless Steel |
|
ASTM A182 F22 |
Alloy Steel |
|
ASTM A350 LF2 |
Low-Temperature Steel |
|
ASTM A694 F60 |
High-Yield Carbon Steel |
|
ASTM A182 F51 |
Duplex Steel |
Chemical Composition of API 6A Type 6BX 5000 PSI Weld Neck & Blind Flanges
|
Element |
Composition (%) |
|
Carbon (C) |
0.28 – 0.33 |
|
Manganese (Mn) |
0.40 – 0.60 |
|
Phosphorus (P) |
0.035 max |
|
Sulfur (S) |
0.040 max |
|
Silicon (Si) |
0.15 – 0.35 |
|
Chromium (Cr) |
0.80 – 1.10 |
|
Molybdenum (Mo) |
0.15 – 0.25 |
|
Nickel (Ni) |
0.40 – 0.70 |
|
Copper (Cu) |
0.35 max |
API 6A Type 6BX 5000 PSI Weld Neck & Blind Flanges Mechanical Properties
| Property | Value |
| Density | High |
| Melting Point | Typically above 1500°C |
| Yield Strength | High, 0.2% Offset |
| Tensile Strength | High |
| Elongation | Moderate to High |
FAQs
What does API stand for in flanges?
API stands for the American Petroleum Institute in the context of flanges.
What is Type B flange?
Type B flanges are defined by industry standards like API or ASME, classified by pressure ratings and sealing mechanisms. They’re used in high-pressure applications, with subtypes such as 6B or 6BX for specific pressure ranges and sealing needs.
What is the ANSI equivalent of API 5000?
The ANSI equivalent of API 5000 is typically ANSI Class 3000.
